Periodic maintenance and adjustment
7-33
7
EAU24361
Front wheel
EAUN0582
To remove the front wheel
EWA10822
To avoid injury, securely support the
vehicle so there is no danger of it
falling over.
1. Loosen the front wheel axle nut
and the brake caliper bolts.
2. Lift the front wheel off the ground
according to the procedure in the
previous section “Supporting the
motorcycle”.
3. Remove the brake hose holder by
removing the bolt.
4. Remove the brake caliper by re-
moving the bolts.
5. Remove the front wheel axle nut.
6. Pull the wheel axle out, and then
remove the wheel. NOTICE: Do
not apply the brake after the
brake calipers have been re-
moved, otherwise the brake
pads will be forced shut.
[ECA11052]
To install the front wheel
1. Lift the wheel up between the fork
legs.
2. Insert the wheel axle and install
the wheel axle nut.
3. Lower the front wheel so that it is
on the ground.
4. Install the brake caliper by install-
ing the bolts.
Make sure that there is enough space
between the brake pads before install-
ing the brake caliper onto the brake
disc.
5. Install the brake hose holder by in-
stalling the bolt.
6. Tighten the wheel axle and brake
caliper bolts to the specified
torques.
7. Push down hard on the handlebar
several times to check for proper
fork operation.

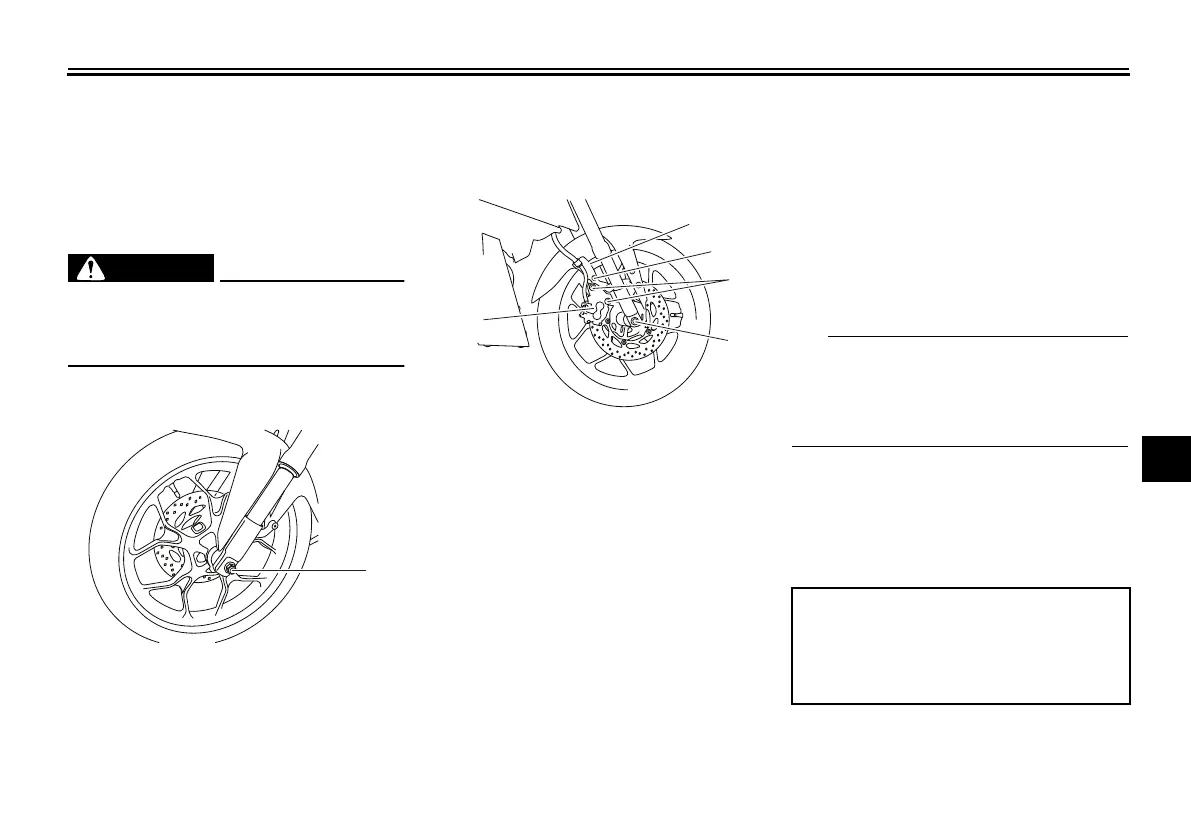

1. Axle nut
1. Brake hose holder
2. Bolt
3. Brake caliper
4. Brake caliper bolt
5. Wheel axle
Tightening torques:
Wheel axle:
40 N·m (4.0 kgf·m, 30 lb·ft)
Brake caliper bolt:
35 N·m (3.5 kgf·m, 25 lb·ft)
