Replacing the fuses
The fuse box is located under the rider
seat.
If a fuse is blown, replace it as follows.
1. Turn the main switch off and turn
off the electrical circuit in ques-
tion.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperage
rating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a fire.
[EWA15132]
3. Turn the main switch on and turn
on the electrical circuit in question
to check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAUN2261
Vehicle lights
This model is equipped with LED lights
for headlights, auxiliary lights and
brake/tail light. If a light does not come
on, check the fuse and then have a
Yamaha dealer check the vehicle.
NOTICE
ECA16581
Do not affix any type of tinted film or
stickers to the headlight lens.

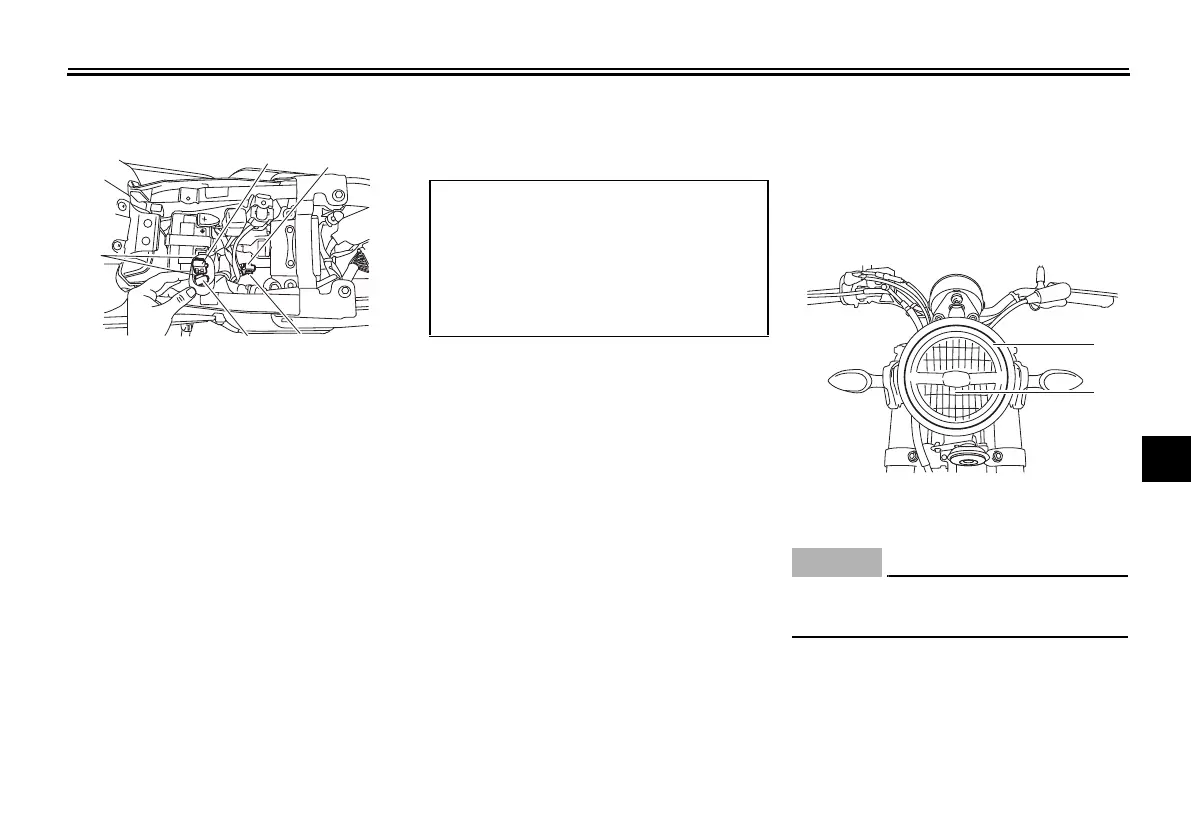

1. Main fuse
2. Sub fuse
3. Terminal fuse 1
4. Spare fuse
4
1
3
2
4
Specified fuses:
Main fuse:
15.0 A
Sub fuse:
7.5 A
Terminal fuse 1:
2.0 A
1. Auxiliary light
2. Headlight
1
2
