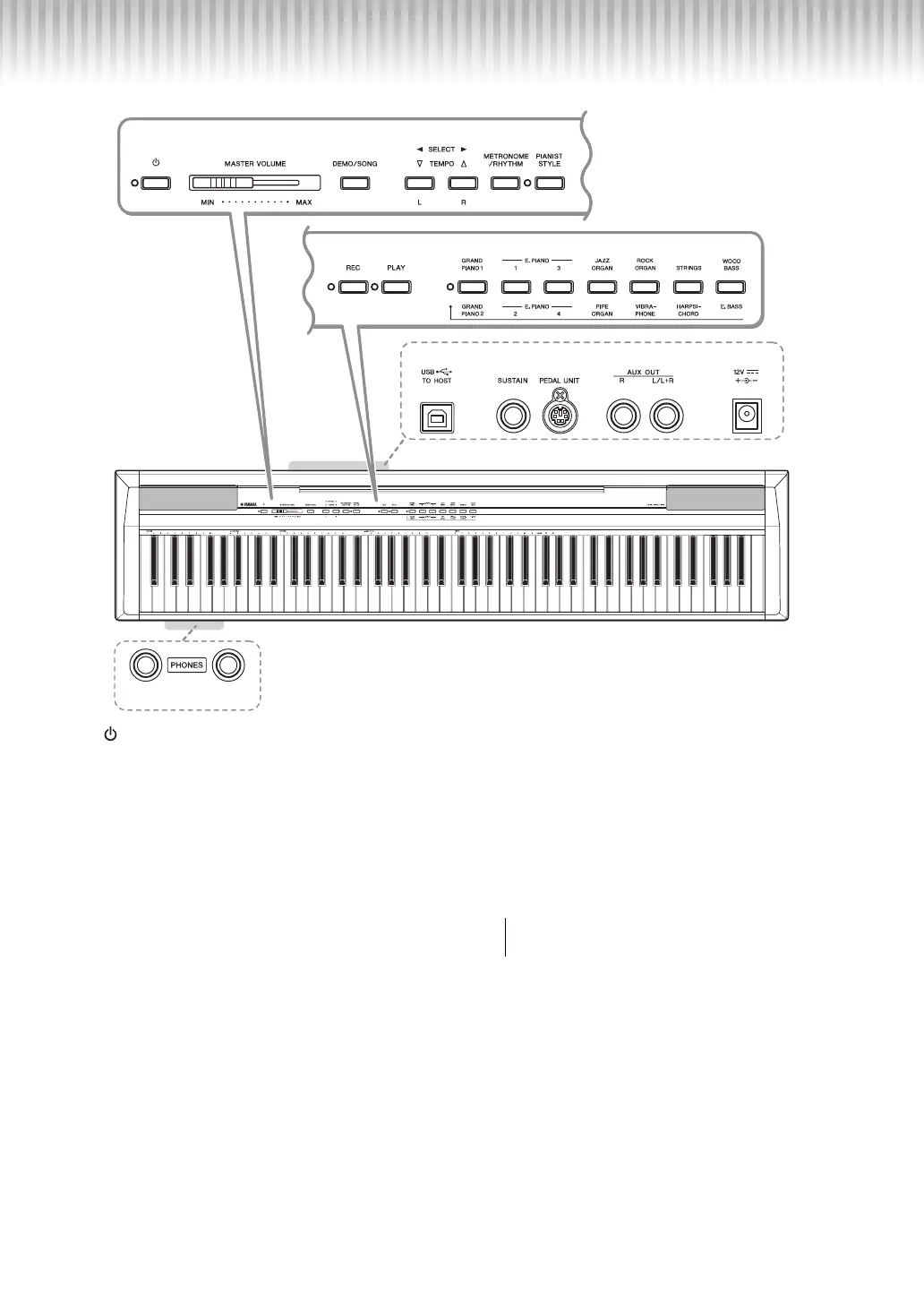

Panel Controls and Terminals
q [ ] (Standby/On) switch ....................... page 7
For turning the power on or setting to standby.
w [MASTER VOLUME] slider..................... page 7
For adjusting the volume of the entire sound.
e [DEMO/SONG] button ...........................page 14
For playing the Demo Songs and the Preset Songs.
r TEMPO [][]/SELECT [][]buttons
................................................................page 14
For selecting a Song during playback, adjusting the
tempo, and selecting the Song part for recording
and playback.
t [METRONOME/RHYTHM] button..........page 15
For starting or stopping the metronome or rhythm.
y [PIANIST STYLE] button .......................page 10
For using the Pianist Styles.
u [REC] button ..........................................page 16
For recording your keyboard performance.
i [PLAY] button ........................................page 16
For playing back the recorded performance.
o Voice buttons.......................................... page 9
For switching the Voice between those printed
above and below each button.
For selecting a Voice or two Voices played simulta-
neously, such as Piano and Organ.
!0 [USB TO HOST] terminal
For connecting to a computer, allowing you trans-
fer the User Song data as SMF, and transmit MIDI
messages between both devices. For details, refer
to the “Computer-related Operations” and the
“MIDI Reference.”
!1 [SUSTAIN] jack........................................page 8
For connecting the included footswitch, an
optional footswitch and foot pedal.
!2 [PEDAL UNIT] jack ..................................page 8
For connecting an optional pedal unit.
!3 AUX OUT [L/L+R][R] jacks .....................page 7
For connecting external audio equipment.
!4 DC IN jack ................................................page 7
For connecting the power adaptor.
!5 [PHONES] jacks ......................................page 7
For connecting a set of standard stereo head-
phones.
!3 !4!2!1!0
!5
qwerty
ui o
C0 C1 C2 C3 C4 C5 C6 C7 A-1
Built-in Speakers
Speakers are built into the instrument at the bottom. Though you can
enjoy playing the instrument even when putting it on a desk or table,
we recommend that you use an optional keyboard stand for better
sound.
Shows the jacks and terminals as seen when viewed from the rear of the instrument.
• Use an AB type USB cable of less than 3 meters. USB
3.0 cables cannot be used.
