Instrument and control functions
4-3
4
EAUT1822

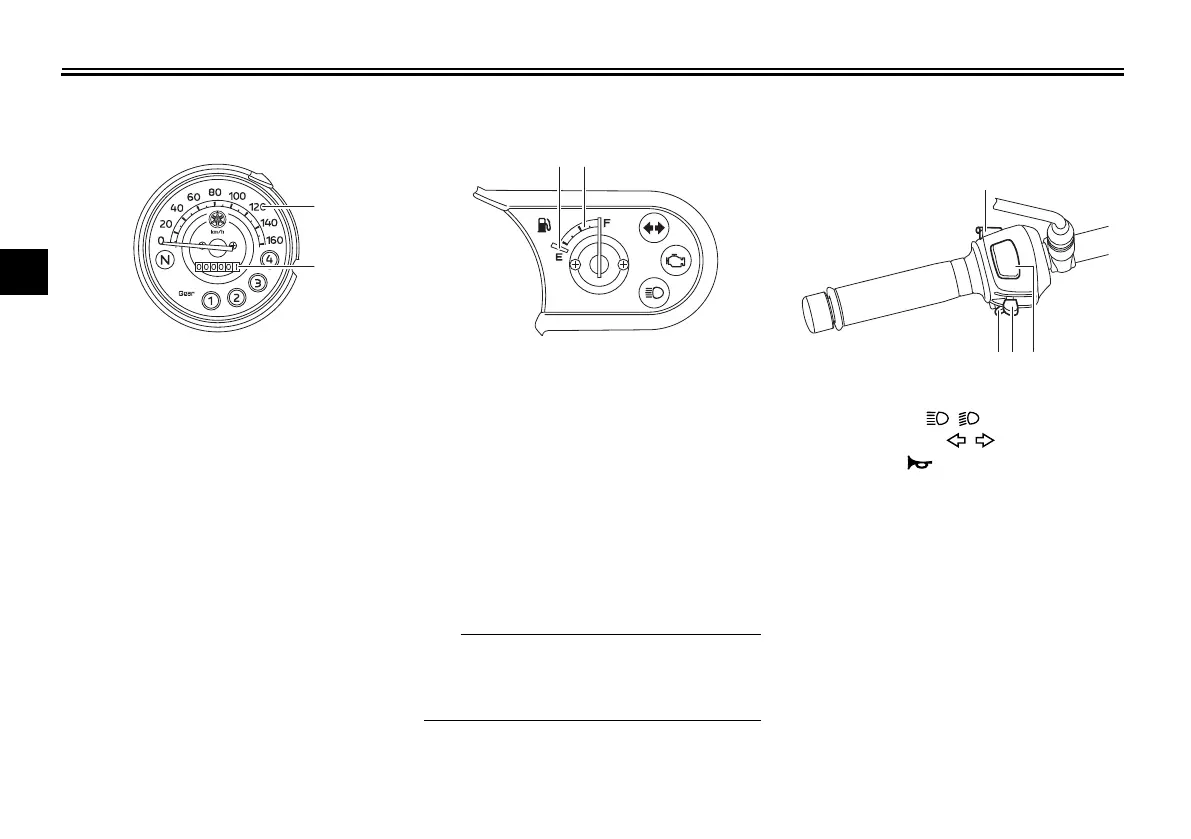

Speedometer unit
The speedometer unit is equipped with
a speedometer and an odometer. The
speedometer shows the riding speed.
The odometer shows the total distance
traveled.
EAU37053
Fuel gauge
The fuel gauge indicates the amount of
fuel in the fuel tank. The needle moves
towards “E” (Empty) as the fuel level
decreases. When the needle reaches
the red zone, approximately 0.5 L (0.15
US gal, 0.12 Imp.gal) remain in the fuel
tank. If this occurs, refuel as soon as
possible.
TIP
The main switch must be turned to
“ON” for the fuel gauge to display an
accurate fuel level reading.
EAU1234T
Handlebar switches
Left
1. Odometer
2. Speedometer
2
1
1. Red zone
2. Fuel gauge
12
1. Pass switch “PASS”
2. Dimmer switch “ / ”
3. Turn signal switch “ / ”
4. Horn switch “ ”
1
43 2
