RX-V4600/DSP-AX4600
15
RX-V4600/
DSP-AX4600
Amp Unit
アンプユニット
Cloth
布
CONTROL P.C.B.
MF127500
CB506
CB553
OPERATION (5) P.C.B.

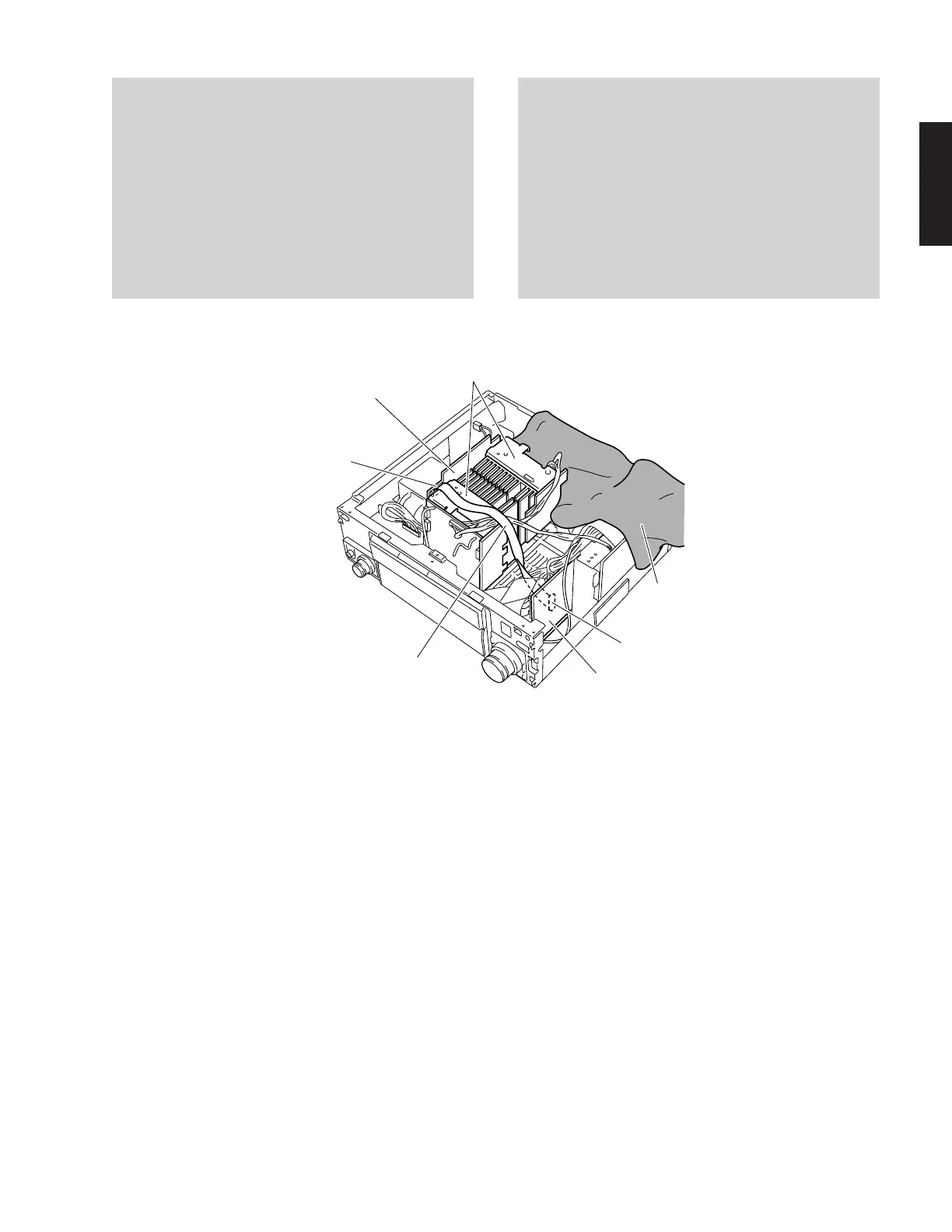

Fig. C
アンプユニットをチェックする場合には
アンプユニットはヒートシンクといっしょに、アート
ベースの上に立ててチェックします。(Fig.C)
外したケーブル(コネクター)をすべて接続します。
ただし次の区間は、サービス用延長ケーブルを使用し
てください。
CONTROLP.C.B.CB506−OPERATION(5)P.C.B.CB553:
MF127500(27P500mm)
フラットケーブルを接続する際、極性に注意してくだ
さい。
When checking the Amp Unit:
Put the Amp Unit together with the heat sink upright
on the art base and check them. (Fig. C)
Reconnect all cables (connectors) that have been
disconnected.
Be sure to use the extension cable for servicing for the
following section.
CONTROL P.C.B. CB506 – OPERATION (5) P.C.B. CB553:
MF127500 (27P 500mm)
When connecting the flat cable, use care for the
polarity.
