Yamaha TSX-100 Service Manual

ABCDEFGH I J
1
2
3
4
5
6
7
TSX-100
27
iPod IN
SPEAKER OUT
USB IN
MAIN (4)
MAIN (1)
U model
SPEAKERS L
ASS'Y
SPEAKERS R
ASS'Y
B model
U, A, J models
iPod
XM
MAIN (7)
MAIN (5)
MAIN (9)
MAIN (10)
MAIN (8)
MAIN (3)
MAIN (6)
USB
to MAIN (1)_CN17
Page 28
B6
to MAIN (1)_CN18
Page 28
B4
B6
to MAIN (1)_CN15
Page 28
F7
to MAIN (1)_CN17
Page 28
to MAIN (1)_BN82
Page 28
J2
to MAIN (1)_BN84
Page 28
J2

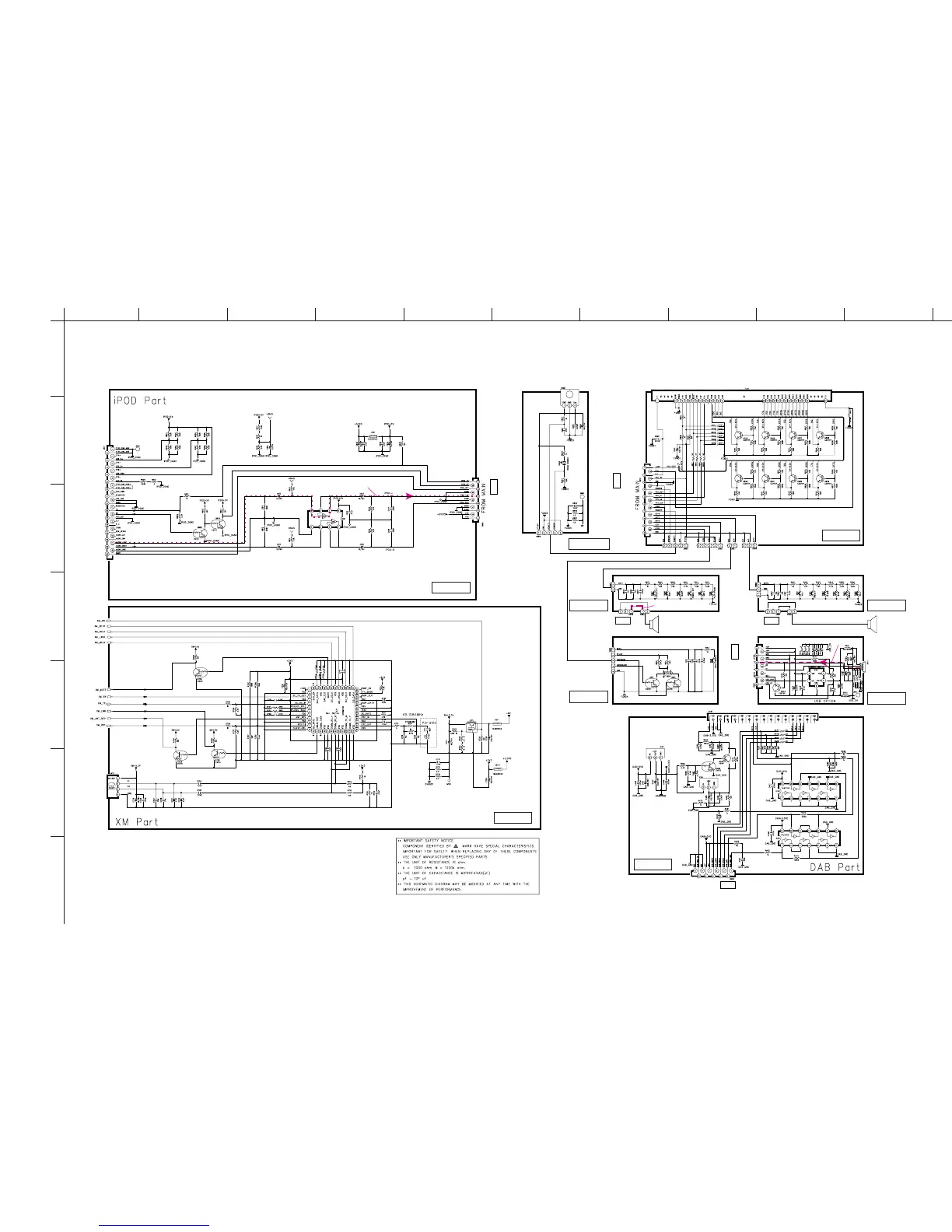

■ SCHEMATIC DIAGRAMS
MAIN 1/4
Note) The electrical parts available as servicing parts are those in the replacement parts list only.
When replacement of any electrical part other than those in the list is necessary, replace the P.C.B.
assembly which includes that part.
注） 電気部品リストに記載されている電気部品のみ、サービス部品として供給できます。
電気部品リストに記載されていない電気部品の交換が必要な場合は、その電気部品を搭載している「P.C.B.ASSY」を交換
してください。
★ Components having special characteristics are marked s and must be replaced with parts
having specifications equal to those originally installed.
★ Schematic diagram is subject to change without notice.
 s

 

Yamaha TSX-100 Specifications

General

Brand	Yamaha
Model	TSX-100
Category	Stereo System
Language	English
