Yamaha TSX-100 Service Manual

2
ABCDEFGH I J
1
3
4
5
7
TSX-100
6
28
USB IN
iPod IN
PORTABLE IN
ANALOG IN
AD IN
CD/USB IN
MIX IN
SPEAKER OUT
MAIN (1)
MICROPROCESSOR
BAT1: 30H3A3H (B, G models)
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
to MAIN (3)_BN18
to AM/FM TUNER MODULE
PHONES
PORTABLE
Page 27
G3
to MAIN (4)_BN16
(U, A, J models)
Page 27
E3
to MAIN (6)_BN17
(R, B, G models)
Page 27
I5
to MAIN (2)_BN42
Page 29
G7
to MAIN (2)_BN11
Page 29 E2
to MAIN (7)_BN15
(B model)
Page 27
H7
to MAIN (2)_BN35
Page 29
B3
to MAIN (9)_CN84
Page 27
I4
to MAIN (8)_CN82
Page 27
G4
to SMPS_CN93
Page 31
H3
to MAIN (1)_CN97
Page 30
I3
to MAIN (1)_CN98
Page 30
I4

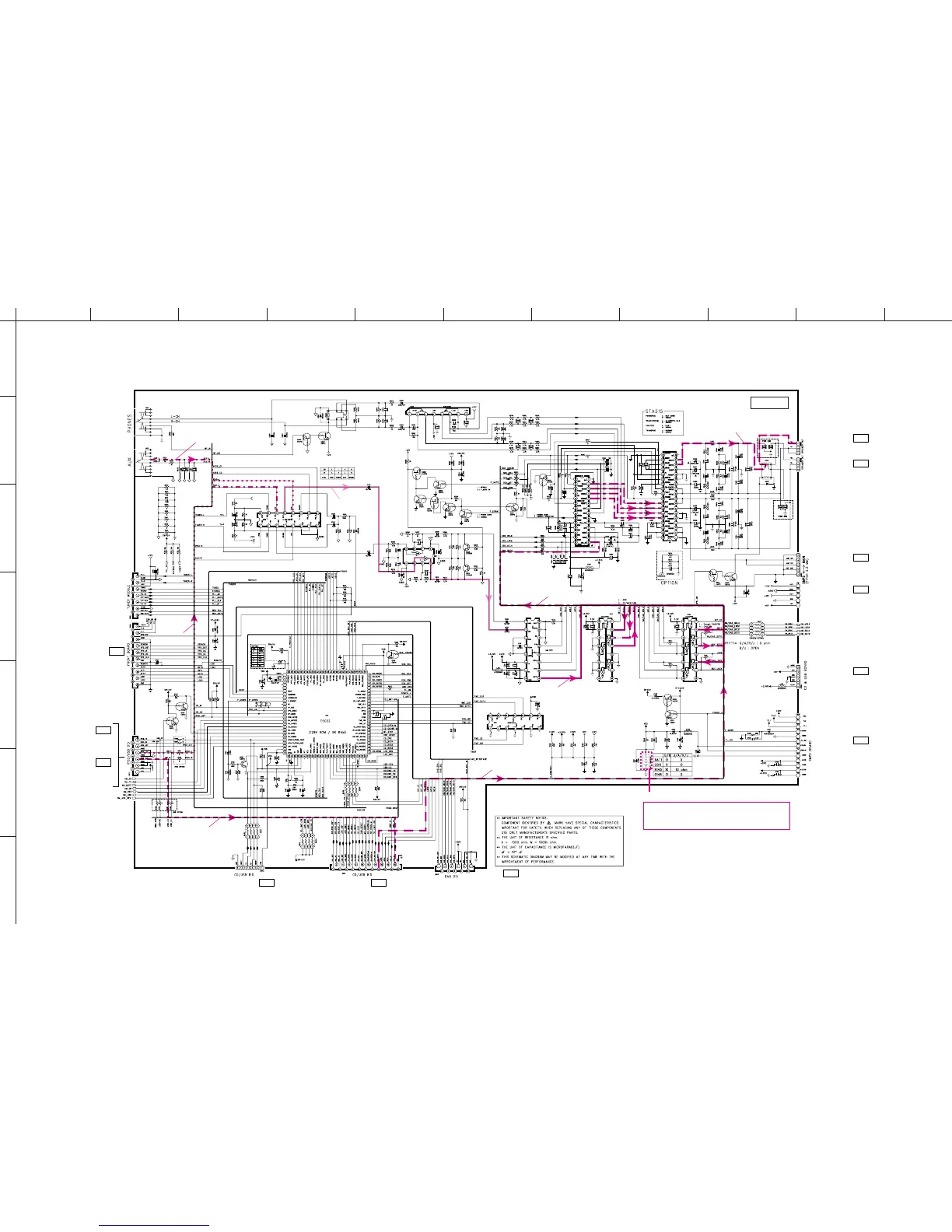

MAIN 2/4
★ Components having special characteristics are marked s and must be replaced with parts
having specifications equal to those originally installed.
★ Schematic diagram is subject to change without notice.
 s

 
