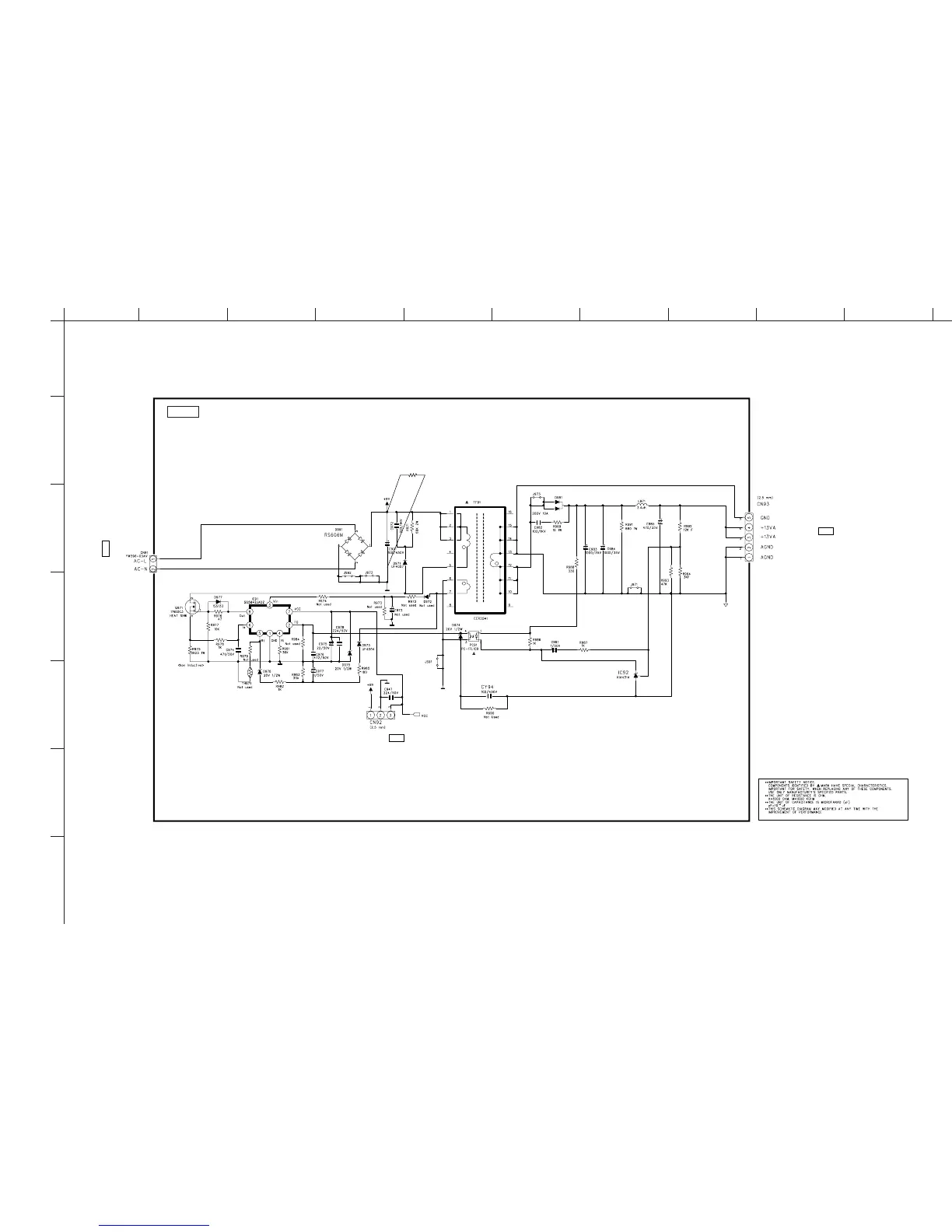

Yamaha TSX-100 - SMPS Schematic

ABCDEFGH I J
1
2
3
4
5
6
7
TSX-100
31
SMPS
5 k-ohms
10 W
to MAIN (1)_BN92
Page 30
E2
to MAIN (1)_BN91
Page 30
D3
to MAIN (1)_BN93
Page 28
J3
SMPS
★ Components having special characteristics are marked s and must be replaced with parts
having specifications equal to those originally installed.
★ Schematic diagram is subject to change without notice.
 s

 
安全対策
 



Safety Measures
• Some internal parts in this product contain high voltages and are dangerous. Be sure to take safety measures during servicing, such as
wearing insulating gloves.
• C971 on the SMPS (2) P.C.B. is dangerous even after the power is turned off because an electric charge remains and a high voltage
continues to exist there.
Before starting any repair work, perform discharge by connecting a discharge resistor (5k-ohms/10 W) between terminals of the capaci-
tor. The time required for discharging is about 30 seconds.
After the repair work, also perform discharge in the same manner.
