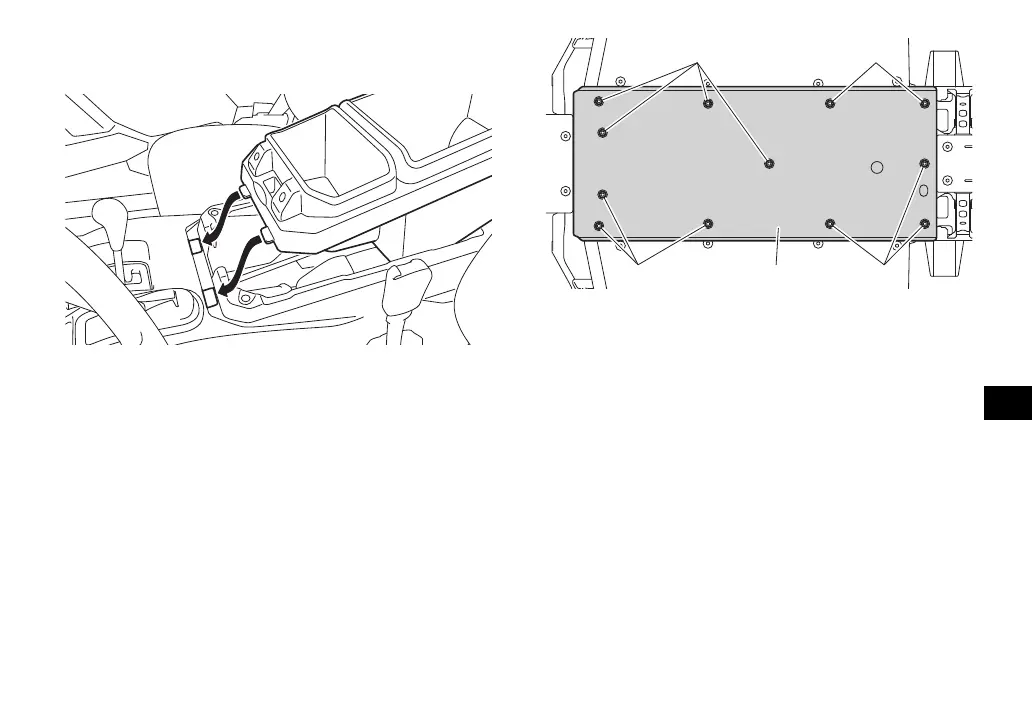

16. Install the storage compartment as
shown.
EBU36101
Cleaning the air filter case/air duct
check hose
There is a check hose at the bottom of the air
filter case and at the bottom of the air duct. To
access the check hoses, remove the center
bottom panel by removing the bolts.
If dust or water collects in a check hose, emp-
ty the hose and clean the air filter element and
air filter case.
1. Center bottom panel
2. Bolt
