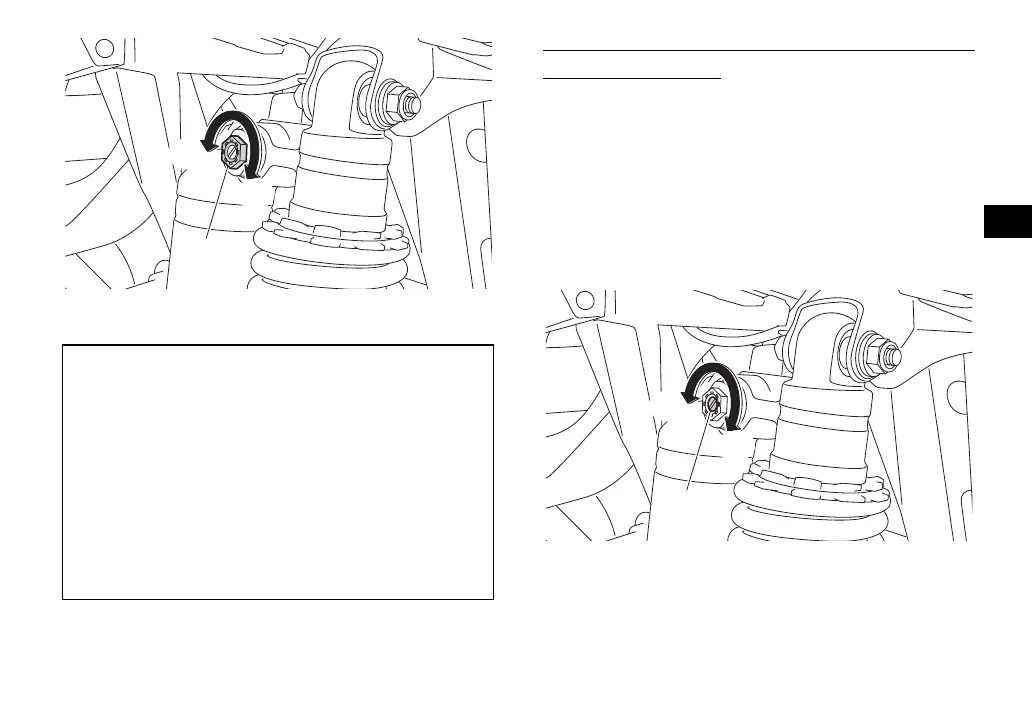

Compression damping force (for slow com-
pression damping)
To increase the compression damping force
and thereby harden the compression damp-
ing, turn the compression damping force ad-
justing screw in direction (a). To decrease the
compression damping force and thereby
soften the compression damping, turn the
adjusting screw in direction (b).
1. Compression damping force adjusting bolt (for fast
compression damping)
Compression damping setting (for fast com-
pression damping):
Minimum (soft):
2 turn(s) out from the fully turned in posi-
tion
Standard:
1 1/4 turn(s) out from the fully turned in
position
Maximum (hard):
Adjusting bolt fully turned in
1
(a)
(b)
1. Compression damping force adjusting screw (for slow
compression damping)
1
(a)
(b)
