The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil lter ele-
ment replaced at the intervals specied
in the periodic maintenance and lubri-
cation chart.
5PDIFDLUIFFOHJOFPJMMFWFM
1. Place the vehicle on a level surfa-
ce and hold it in an upright posi-
tion. A slight tilt to the side can
result in a false reading.
2. Start the engine, warm it up for
several minutes, and then turn it
off
.
3. Wait a few minutes until the oil set-
tles, and then check the oil level
through the check window locat-
ed at the bottom-right side of the
crankcase.
5*1
The engine oil should be between the
minimum and maximum level marks.

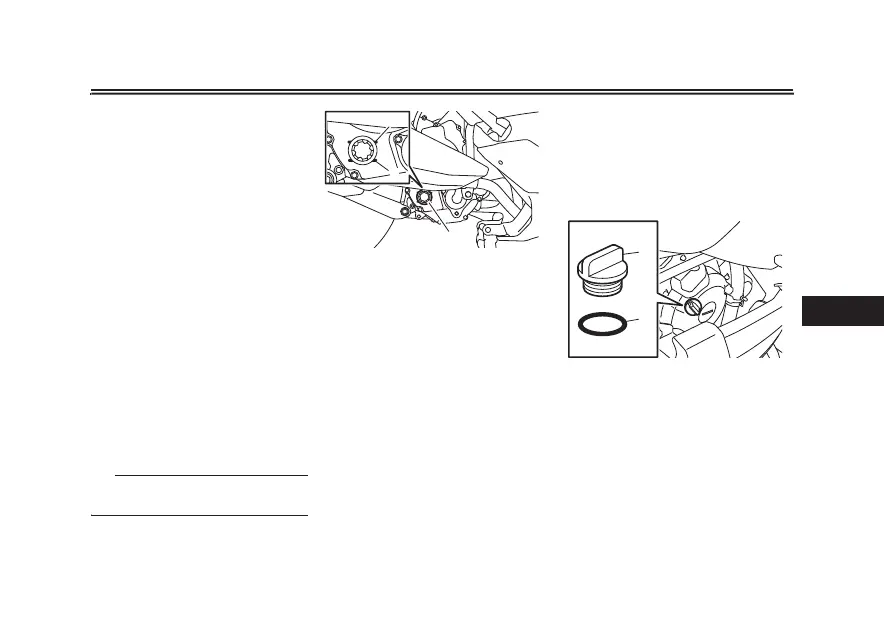

1. Engine oil level check window
2. Maximum level mark
3. Minimum level mark
3
1
2
4. If the engine oil is below the mini-
mum level mark, add sufcient oil
of the recommended type to raise
it to the correct level.
5P DIBOHF UIF FOHJOF PJM XJUI PS
XJUIPVU PJM ãMUFS FMFNFOU SFQMBDF
NFOU
1. Start the engine, warm it up for
several minutes, and then turn it
off.
2. Place an oil pan under the engine
to collect the used oil.
3. Remove the engine oil ller cap
and its O-ring, and then remove
the engine oil drain bolt and its
gasket to drain the oil from the
crankcase.
4. Chec
k the O-ring for damage, and
replace it if necessary.
1. Engine oil ller cap
2. O-ring
1
2
