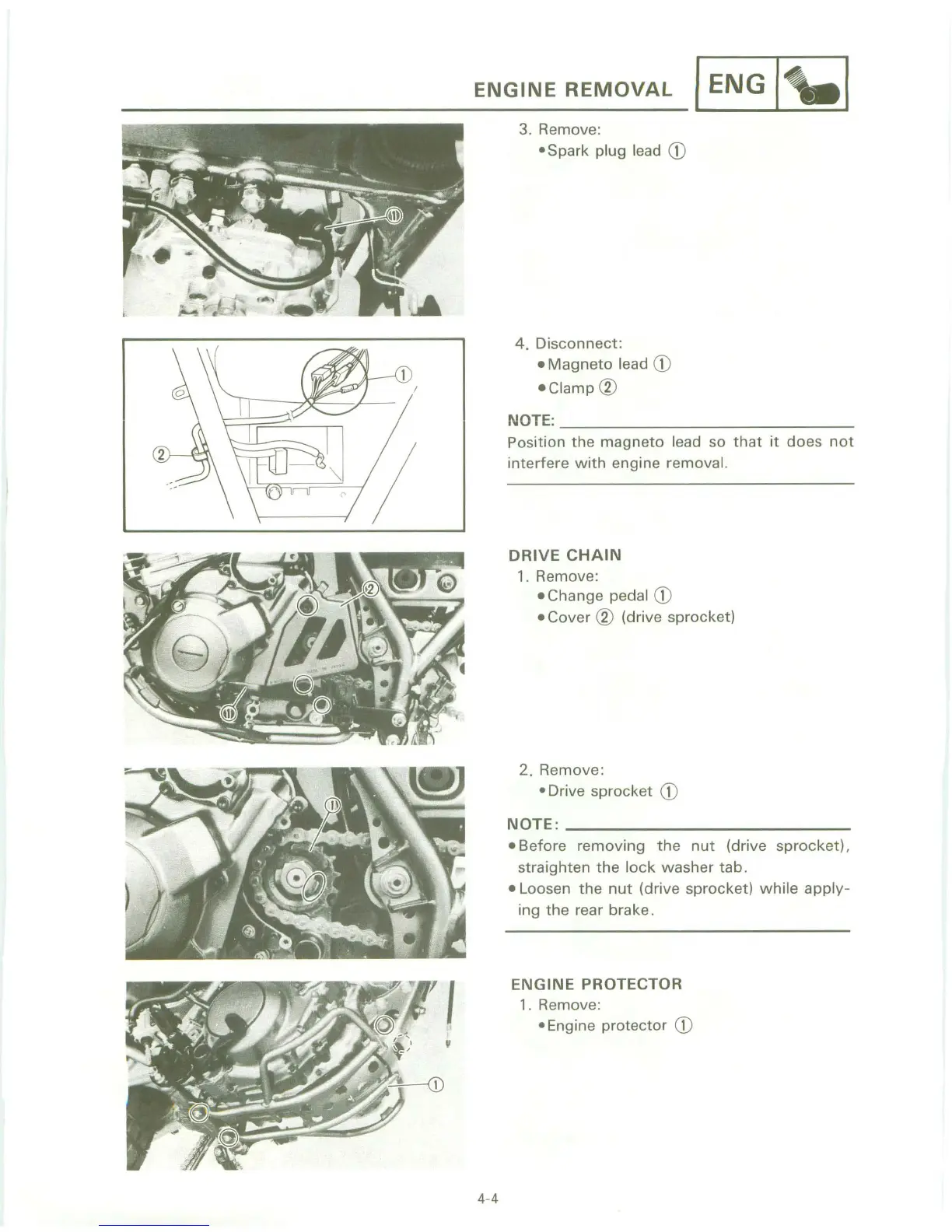

ENGINE REMOVAL I ENG 1'\.]
4-4
3. Remove:
• Spark plug lead CD
4. Disconnect:
• Magneto lead CD
-Clamp ®
I\JOTE: ___________________ _
Position the magneto lead so that it does not
interfere with engine removal.
DRIVE CHAIN
1. Remove:
• Change pedal CD
• Cover ® (drive sprocket)
2. Remove:
• Drive sprocket CD
NOTE: ________________________ __
• Before removing the nut (drive sprocket) ,
straighten the lock washer tab .
• Loosen the nut (drive sprocket) while apply -
ing the rear brake.
ENGINE PROTECTOR
1. Remove:
• Engine protector CD
