6-11

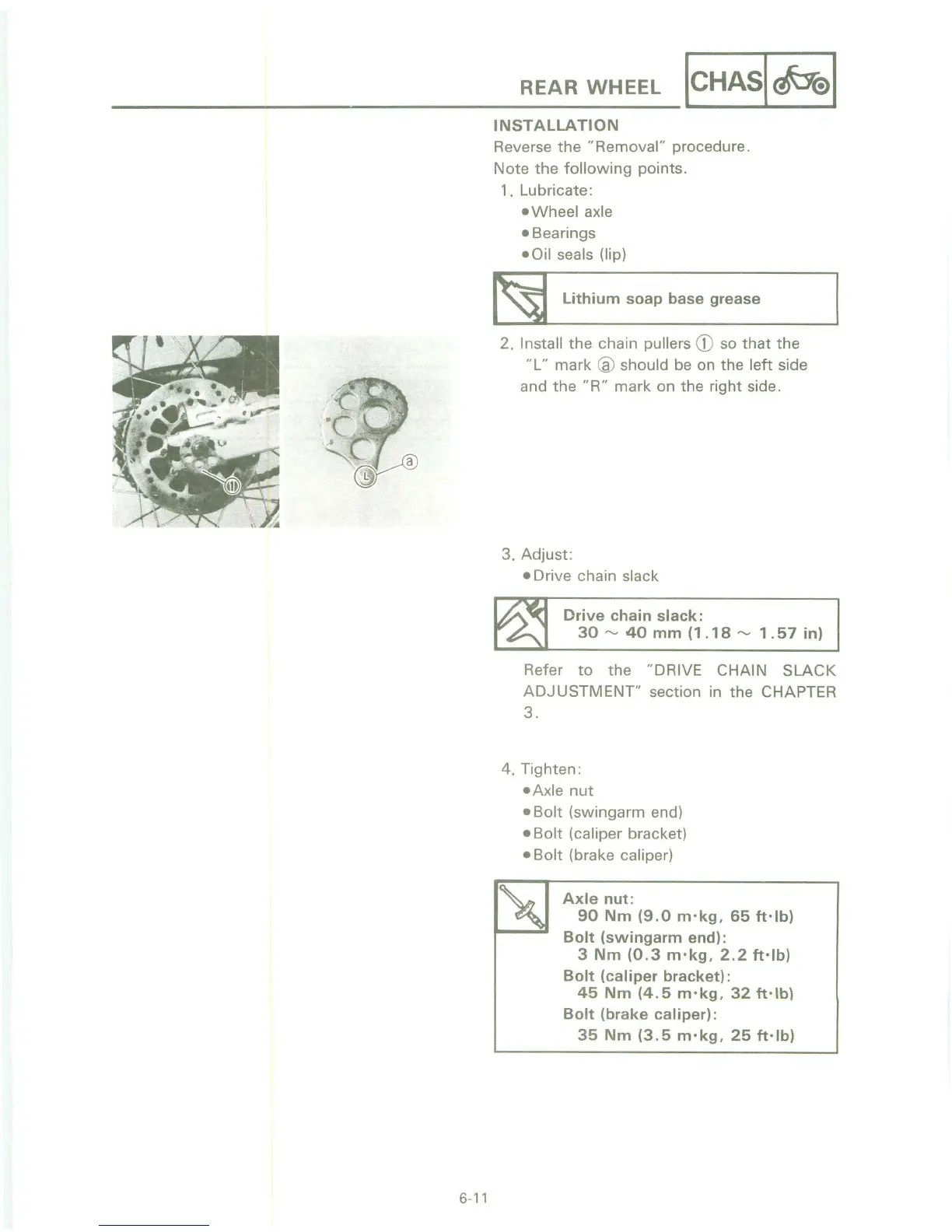

REAR WHEEL ICHASI ~I
INSTALLATION
Reverse the "Removal" procedure.
Note the following points.
1. Lubricate:
-Wheel axle
-
Bearings
-Oil seals (lip)
~ lithium soap base grease
2. Install the chain pullers CD so that the
"L" mark @ should be on the left side
and
the "R" mark on the right side.
3. Adjust:
- Drive chain slack
Drive chain slack:
30"-' 40 mm (1.18 "-' 1.57 in)
Refer to the "DRIVE CHAIN SLACK
ADJUSTMENT" section in the CHAPTER
3.
4. Tighten:
-Axle nut
- Bolt (swingarm end)
- Bolt (caliper bracket)
- Bolt (brake caliper)
Axle nut:
90 Nm (9.0 mokg, 65 ft-lb)
Bolt (swingarm end):
3
Nm (0.3 mokg, 2.2 ftolb)
Bolt (caliper bracket):
45 Nm (4.5 mokg, 32 ftolb)
Bolt (brake caliper):
35 Nm (3.5 mokg, 25 ftolb)
