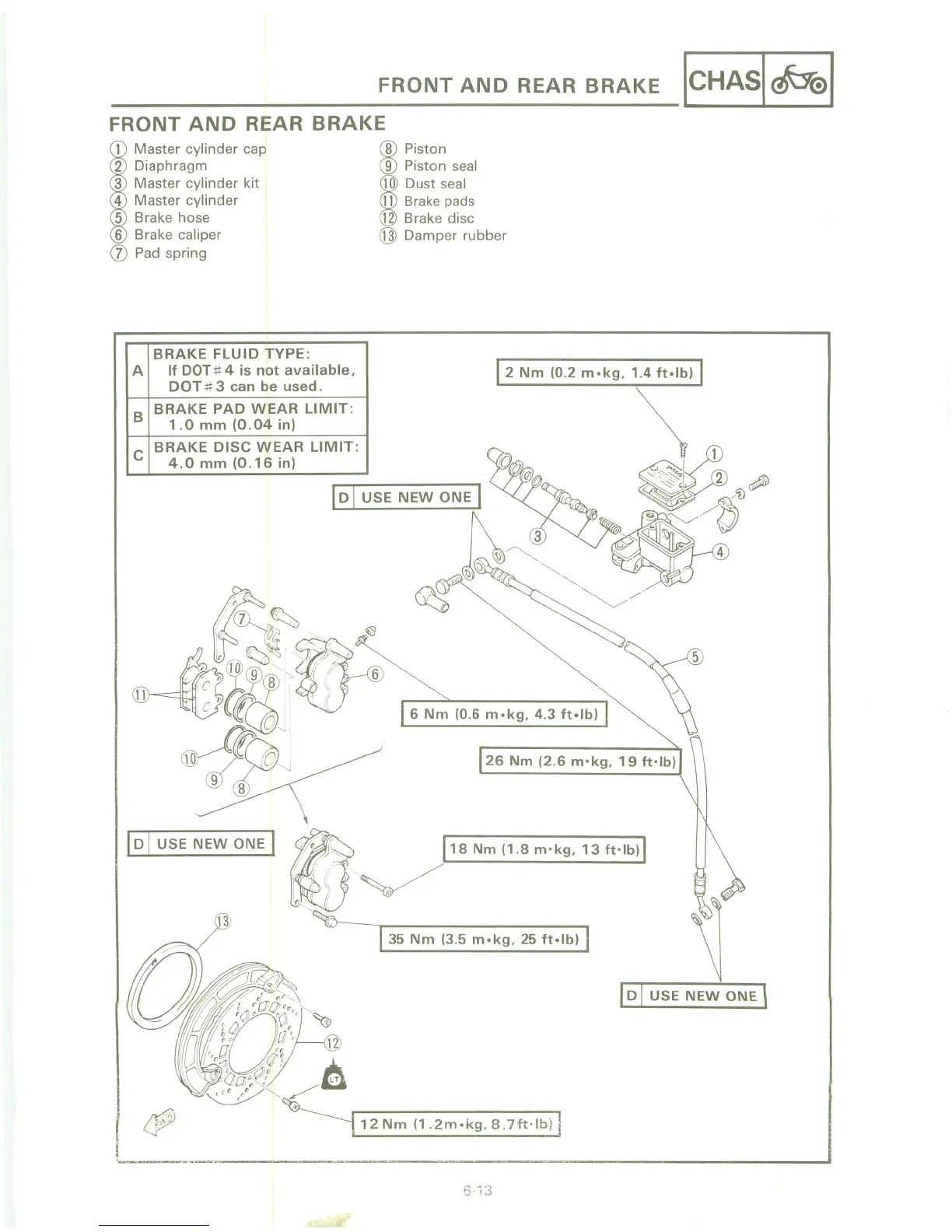

FRONT AND REAR BRAKE ICHASI ~I
FRONT AND REAR BRAKE
Master cylinder cap
Diaphragm
Master cylinder kit
Master cylinder
Brake hose
6 Brake
caliper
(J) Pad spring
BRAKE FLUID TYPE:
A If DOT # 4 is not available,
DOT#3 can be used .
B BRAKE PAD WEAR LIMIT:
1 .0 mm (0.04 in)
C BRAKE DISC WEAR LIMIT:
4.0 mm (0.16 in)
I D 1 USE NEW ONE I
~------ - ""-- - --
I
Piston
9 Piston seal
10 Dust seal
II Brake pads
I Brake disc
@ Damper rubber
6 Nm (0.6 m.kg, 4.3 ft·lb)
26 Nm (2.6 m
o
kg, 19 ft-lb)
118 Nm (1 .8 mokg, 13 fto'bll
~
135 Nm (3.5 m.kg, 25 tt·lb) I
101 USE NEW ONE \
