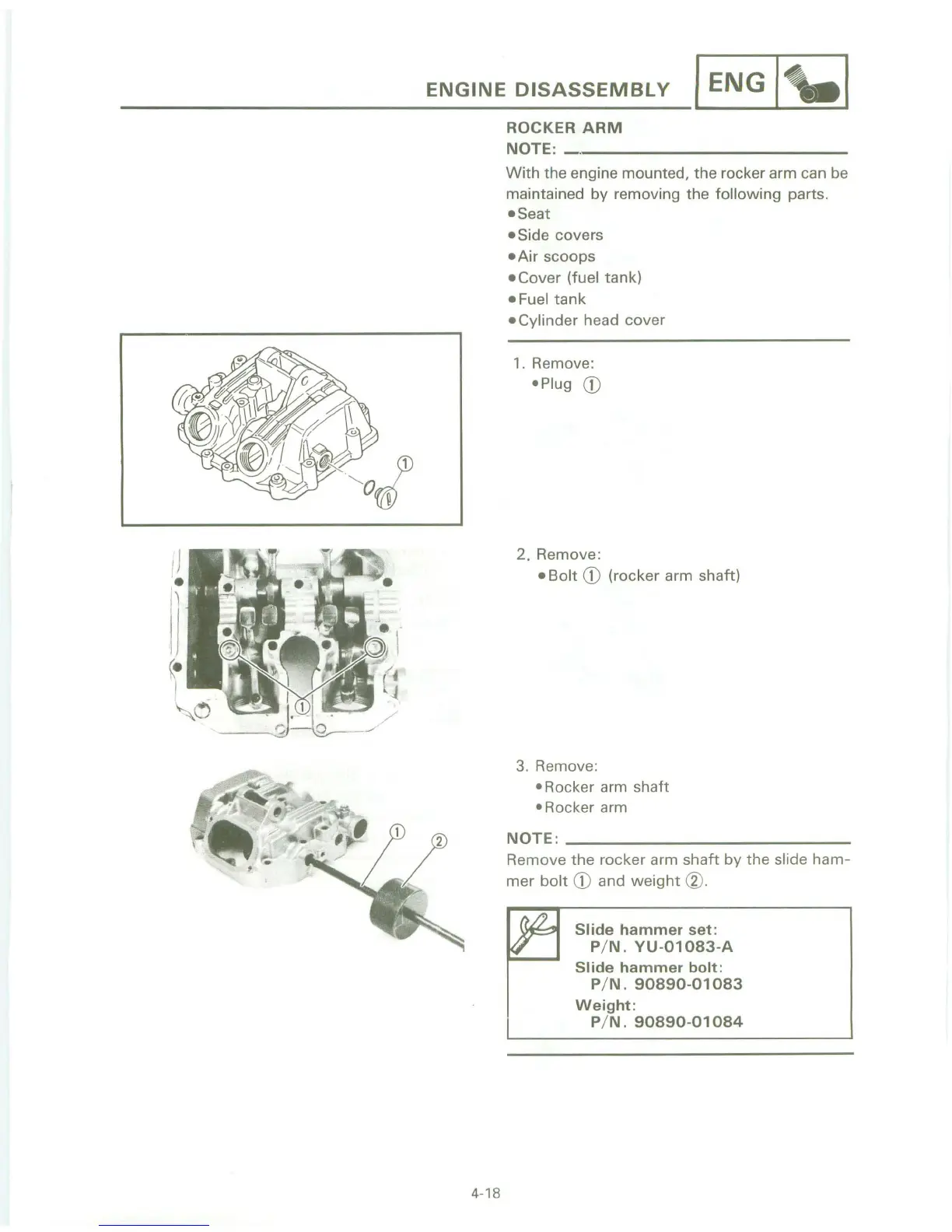

ENGINE DISASSEMBLY _ _ .. _
4-18
ROCKER ARM
NOTE:
With the engine mounted, the rocker arm can be
maintained by removing the following parts.
·Seat
• Side covers
.Air scoops
• Cover (fuel tank)
• Fuel tank
• Cylinder head cover
1. Remove:
-Plug CD
2. Remove:
• Bolt CD (rocker arm shaft)
3. Remove:
- Rocker arm shaft
-Rocker arm
NOTE: ________________________ __
Remove the rocker arm shaft by the slide ham-
mer bolt CD and weight @.
Slide hammer set:
PIN. YU-01083-A
Slide hammer bolt:
PIN. 90890-01083
Weight:
PI N. 90890-01084
