INSPECTION AND REPAIR
-------------------------------------------------------
I ENG 1'-1
..
4- 21

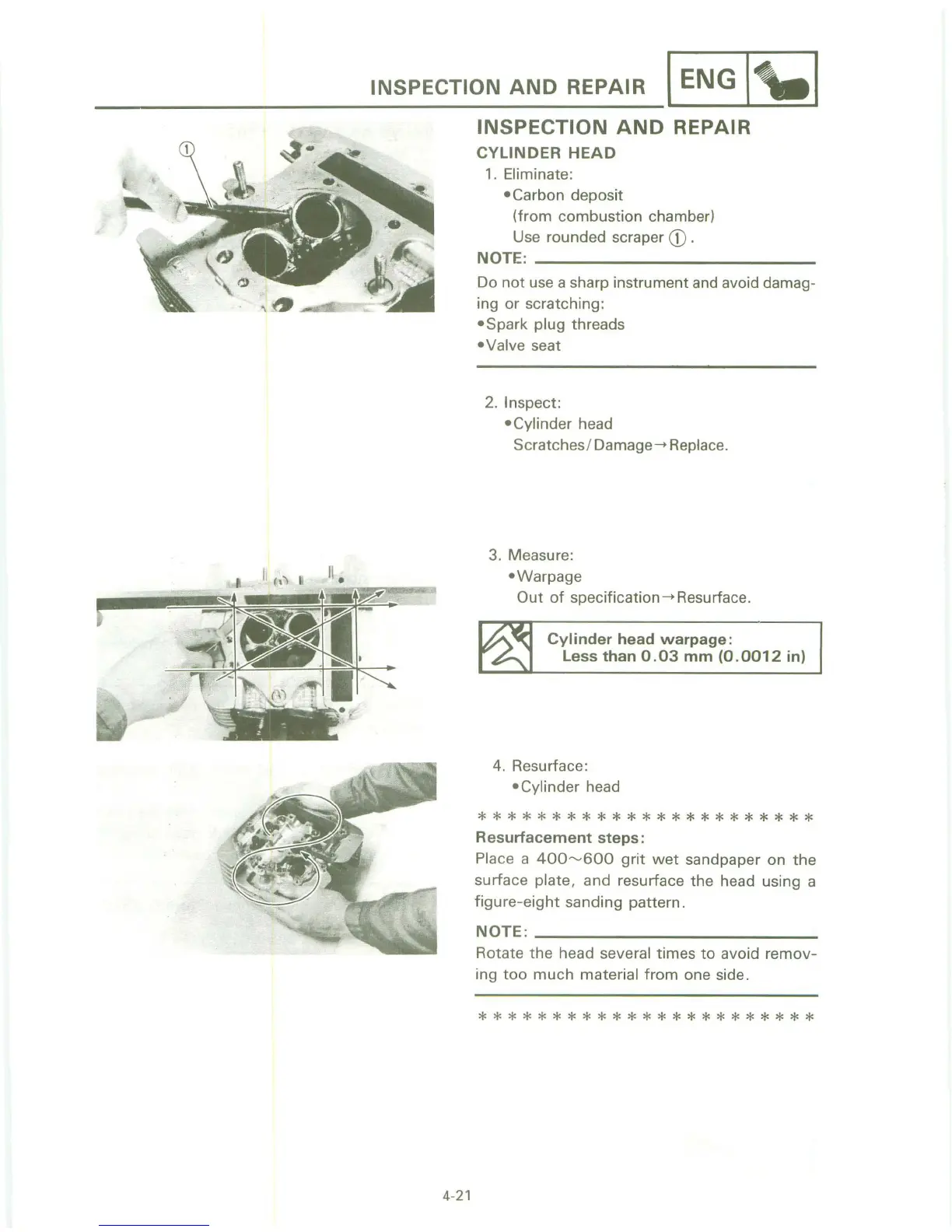

INSPECTION AND REPAIR
CYLINDER HEAD
1. Eliminate:
- Carbon deposit
(from combustion chamber)
Use rounded scraper
CD .
NOTE: ______________________ ___
Do not use a sharp instrument and avoid damag-
ing or scratching:
- Spark plug threads
-Valve seat
2.
Inspect:
-Cylinder head
Scratches/ Damage---+ Replace.
3. Measure:
-Warpage
Out of specification---+ Resurface.
Cylinder head
warpage:
Less than 0.03 mm (0.0012 in)
4. Resurface:
- Cylinder head
***********************
Resurfacement steps:
Place a 400'"'-'600 grit wet sandpaper on the
surface plate, and resurface the head using a
figure-eight sanding pattern.
NOTE: ________________________ _
Rotate
the head several times to avoid remov-
ing too much material from one side.
***********************
