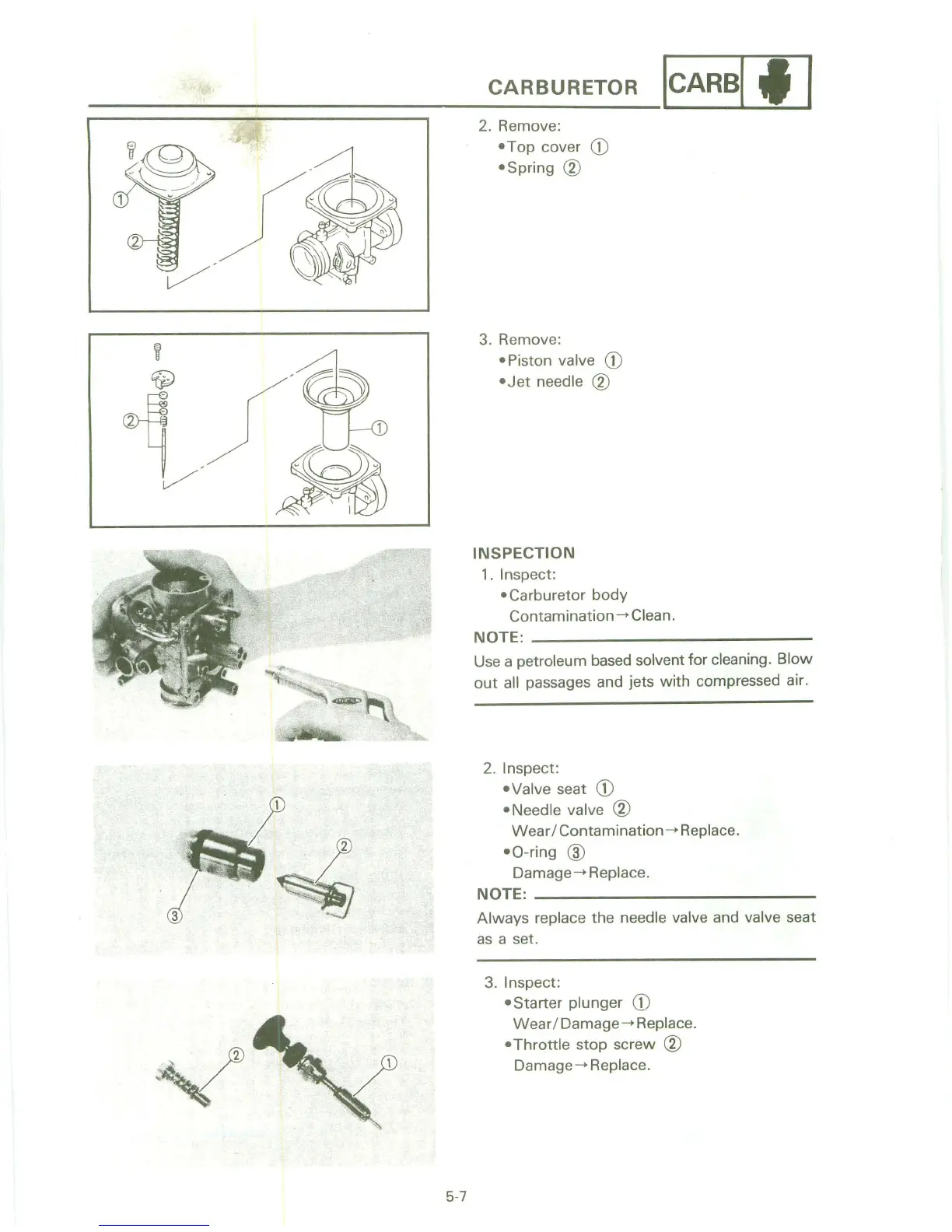

CARBURETOR ICARsl' I
2. Remove:
- Top cover CD
-Spring ®
3. Remove:
- Piston valve CD
-Jet needle ®
INSPECTION
1. Inspect:
-Carburetor body
Contamination -+ Clean.
NOTE: ________________________ __
Use a petroleum based solvent for cleaning. Blow
out all passages and jets with compressed air.
2.
Inspect:
-Valve seat CD
- Needle valve ®
Wear / Contamination -+ Replace.
-O-ring @
Damage-+ Replace.
NOTE: ______________________ __
Always replace the needle valve and valve seat
as a set.
3.
Inspect:
- Starter plunger
CD
Wear / Damage -+ Replace.
-Throttle stop screw ®
Damage-+ Replace.
