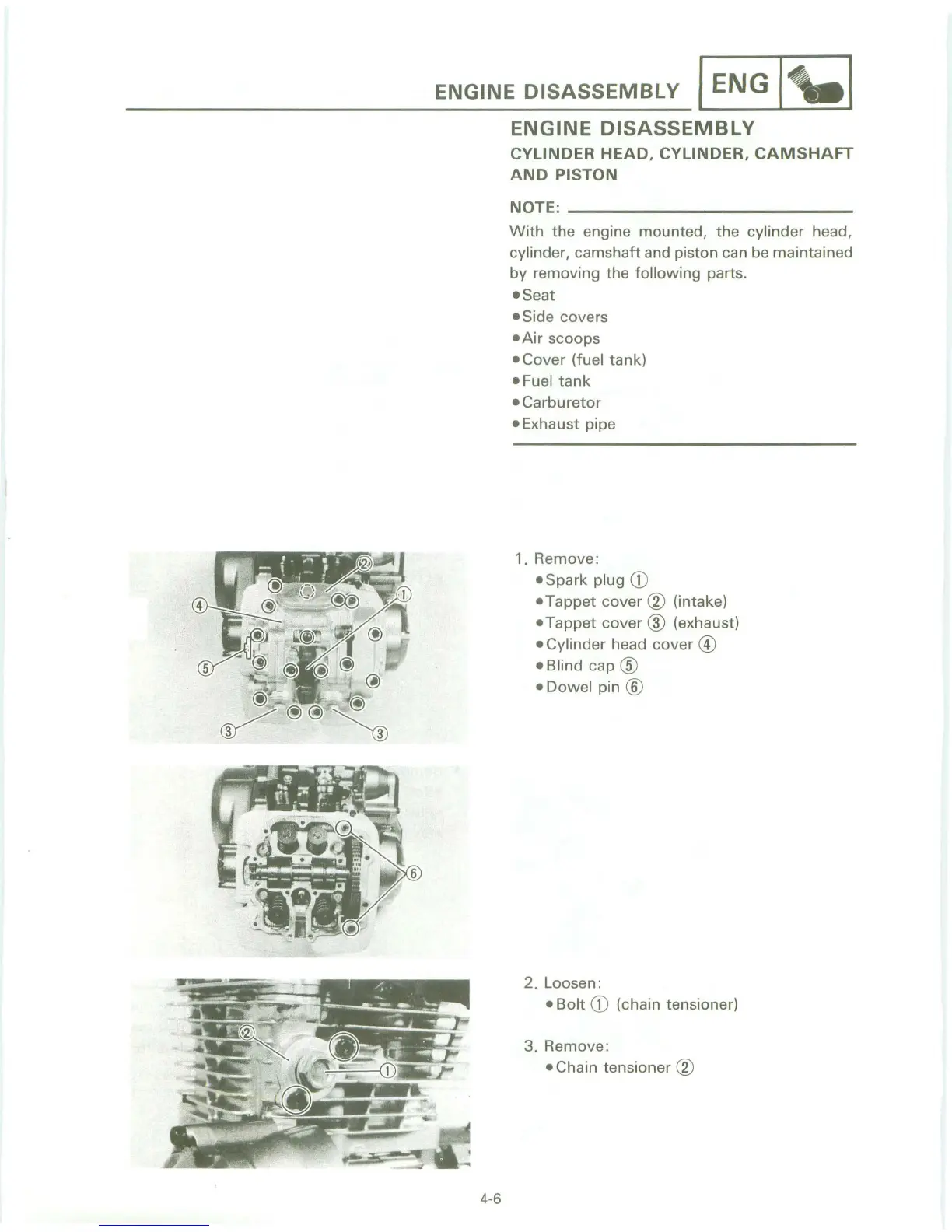

ENGINE DISASSEMBLY 1 ENG 1"-1
ENGINE DISASSEMBLY
4-6
CYLINDER HEAD, CYLINDER, CAMSHAFT
AND PISTON
NOTE: ________________________ __
With the engine mounted, the cylinder head,
cylinder, camshaft and piston can be maintained
by removing the following parts.
eSeat
e Side covers
eAir scoops
e Cover (fuel tank)
e Fuel tank
e Carburetor
e Exhaust pipe
1. Remove:
e Spark plug CD
eTappet cover ® (intake)
eTappet cover ® (exhaust)
e Cylinder head cover @
eBlind cap @
eDowel pin ®
2. Loosen:
e Bolt CD (chain tensioner)
3. Remove:
e Chain tensioner ®
