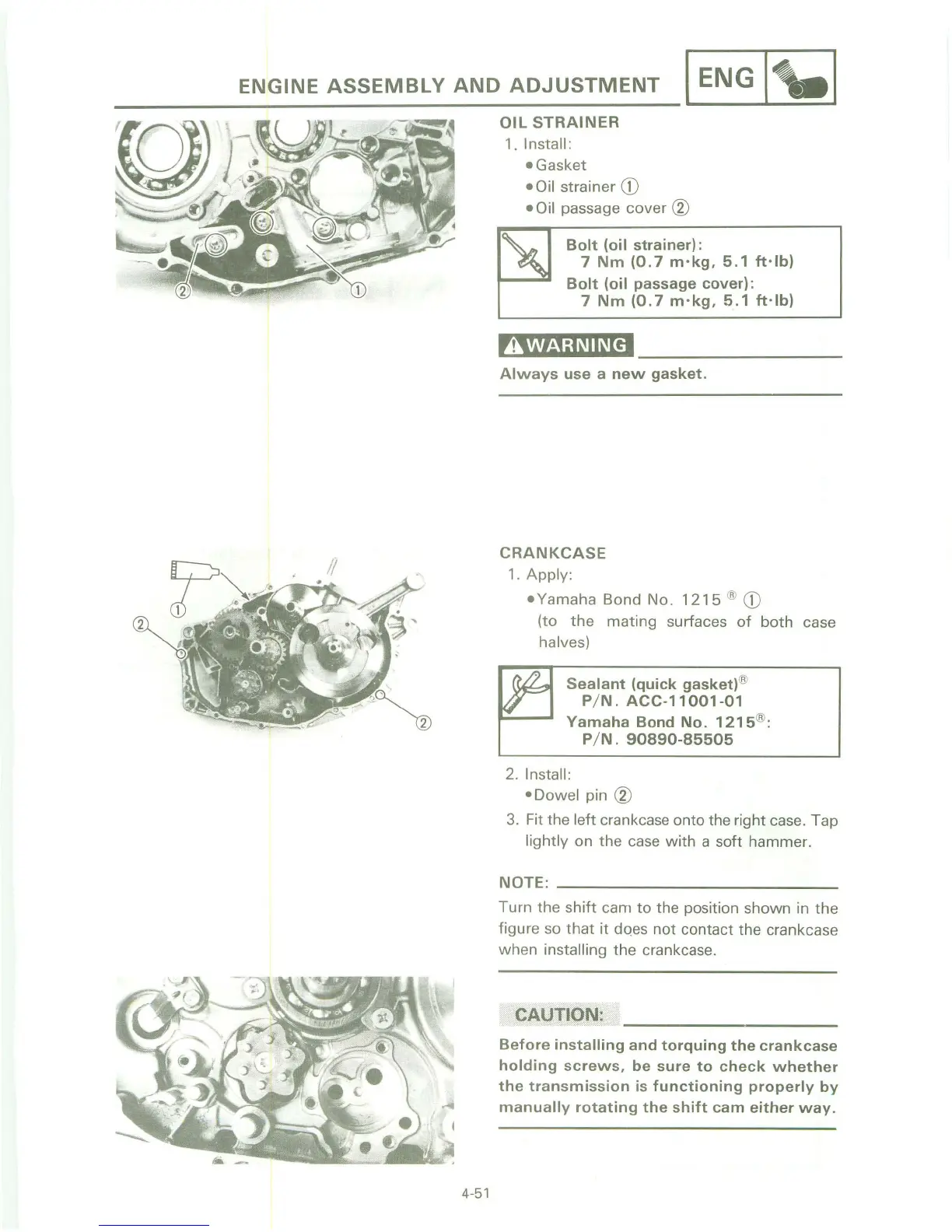

ENGINE ASSEMBLY AND ADJUSTMENT
ENG '-
4-51
OIL STRAINER
1. Install:
.Gasket
• Oil strainer CD
• Oil passage cover ®
Bolt (oil strainer):
7 Nm (0.7 m'kg, 5.1 ft'lb)
Bolt (oil passage cover):
7
Nm (0.7 m'kg, 5.1 ft·lb)
AWARNING
Always use a new gasket.
CRANKCASE
1. Apply:
·Yamaha Bond No. 1215 ® CD
(to the mating surfaces of both case
halves)
Sealant (quick gasket) ®
PIN. ACC-11 001-01
Yamaha Bond No. 1215 ®:
PIN. 90890-85505
2. Install:
-Dowel pin ®
3. Fit the left crankcase onto the right case. Tap
lightly on the case with a soft hammer.
NOTE: ________________________ _
Turn the shift cam to the position shown in the
figure so that it dqes not contact the crankcase
when installing the crankcase.
Before installing and torquing the crankcase
holding screws, be sure to check whether
the transmission is functioning properly by
manually rotating the shift cam either way.
