CHASSIS
EAS00118
CHECKING THE FRONT AND REAR
BRAKE PADS AND BRAKE PAD PINS
The following procedure applies to all of the
brake pads.
1. Operate the brake.
2. Check:
• Front brake pads

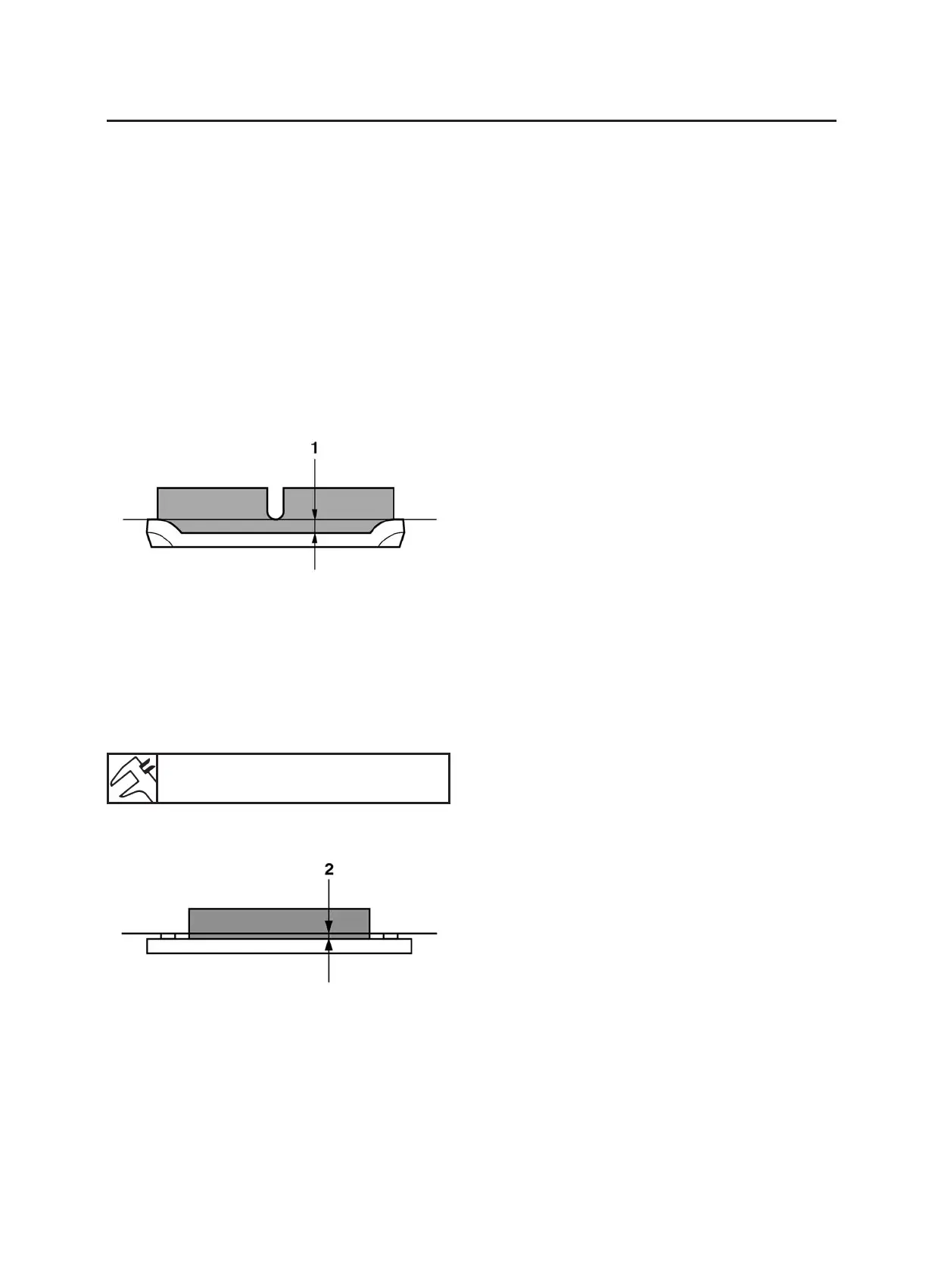

Wear indicator grooves “1” have almost dis-
appeared → Replace the brake pads as a
set.
Refer to “REPLACING THE FRONT BRAKE
PADS” on page 4-25.
3. Measure:
• Rear brake pads
Wear limit “2” reached → Replace the brake
pads as a set.
Refer to “REPLACING THE REAR BRAKE
PADS” on page 4-36.
Rear brake pad wear limit
1.0 mm (0.04 in)
4. Check:
• Brake pad pins
Damage/wear → Replace.
EAS00131
CHECKING THE FRONT AND REAR
BRAKE HOSES
The following procedure applies to all of the
brake hoses and brake hose clamps.
1. Check:
• Front brake hoses
• Rear brake hoses
Cracks/damage/wear → Replace.
2. Check:
• Brake hose clamp
Loose → Tighten the clamp bolt.
3. Hold the motorcycle upright and apply the
brake several times.
4. Check:
• Brake hoses
Brake fluid leakage → Replace the dam-
aged hose.

Yamaha XT660Z Tenere 2008 Specifications

General

Displacement	660cc
Compression Ratio	10.0:1
Maximum Power	35.0 kW (48 PS) @ 6, 000 rpm
Fuel System	Fuel injection
Ignition System	TCI
Starter System	Electric
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Front Tire	90/90-21
Rear Tire	130/80-17
Seat Height	895 mm
Dry Weight	183 kg
Front Suspension Travel	210 mm
Rear Suspension Travel	200 mm
Height	1, 477 mm
Wheelbase	1, 505 mm
Ground Clearance	260 mm
Engine Type	Single cylinder, 4-stroke, SOHC, 4 valves
Bore x Stroke	100 mm x 84 mm
Rear Suspension	Swingarm
Rear Brake	Single disc, Ø 245 mm
Fuel Capacity	22 litres
Wet Weight	206 kg
Front Brake Disc	298 mm
Rear Brake Disc	245 mm
Width	865 mm
Length	2, 246 mm
