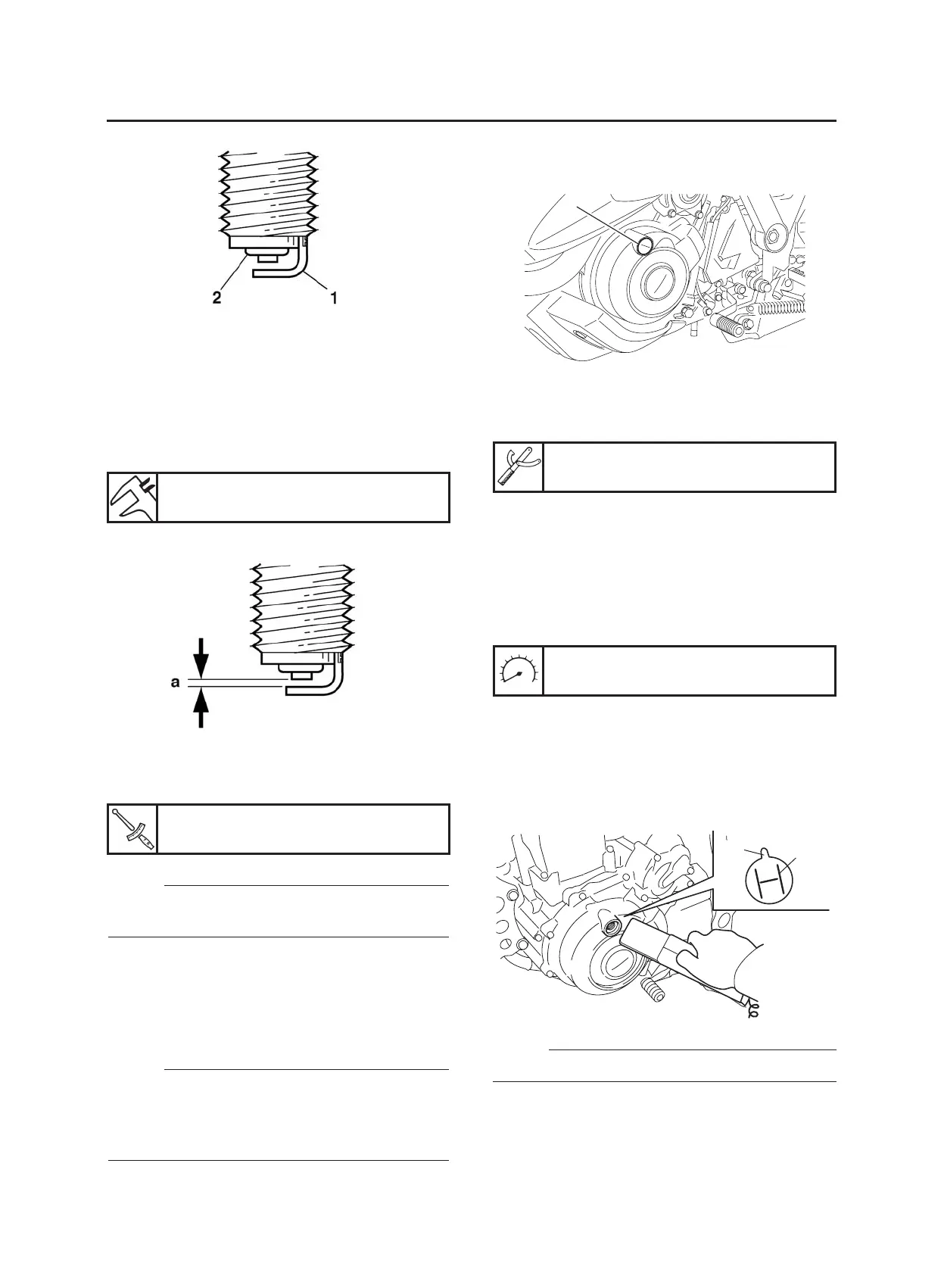

3-7
ENGINE
5. Clean:
Spark plug (with a spark plug cleaner or wire
brush)
6. Measure:
Spark plug gap “a” (with a thickness gauge)
Out of specification Regap.
Spark plug gap
0.7-0.8 mm (0.028-0.031 in)
7. Install:
Spark plug
Spark plug
13 Nm (1.3 m·kg, 9.4 ft·lb)
NOTE:
Before installing the spark plug, clean the
spark plug and gasket surface.
8. Connect:
Spark plug cap
EAS00064
CHECKING THE IGNITION TIMING
NOTE:
Prior to checking the ignition timing, check the
wiring connections of the entire ignition sys-
tem. Make sure all connections are tight and
free of corrosion.
a. Start the engine, warm it up for several min-
utes, and then let it run at the specified en-
gine idling speed.
b. Check that the stationary pointer “a” is with-
in the firing range “b” on the A.C. magneto
rotor.
Incorrect firing range Check the ignition
system.
1. Remove:
Timing mark accessing screw “1”
2. Connect:
Timing light (onto the spark plug lead)
1
3. Check:
Ignition timing
Timing light
90890-03141
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
Engine idling speed
1400-1600 r/min
NOTE:
The ignition timing is not adjustable.
a
b
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
4. Detach:
Timing light
5. Install:
Timing mark accessing screw
