Yamaha XT660Z Tenere 2008 User Manual

5-35
CLUTCH
Universal clutch holder
90890-04086
Friction plate 1 thickness
2.90-3.10 mm (0.114-0.122 in)
<Limit>: 2.80 mm (0.110 in)
Friction plate 2 thickness
2.92-3.08 mm
(0.115-0.121 in)
<Limit>: 2.80 mm (0.110 in)
Friction plate 3 thickness
2.90-3.10 mm (0.114-0.122 in)
<Limit>: 2.80 mm (0.110 in)

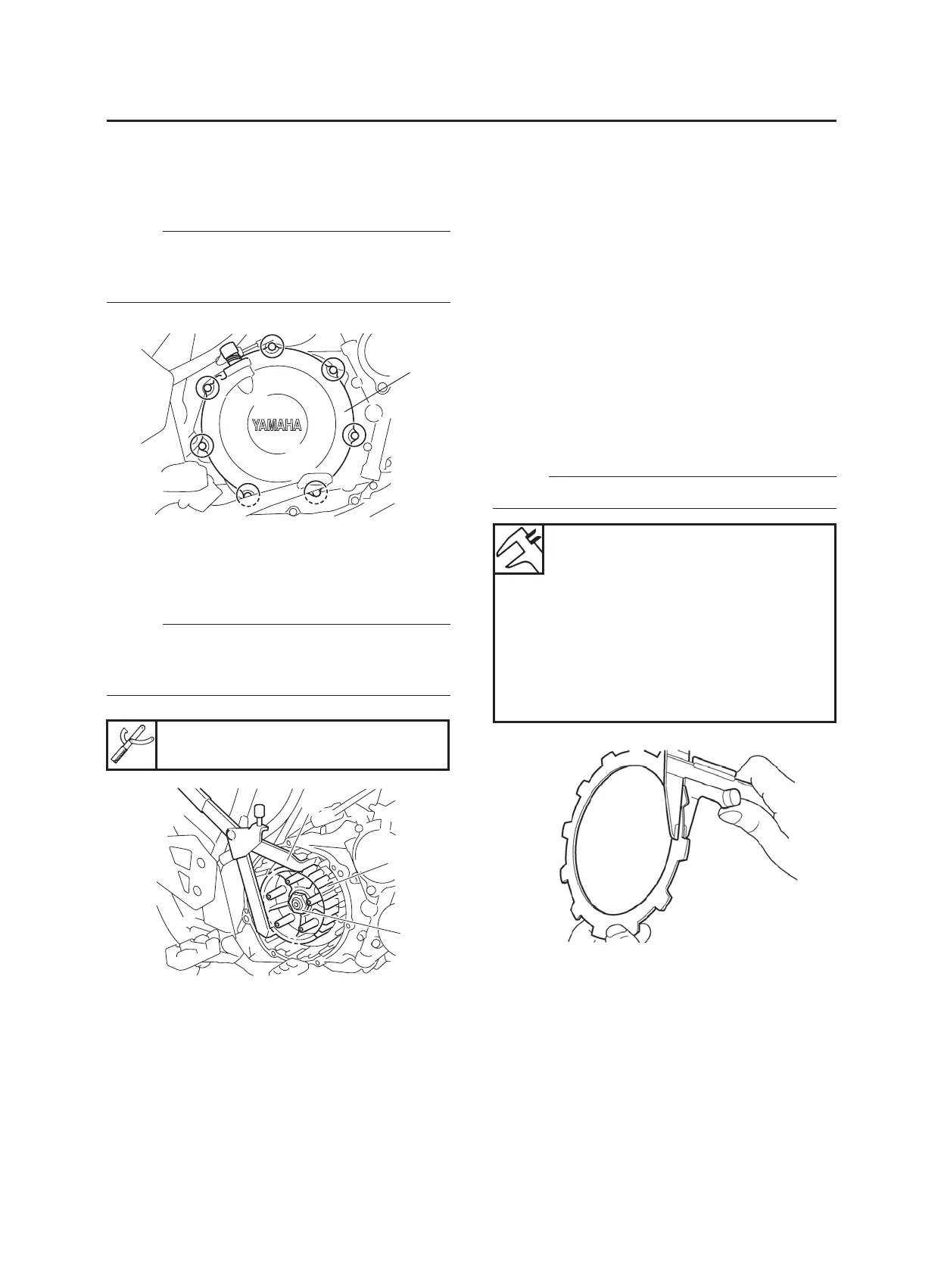

EAS00275
REMOVING THE CLUTCH
1. Remove:
• Clutch cover “1”
NOTE:
Loosen each bolt 1/4 of a turn at a time, in
stages and in a crisscross pattern. After all of
the bolts are fully loosened, remove them.
2. Straighten the lock washer tab.
3. Loosen:
• Clutch boss nut “1”
NOTE:
While holding the clutch boss “2” with the uni-
versal clutch holder “3”, loosen the clutch boss
nut.
1
4. Remove:
• Clutch boss nut
• Lock washer
• Clutch boss
3
2
1
EAS00280
CHECKING THE FRICTION PLATES
The following procedure applies to all of the
friction plates.
1. Check:
• Friction plate “1”
• Friction plate “2”
• Friction plate “3”
Damage/wear → Replace the friction plates
as a set.
2. Measure:
• Friction plate 1 thickness
• Friction plate 2 thickness
• Friction plate 3 thickness
Out of specification → Replace the friction
plates as a set.
NOTE:
Measure the friction plate at four places.
EAS00281
CHECKING THE CLUTCH PLATES
The following procedure applies to all of the
clutch plates.
1. Check:
• Clutch plate
Damage → Replace the clutch plates as a
set.

Yamaha XT660Z Tenere 2008 Specifications

General

Displacement	660cc
Compression Ratio	10.0:1
Maximum Power	35.0 kW (48 PS) @ 6, 000 rpm
Fuel System	Fuel injection
Ignition System	TCI
Starter System	Electric
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Front Tire	90/90-21
Rear Tire	130/80-17
Seat Height	895 mm
Dry Weight	183 kg
Front Suspension Travel	210 mm
Rear Suspension Travel	200 mm
Height	1, 477 mm
Wheelbase	1, 505 mm
Ground Clearance	260 mm
Engine Type	Single cylinder, 4-stroke, SOHC, 4 valves
Bore x Stroke	100 mm x 84 mm
Rear Suspension	Swingarm
Rear Brake	Single disc, Ø 245 mm
Fuel Capacity	22 litres
Wet Weight	206 kg
Front Brake Disc	298 mm
Rear Brake Disc	245 mm
Width	865 mm
Length	2, 246 mm
