CHASSIS
d. Tighten the locknuts to specification.
EAS00142
LUBRICATING THE DRIVE CHAIN
The drive chain consists of many interacting
parts. If the drive chain is not maintained prop-
erly, it will wear out quickly. Therefore, the drive
chain should be serviced, especially when the
motorcycle is used in dusty areas.
This motorcycle has a drive chain with small
rubber O-rings between each side plate.
Steam cleaning, high-pressure washing, cer-
tain solvents, and the use of a coarse brush
can damage these O-rings. Therefore, use on-
ly kerosene to clean the drive chain. Wipe the
drive chain dry and thoroughly lubricate it with
engine oil or chain lubricant that is suitable for
O-ring chains. Do not use any other lubricants
on the drive chain since they may contain sol-
vents that could damage the O-rings.

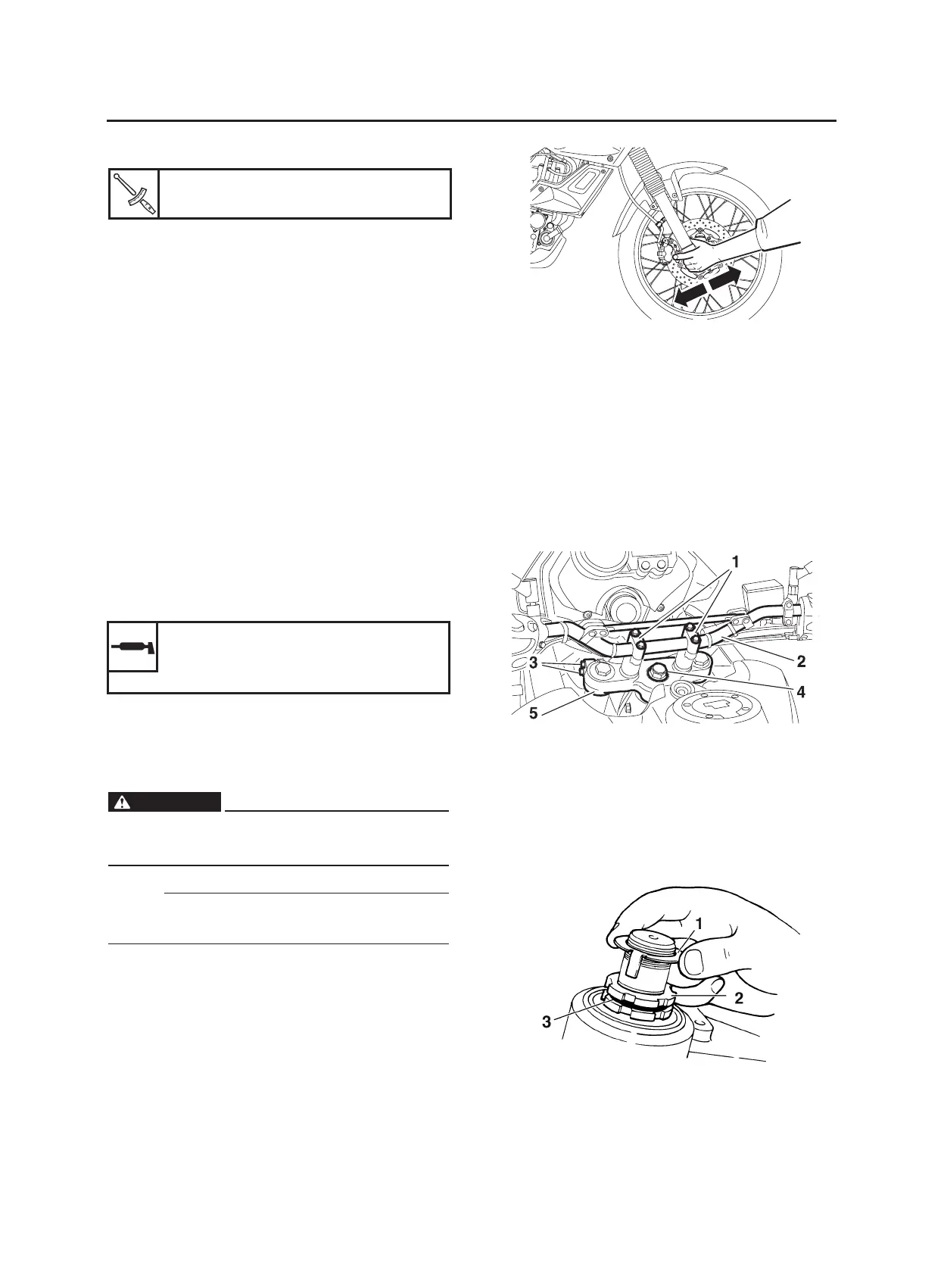

EAS00146
CHECKING AND ADJUSTING THE
STEERING HEAD
1. Stand the motorcycle on a level surface.
WARNING
Securely support the motorcycle so that
there is no danger of it falling over.
NOTE:
Place the motorcycle on a suitable stand so
that the front wheel is elevated.
2. Check:
• Steering head
Grasp the bottom of the front fork legs and
gently rock the front fork.
Binding/looseness → Adjust the steering
head.
Locknut
16 Nm (1.6 m·kg, 11 ft·lb)
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
Recommended lubricant
Engine oil or chain lubricant
suitable for O-ring chains
3. Remove:
• Upper handlebar holders “1”
• Handlebar “2”
4. Loosen:
• Upper bracket pinch bolts “3”
5. Remove:
• Steering stem nut “4”
• Washer
• Upper bracket “5”
6. Adjust:
• Steering head
a. Remove the lock washer “1”, the upper ring
nut “2”, and the plain washer “3”.
b. Loosen the lower ring nut “4”, and then tight-
en it to the specified torque with a steering
nut wrench “5”.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼

Yamaha XT660Z Tenere 2008 Specifications

General

Displacement	660cc
Compression Ratio	10.0:1
Maximum Power	35.0 kW (48 PS) @ 6, 000 rpm
Fuel System	Fuel injection
Ignition System	TCI
Starter System	Electric
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Front Tire	90/90-21
Rear Tire	130/80-17
Seat Height	895 mm
Dry Weight	183 kg
Front Suspension Travel	210 mm
Rear Suspension Travel	200 mm
Height	1, 477 mm
Wheelbase	1, 505 mm
Ground Clearance	260 mm
Engine Type	Single cylinder, 4-stroke, SOHC, 4 valves
Bore x Stroke	100 mm x 84 mm
Rear Suspension	Swingarm
Rear Brake	Single disc, Ø 245 mm
Fuel Capacity	22 litres
Wet Weight	206 kg
Front Brake Disc	298 mm
Rear Brake Disc	245 mm
Width	865 mm
Length	2, 246 mm
