Yamaha XT660Z Tenere 2008 User Manual

1
2
11
12
7
8
6
5
4
3
10
9
AIS
FI
TO E/G
4-5
GENERAL CHASSIS
Order Job/Parts to remove Q’ty Remarks
Seat Refer to “GENERAL CHASSIS” on page 4-1.
Fuel tank Refer to “FUEL TANK” on page 7-1.
1 Air filter case joint clamp screw 1 Loosen.
2 Intake air temperature sensor coupler 1 Disconnect.
3 Air filter case to air cut-off valve hose 1 Disconnect.
4 Crankcase breather chamber 1
5 Pilot air hose 1 Disconnect.
6 Check hose 1 Disconnect.
7 Air filter case cover (left) 1
8 Air filter case cover (right) 1
9 Air filter case 1
10 Air cleaner joint 1
11 Air cleaner duct 1
12 Air cleaner element 1
For installation, reverse the removal
procedure.

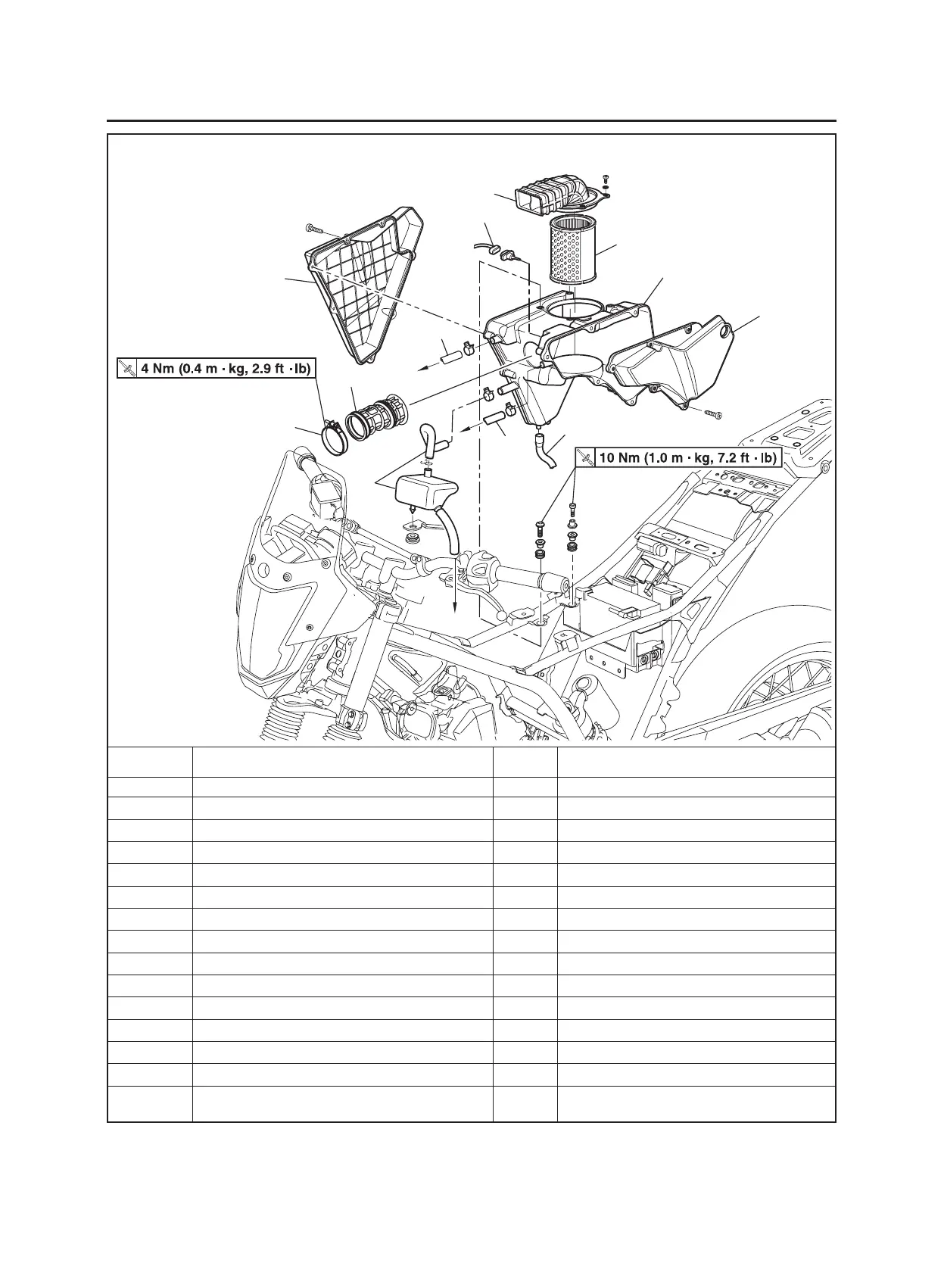

Removing the air filter case and crankcase breather chamber

Yamaha XT660Z Tenere 2008 Specifications

General

Displacement	660cc
Compression Ratio	10.0:1
Maximum Power	35.0 kW (48 PS) @ 6, 000 rpm
Fuel System	Fuel injection
Ignition System	TCI
Starter System	Electric
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Front Tire	90/90-21
Rear Tire	130/80-17
Seat Height	895 mm
Dry Weight	183 kg
Front Suspension Travel	210 mm
Rear Suspension Travel	200 mm
Height	1, 477 mm
Wheelbase	1, 505 mm
Ground Clearance	260 mm
Engine Type	Single cylinder, 4-stroke, SOHC, 4 valves
Bore x Stroke	100 mm x 84 mm
Rear Suspension	Swingarm
Rear Brake	Single disc, Ø 245 mm
Fuel Capacity	22 litres
Wet Weight	206 kg
Front Brake Disc	298 mm
Rear Brake Disc	245 mm
Width	865 mm
Length	2, 246 mm
