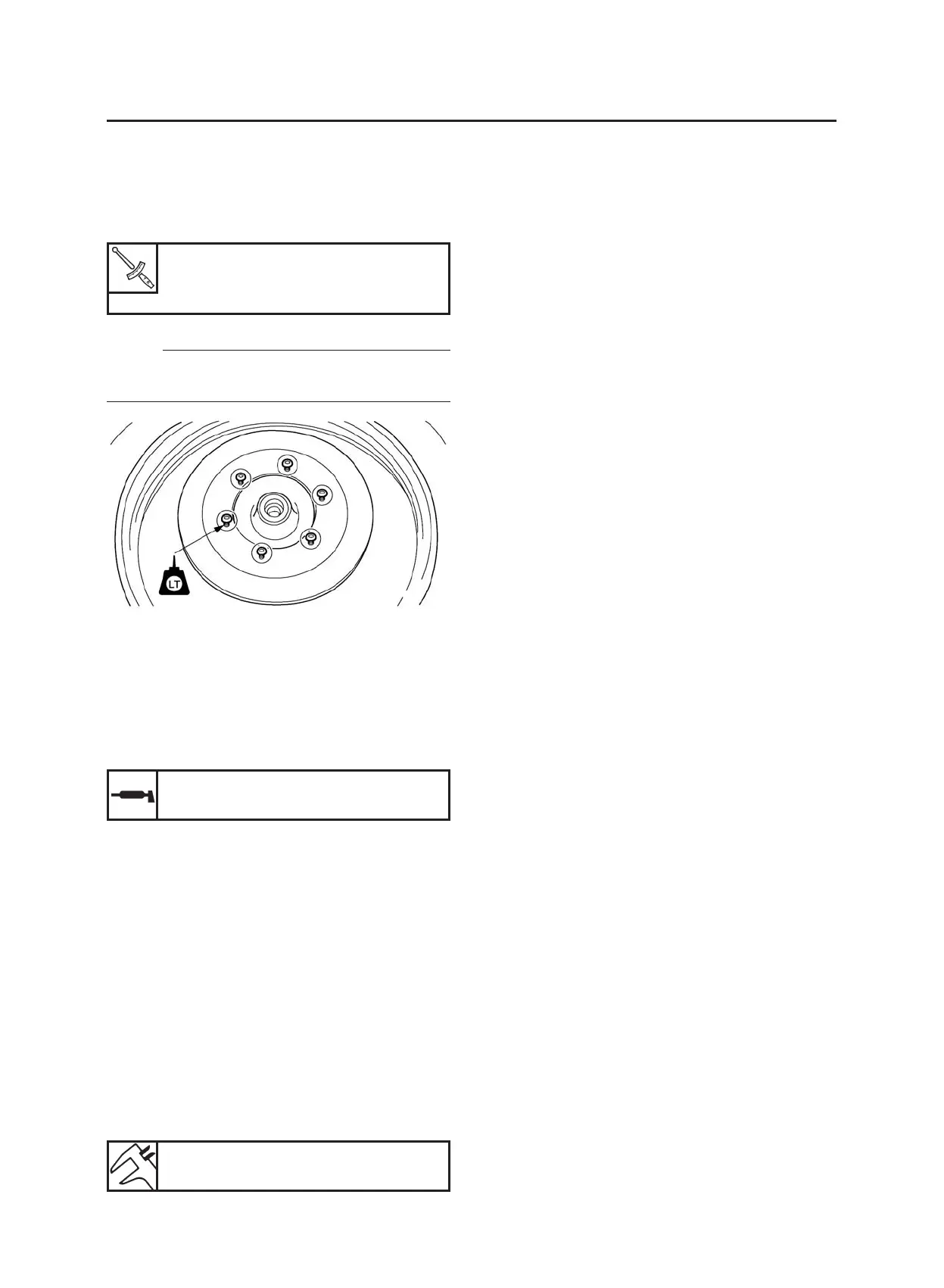

REAR WHEEL
Rear brake disc bolt
14 Nm (1.4 m·kg, 10 ft·lb)
LOCTITE
®
EAS22160
INSTALLING THE REAR WHEEL
(REAR BRAKE DISC)
1. Install:
• Rear brake disc
NOTE:
Tighten the brake disc bolts in stages and in a
crisscross pattern.
2. Check:
• Rear brake disc
Refer to “CHECKING THE REAR BRAKE
DISC” on page 4-37.
3. Lubricate:
• Oil seal lips
• Collars
4. Install:
• Collar (wheel sprocket side)
• Collar (brake disc side)
• Rear brake caliper bracket
(on the swingarm)
• Rear wheel
(on the swingarm)
• Drive chain
(on the rear sprocket)
• Rear wheel axle
• Rear wheel axle nut
5. Adjust:
• Drive chain slack
Refer to “ADJUSTING THE DRIVE CHAIN
SLACK” on page 3-22.
Recommended lubricant
Lithium-soap-based grease
Drive chain slack
50.0–60.0 mm (1.96–2.36 in)
