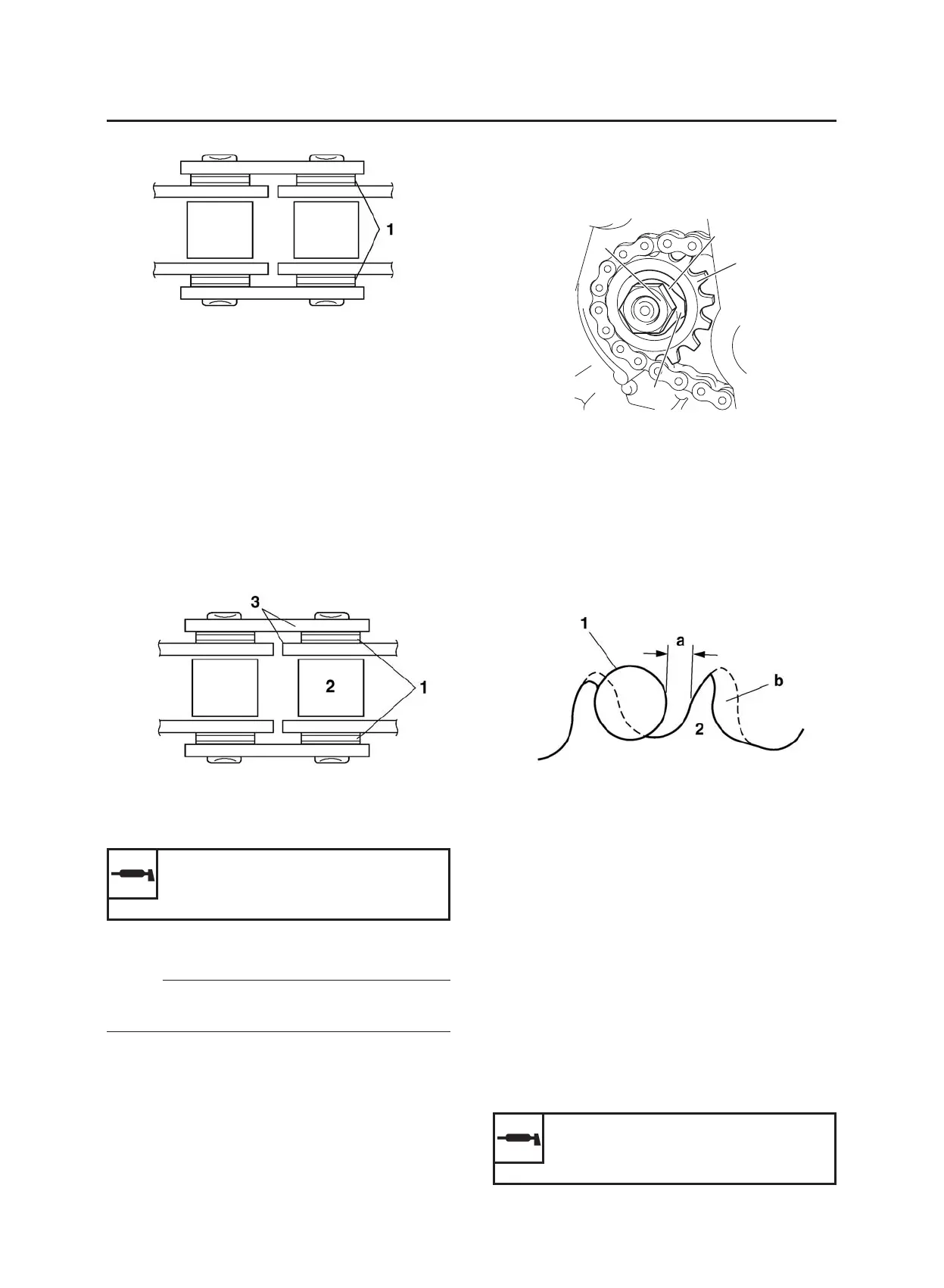

4-71
CHAIN DRIVE
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
4. Check:
O-rings “1”
Damage •Replace the drive chain.
Drive chain rollers “2”
Damage/wear Replace the drive chain.
Drive chain side plates “3”
Damage/wear Replace the drive chain.
Cracks Replace the drive chain and make
sure the battery breather hose is properly
routed away from the drive chain and below
the swingarm.
5. Lubricate:
Drive chain
Recommended lubricant
Engine oil or chain lubricant
suitable for O-ring chains
REMOVING THE DRIVE SPROCKET
NOTE:
Loosen the drive sprocket nut before removing
the rear wheel.
1. Remove:
Drive sprocket cover
Drive chain guard
2. Straighten the lock washer tab “a”
3. Remove:
Drive sprocket nut “1”
Lock washer “2”
Drive sprocket “3”
EAS23460
CHECKING THE DRIVE SPROCKET
1. Check:
Drive sprocket
More than 1/4 tooth “a” wear Replace the
drive chain sprockets as a set.
Bent teeth Replace the drive chain sprock-
ets as a set.
b. Correct
1. Drive chain roller
2. Drive chain sprocket
EAS23470
CHECKING THE REAR WHEEL SPROCKET
Refer to “CHECKING AND REPLACING THE
REAR WHEEL SPROCKET” on page 4-18.
EAS23480
CHECKING THE REAR WHEEL DRIVE HUB
Refer to “CHECKING THE REAR WHEEL DRI-
VE HUB” on page 4-18.
EAS28800
INSTALLING THE DRIVE CHAIN
1. Lubricate:
Drive chain
1
2
3
a
Recommended lubricant
Engine oil or chain lubricant
suitable for O-ring chains
