RADIATOR
EAS00455

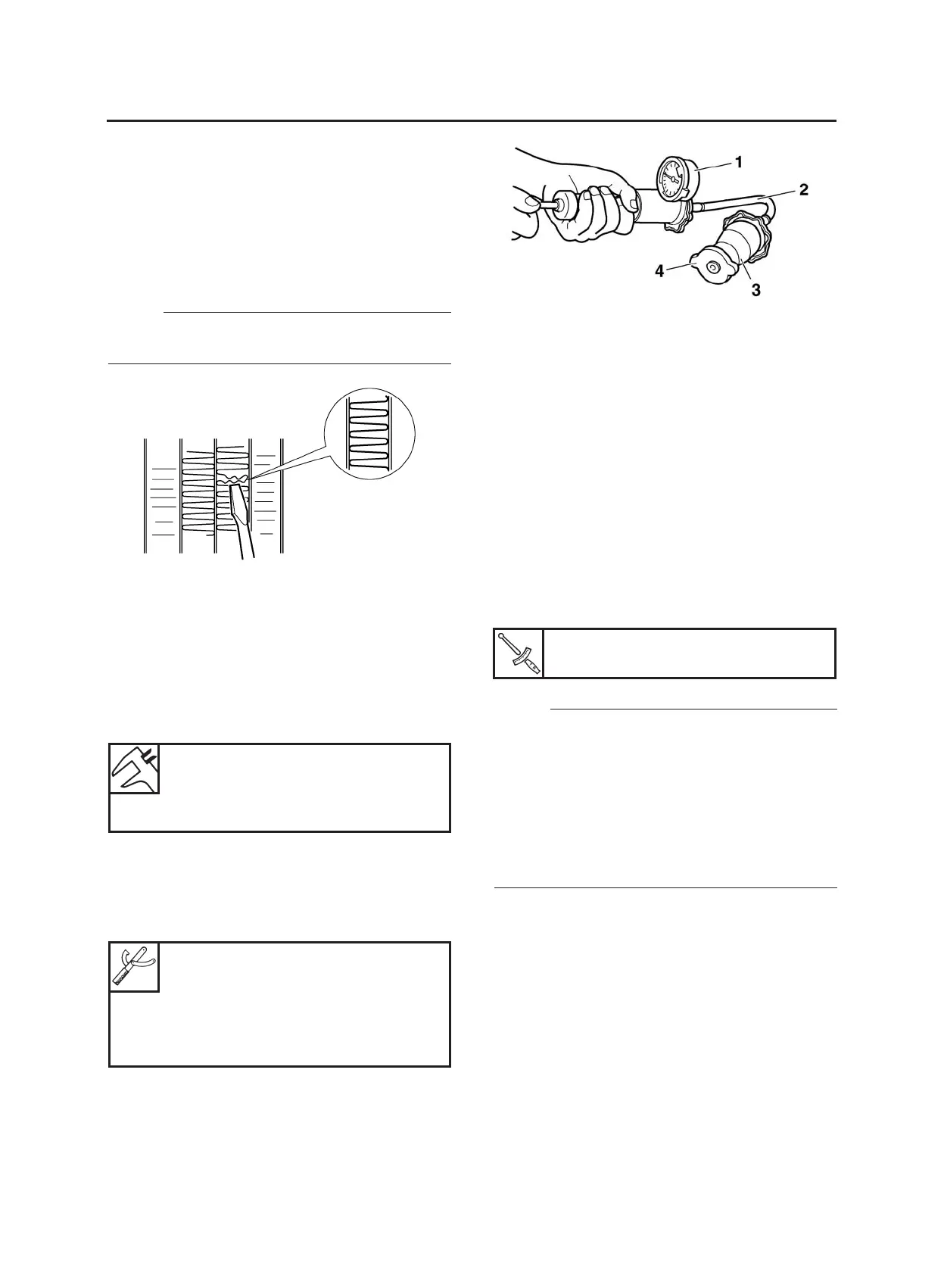

CHECKING THE RADIATOR
1. Check:
• Radiator fins
Obstruction → Clean.
Apply compressed air to the rear of the radi-
ator.
Damage → Repair or replace.
NOTE:
Straighten any flattened fins with a thin, flat-
head screwdriver.
2. Check:
• Radiator hoses
Cracks/damage → Replace.
3. Measure:
• Radiator cap opening pressure
Below the specified pressure → Replace the
radiator cap.
Radiator cap opening pressure
110.0-140.0 kPa
(1.10-1.40 kg/cm
2
,
16.0-20.3 psi)
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Install the radiator cap tester “1” and radiator
cap tester adaptor “2” and radiator cap tester
adaptor “3” to the radiator cap “4”.
b. Apply the specified pressure for ten sec-
onds and make sure there is no drop in
pressure.
4. Check:
• Radiator fan
Damage → Replace.
Malfunction → Check and repair.
Refer to “COOLING SYSTEM” on page 8-25.
EAS00456
INSTALLING THE RADIATOR
1. Install:
• Radiator inlet hose “1”
• Radiator outlet hose “2”
• Coolant throttle body hose “3”
• Coolant reservoir hose “4”
• Hose clamps “5”
NOTE:
• White painting mark “a” of hose shall be in-
stalled outside.
• Clamp portion “b” shall be set downward.
• Yellow painting mark of hose and this projec-
tion “c” shall be matched each other for in-
stalling.
• Head of clip “d” shall be installed outside.
• Head of clip “e” shall be installed lower side.
Radiator cap tester
90890-01325
Radiator cap tester adaptor
90890-01352
Radiator cap tester adaptor
90890-01497
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
Hose clamp
2 Nm (0.2 m·kg, 1.5 ft·lb)
