Yamaha XT660Z Tenere 2008 User Manual

3-28

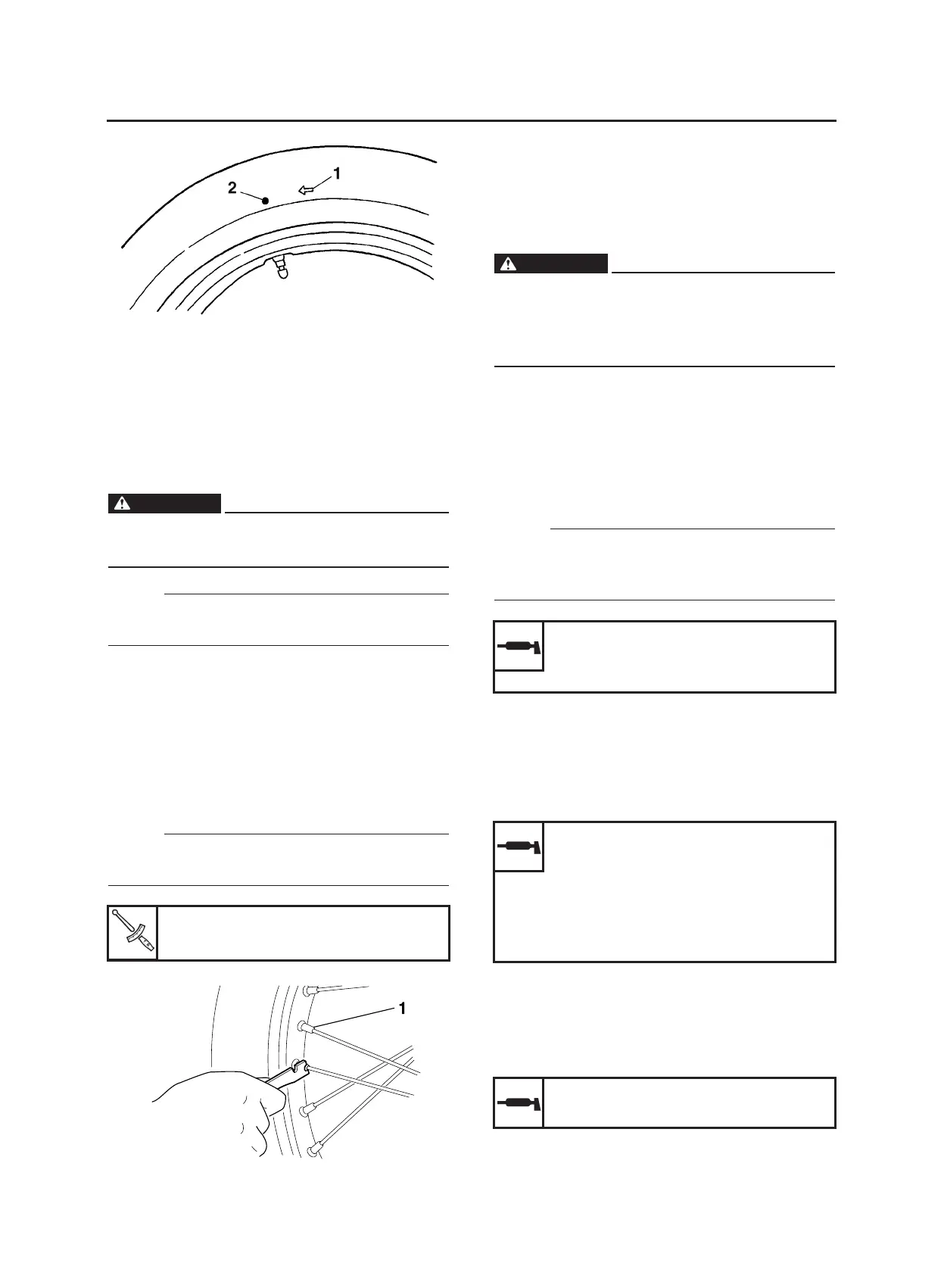

CHASSIS
CHECKING THE WHEELS
The following procedure applies to both of the
wheels.
1. Check:
• Wheel rim
Damage/out-of-round → Replace.
EWA13260
WARNING
Never attempt to make any repairs to the
rim.
NOTE:
After a tire or rim has been changed or re-
placed, always balance the wheel.
SPOKE INSPECTION AND TIGHTENING
1. Check:
• Spokes “1”
Curvature/Damaged → Replace.
Loose spoke → Tighten.
2. Tighten:
• Spoke (s)
NOTE:
Tighten the spokes before and after the break-
in period.
EAS00170
CHECKING AND LUBRICATING THE
CABLES
The following procedure applies to all of the in-
ner and outer cables.
WARNING
Damaged outer cable may cause the cable
to corrode and interfere with its movement.
Replace damaged outer cable and inner
cables as soon as possible.
1. Check:
• Outer cable
Damage → Replace.
2. Check:
• Cable operation
Rough movement → Lubricate.
NOTE:
Hold the cable end upright and pour a few
drops of lubricant into the cable sheath or use
a suitable lubricating device.
EAS00171
LUBRICATING THE LEVERS AND
BRAKE PEDAL
Lubricate the pivoting point and metal-to-metal
moving parts of the levers and brake pedal.
EAS00172
LUBRICATING THE SIDESTAND
Lubricate the pivoting point and metal-to-metal
moving parts of the sidestand.
Recommended lubricant
Lithium-soap-based grease
Recommended lubricant
Engine oil or a suitable cable
lubricant
Recommended lubricants
Brake lever
Silicone grease
Clutch lever
Lithium-soap-based grease
Brake pedal
Silicone grease
Spoke
3 Nm (0.3 m·kg, 2.1 ft·lb)

Yamaha XT660Z Tenere 2008 Specifications

General

Displacement	660cc
Compression Ratio	10.0:1
Maximum Power	35.0 kW (48 PS) @ 6, 000 rpm
Fuel System	Fuel injection
Ignition System	TCI
Starter System	Electric
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Front Tire	90/90-21
Rear Tire	130/80-17
Seat Height	895 mm
Dry Weight	183 kg
Front Suspension Travel	210 mm
Rear Suspension Travel	200 mm
Height	1, 477 mm
Wheelbase	1, 505 mm
Ground Clearance	260 mm
Engine Type	Single cylinder, 4-stroke, SOHC, 4 valves
Bore x Stroke	100 mm x 84 mm
Rear Suspension	Swingarm
Rear Brake	Single disc, Ø 245 mm
Fuel Capacity	22 litres
Wet Weight	206 kg
Front Brake Disc	298 mm
Rear Brake Disc	245 mm
Width	865 mm
Length	2, 246 mm
