Yamaha YZ250FX 2019 User Manual

REAR WHEEL
4-7
EAM20096

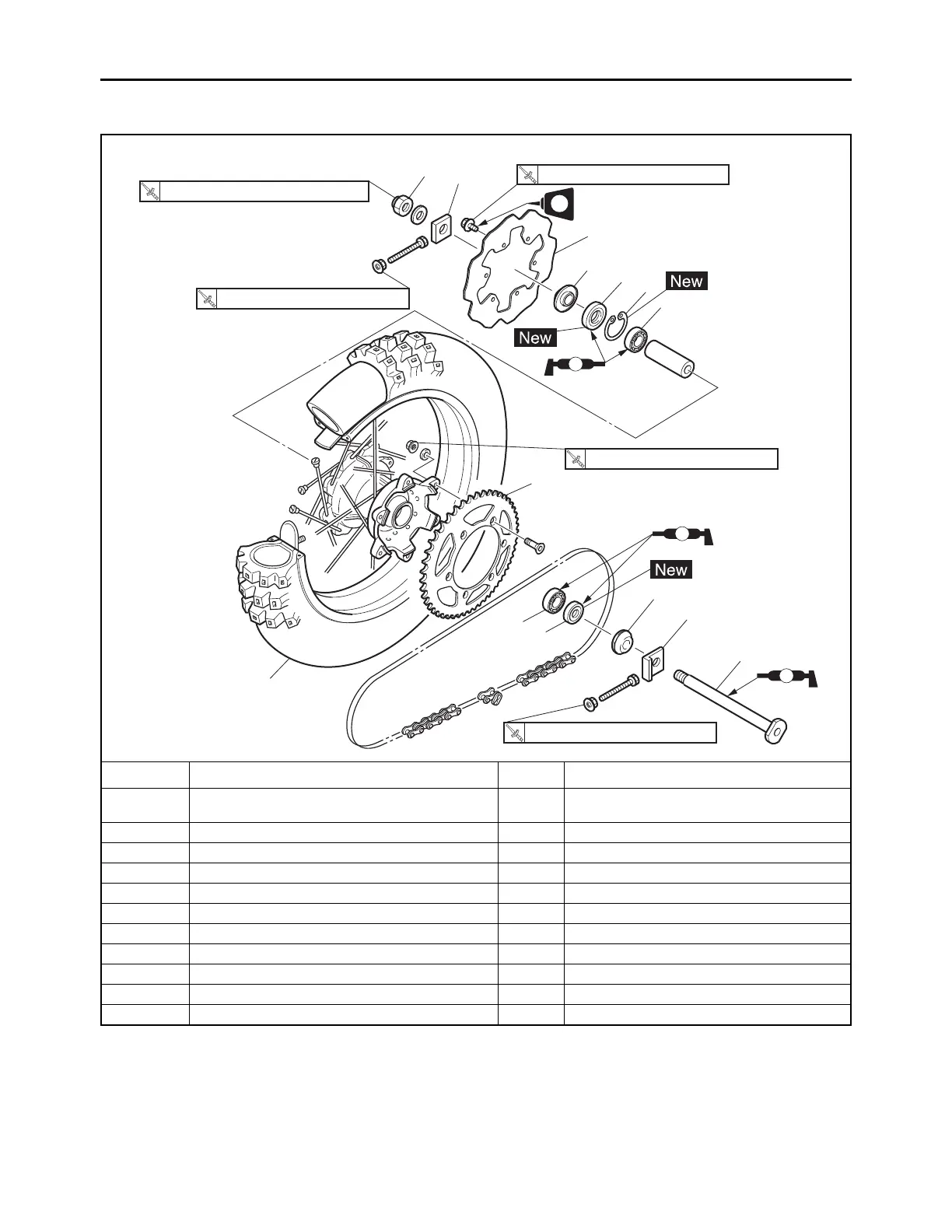

REAR WHEEL
Removing the rear wheel
Order Job/Parts to remove Q’ty Remarks
Use a maintenance stand to raise the rear
wheel off the ground.
1 Nut (rear wheel axle) 1
2 Rear wheel axle 1
3 Drive chain puller 2
4 Rear wheel 1
5 Collar 2
6 Rear wheel sprocket 1
7 Oil seal 2
8 Circlip 1
9 Bearing 2
10 Brake disc 1
(6)
2
5
7
9
LS
LS
(6)
4
6
1
(6)
3
LS
8
9
10
7
5
LT
3
21 N・m (2.1 kgf・m, 15 lb・ft)
21 N・m (2.1 kgf・m, 15 lb・ft)
125 N・m (12.5 kgf・m, 92 lb・ft)
50 N・m (5.0 kgf・m, 37 lb・ft)
14 N・m (1.4 kgf・m, 10 lb・ft)

Yamaha YZ250FX 2019 Specifications

General

Displacement	250cc
Bore x Stroke	77.0mm x 53.6mm
Fuel System	Yamaha Fuel Injection (YFI), Keihin® 44mm
Ignition	TCI: Transistor Controlled Ignition
Final Drive	Chain
Front Brake	Hydraulic disc, 270mm
Rear Brake	Hydraulic disc, 245mm
Seat Height	37.6 in
Ground Clearance	12.8 in
Fuel Capacity	2.1 gal
Wet Weight	249 lb
Engine Type	Liquid-cooled DOHC 4-stroke
Transmission	Wide-ratio 6-speed; multiplate wet clutch
Front Suspension	KYB® spring-type fork, fully adjustable
Rear Suspension	KYB® single shock
L x W x H	32.5 in
Front Tire	90/90-21
Rear Tire	110/100-18
