Yamaha YZ250FX 2019 User Manual

KICKSTARTER KIT (OPTIONAL PARTS)
10-11
EAM30394
SETUP PROCEDURES

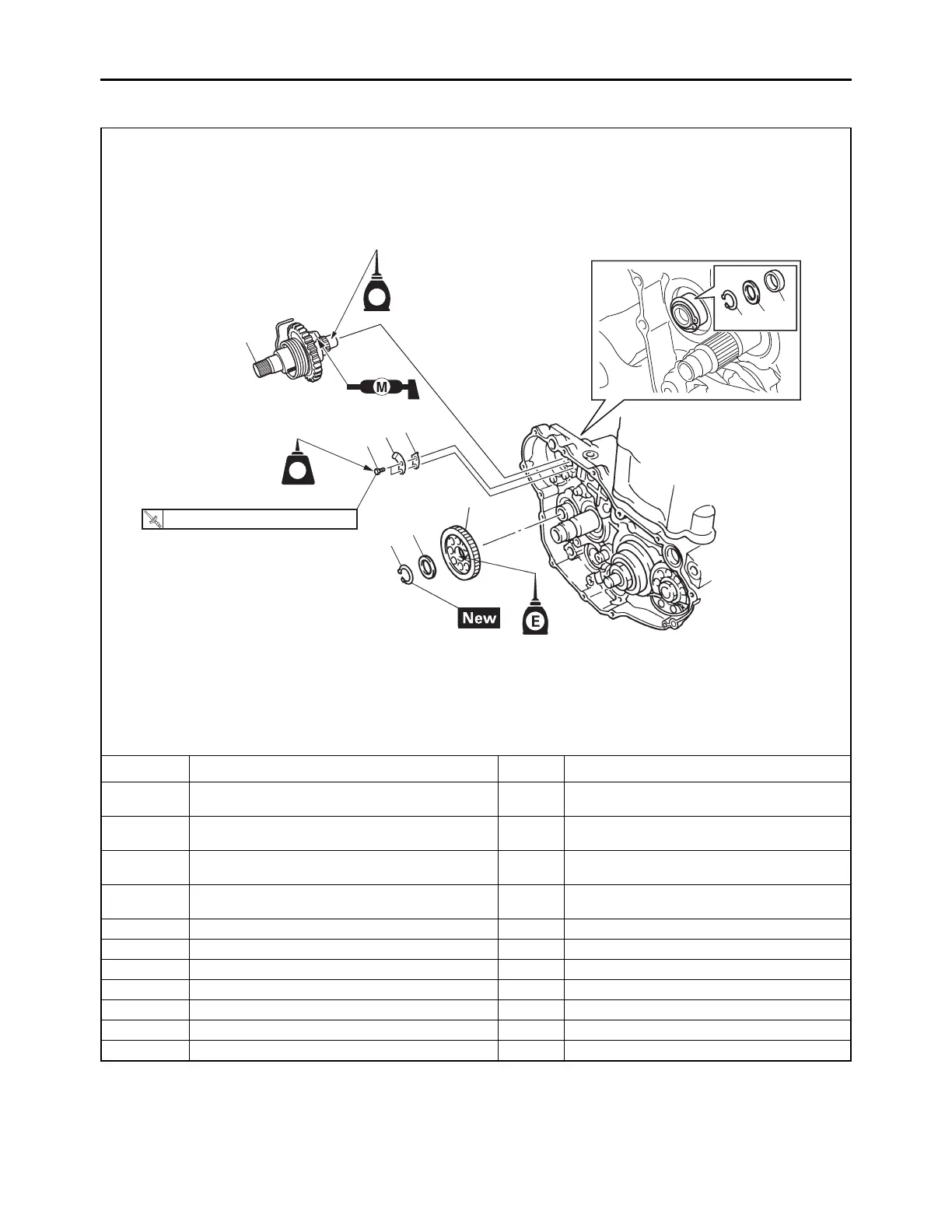

Installing the kick shaft
Order Part name Q’ty Remarks
Clutch and right crankcase cover
Remove.
Refer to “CLUTCH” on page 5-39.
1 Circlip 1
Remove.
Do not use the circlip installed originally.
2 Washer 1
Remove.
Do not use the washer installed originally.
3 Collar 1
Remove.
Do not use the collar installed originally.
4 Stopper 1
5 Ratchet wheel guide 1
6Bolt 2
7 Kick idle gear 1
8 Washer 1
9 Circlip 1
10 Kick shaft assembly 1
E
3
2
1
6
5
4
7
8
9
10
LT
12 N・m (1.2 kgf・m, 8.9 lb・ft)
