ENGINE
3-7
EAM20135
ENGINE
EAM30210

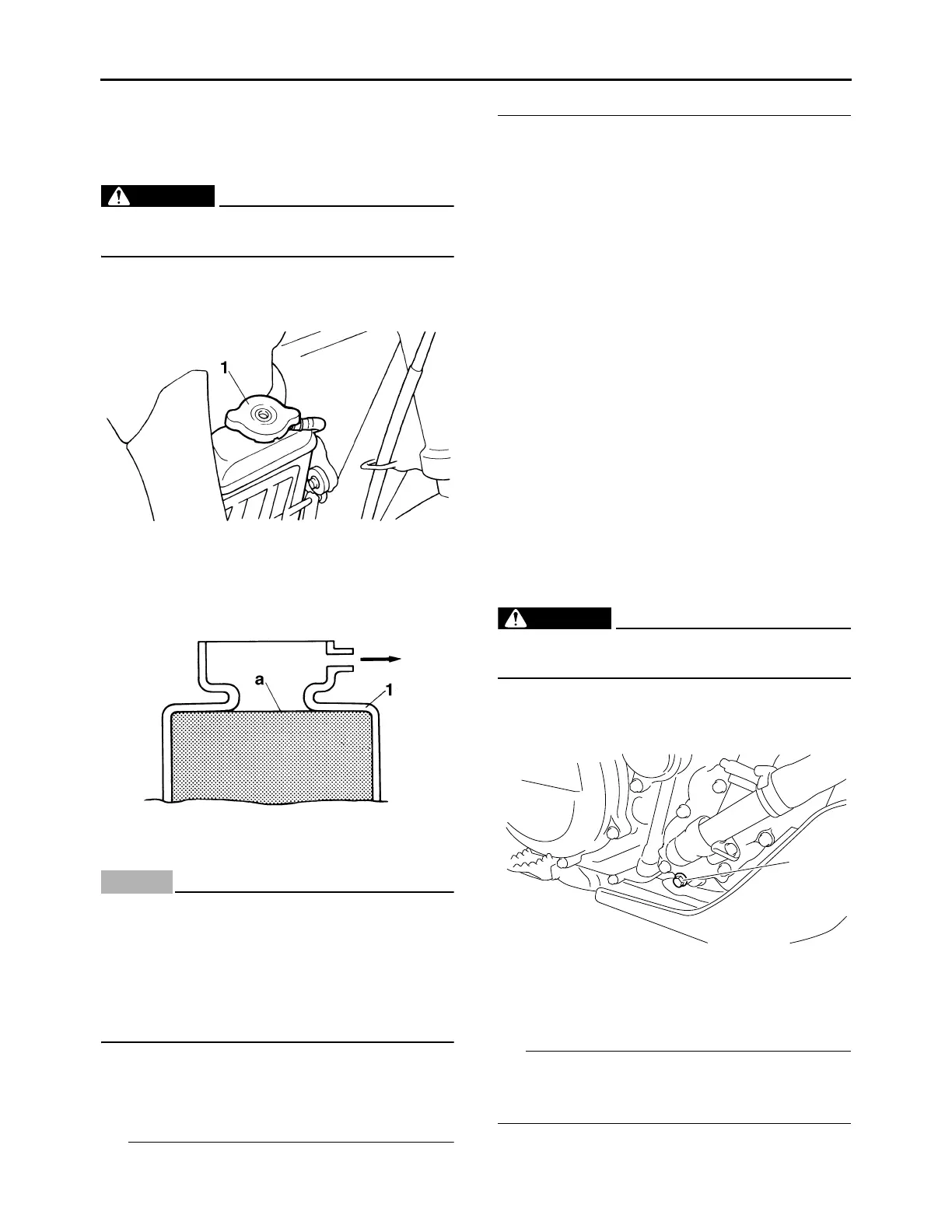

CHECKING THE COOLANT LEVEL
EWA19070
If coolant seems hot, do not remove the radi-
ator cap.
1. Stand the vehicle upright on a level surface.
2. Remove:
• Radiator cap “1”
3. Check:
• Coolant level
Maximum level “a” or below Add coolant
up to the maximum level.
ECA24260
• Adding water instead of coolant lowers the
antifreeze content. If, therefore, water is
used instead of coolant, check, and if nec-
essary, adjust the antifreeze concentration.
• Use only distilled water. However, if dis-
tilled water is not available, soft water may
be used.
4. Start the engine, warm this up for 3 minutes,
and then stop it.
5. Check:
• Coolant level
Before checking the coolant level, wait a few
minutes until the coolant has settled.
EAM30211
CHECKING THE COOLING SYSTEM
1. Remove:
• Seat
• Side cover (left/right)
• Air scoop (left/right)
Refer to “GENERAL CHASSIS” on page 4-1.
• Air filter case cover
Refer to “THROTTLE BODY” on page 7-6.
2. Check:
• Radiator
• Radiator hose
Crack/damage Replace.
Refer to “RADIATOR” on page 6-1.
3. Install:
• Air filter case cover
Refer to “THROTTLE BODY” on page 7-6.
• Air scoop (left/right)
• Seat
• Side cover (left/right)
Refer to “GENERAL CHASSIS” on page 4-1.
EAM30212
CHANGING THE COOLANT
EWA19080
If coolant seems hot, do not remove the radi-
ator cap.
1. Place a container under the engine.
2. Remove:
• Coolant drain bolt “1”
3. Remove:
• Radiator cap
Slowly loosen the radiator cap to drain cool-
ant.
When the radiator cap is loosened, coolant will
gush out transversely; therefore, bring the con-
tainer near to the outlet.
4. Thoroughly flush the cooling system with
clean tap water.
1. Radiator
