CONTROL FUNCTIONS
1-17
EAM20122
CONTROL FUNCTIONS
EAM30400
WARNING LIGHTS
Engine trouble warning light “ ”
This warning light comes on or flashes if a prob-
lem is detected in the electrical circuit monitoring
the engine. If this occurs, have a Yamaha dealer
check the vehicle.
The electrical circuit of the warning light can be
checked by pushing the start switch. The warn-
ing light should come on for a few seconds, and
then go off.
If the warning light does not come on initially
when the start switch is pushed, or if the warning
light remains on, have a Yamaha dealer check
the electrical circuit.
Fuel level warning light “ ”
This warning light comes on when the fuel level
drops below approximately 2.1 L (0.55 US gal,
0.46 Imp.gal). When this occurs, refuel as soon
as possible.
The electrical circuit of the warning light can be
checked by pushing the start switch. The warn-
ing light should come on for a few seconds, and
then go off.
If the warning light does not come on initially
when the start switch is pushed, or if the warning
light remains on, have a Yamaha dealer check
the electrical circuit.
EAM30182
ENGINE STOP SWITCH
The engine stop switch “1” is located on the left
handlebar. Continue pushing the engine stop
switch till the engine comes to a stop.
EAM30183
START SWITCH
The start switch “1” is located on the right han-
dlebar. Push this switch to crank the engine with
the starter.
EAM30184
CLUTCH LEVER
The clutch lever “1” is located on the left handle-
bar. The clutch lever disengages or engages the
clutch.
Pull the clutch lever toward the handlebar to dis-
engage the clutch, and release the lever to en-
gage the clutch.
EAM30185
SHIFT PEDAL
The shift pedal “1” has adopted a method of 1
down & 5 ups (press-down & kick-ups).
Press it down for N (neutral) to 1st, and kick it up
for 2nd to 6th.

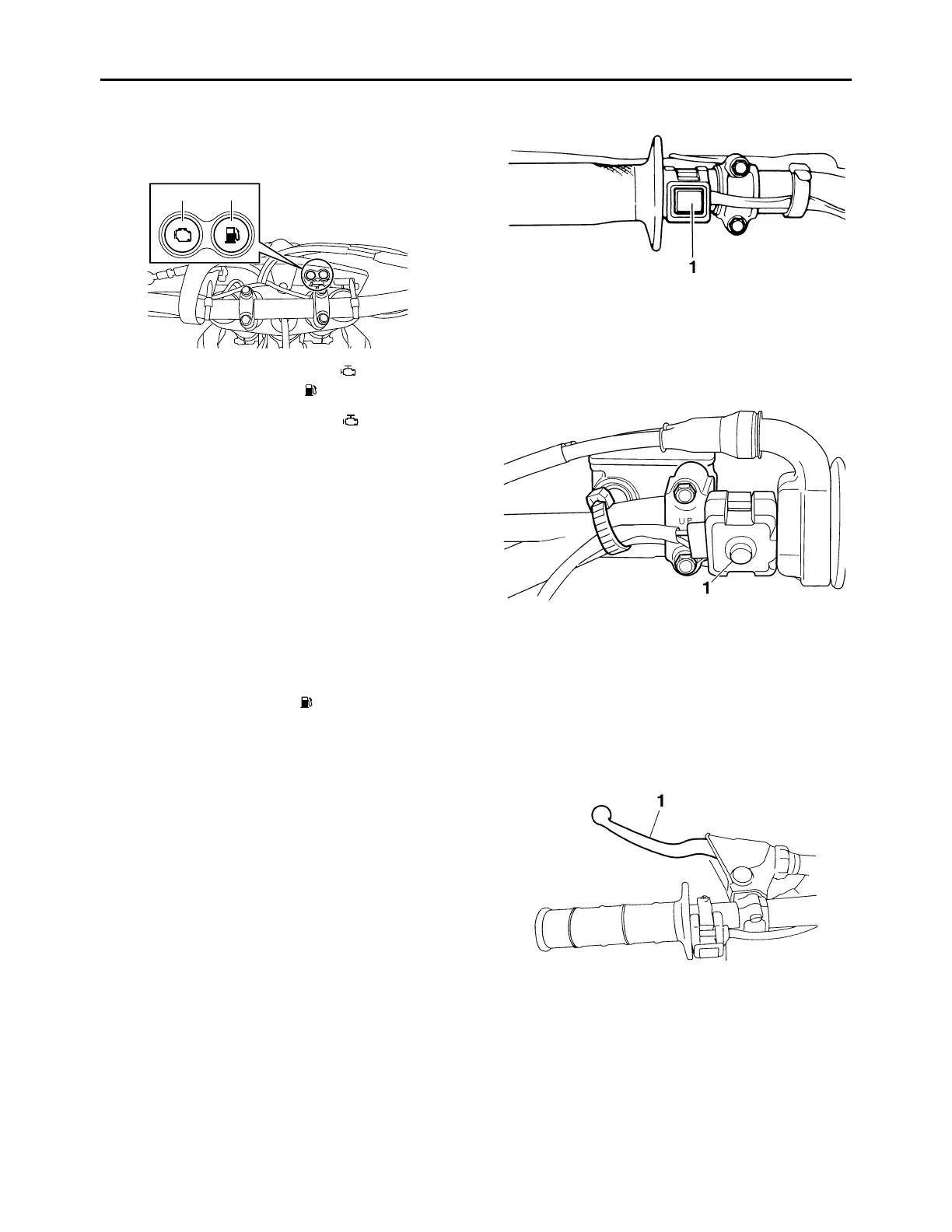

1. Engine trouble warning light “ ”
2. Fuel level warning light “ ”
