Yamaha YZ250FX 2019 User Manual

REAR BRAKE
4-29
4. Check:
• Brake hose
Cracks/damage/wear  Replace.
EAM30050

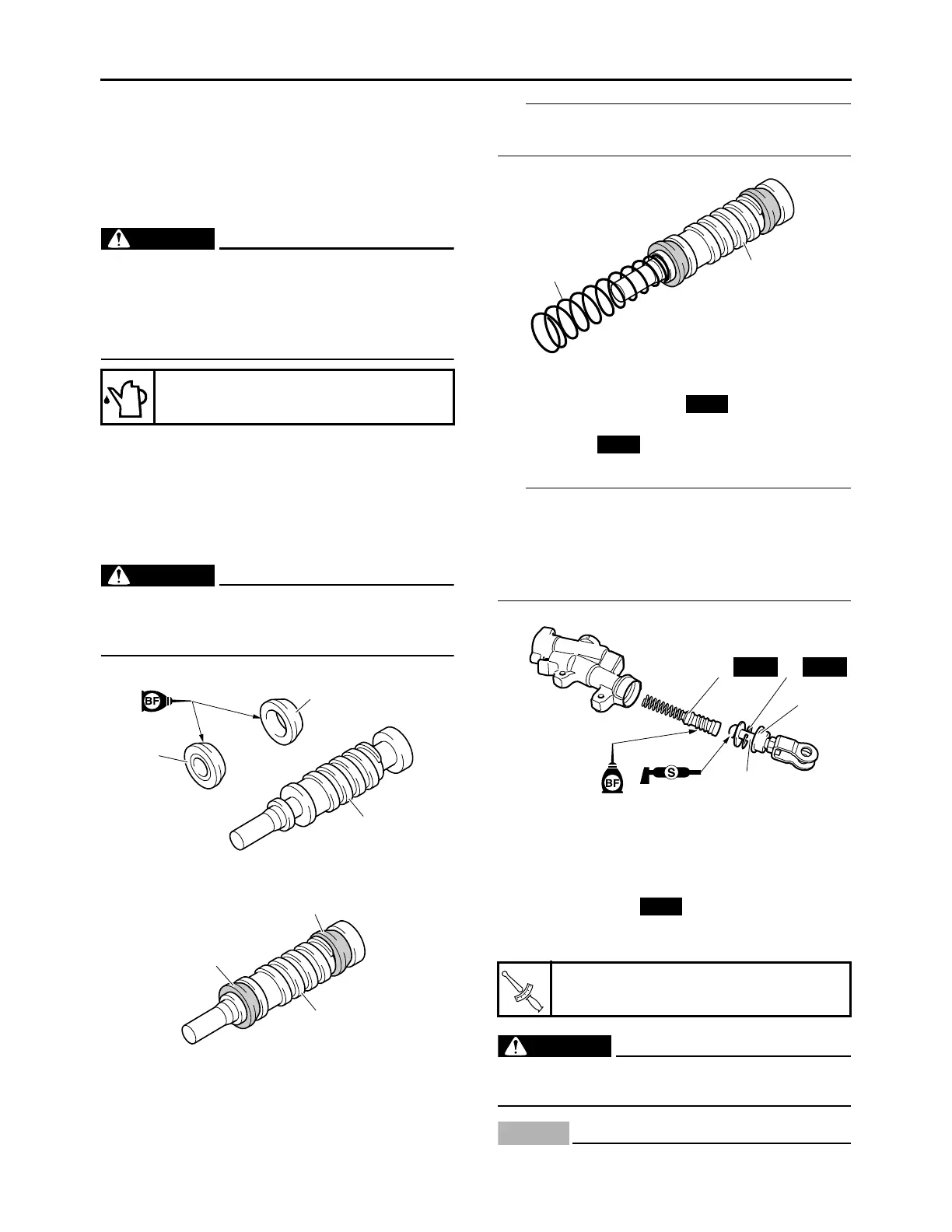

ASSEMBLING THE REAR BRAKE MASTER
CYLINDER
WARNING
EWA13520
• Before installation, all internal brake com-
ponents should be cleaned and lubricated
with clean or new brake fluid.
• Never use solvents on internal brake com-
ponents.
1. Wash the brake master cylinder and the
brake master cylinder kit with brake fluid.
2. Install:
• Primary cylinder cup “1”
• Secondary cylinder cup “2”
Install to the brake master cylinder piston “3”.
WARNING
EWA19300
Apply brake fluid to the cylinder cups and in-
stall them as shown. Wrong orientation in in-
stallation causes poor braking performance.
3. Install:
• Spring “1”
Install to the brake master cylinder piston “2”.
TIP
Install the spring with a smaller inside diameter
to the brake master cylinder piston.
4. Install:
• Master cylinder kit “1”
• Push rod “2”
• Circlip “3”
• Dust boot “4”
TIP
• Before installation, apply brake fluid to the
brake master cylinder kit.
• Before installation, apply silicone grease to the
push rod end.
• Use circlip pliers to install the circlip.
EAM30051
INSTALLING THE REAR BRAKE MASTER
CYLINDER
1. Install:
• Copper washer
• Brake hose
• Union bolt
WARNING
EWA13531
Proper brake hose routing is essential to in-
sure safe vehicle operation.
NOTICE
ECA24500
Make sure that the pipe portion of the brake
Specified brake fluid
DOT 4
2
3
1
2
3
1
Brake hose union bolt
30 N·m (3.0 kgf·m, 22 lb·ft)
1
2
New
New
1
3
4
2
New New
New
T
R
.
.

Yamaha YZ250FX 2019 Specifications

General

Displacement	250cc
Bore x Stroke	77.0mm x 53.6mm
Fuel System	Yamaha Fuel Injection (YFI), Keihin® 44mm
Ignition	TCI: Transistor Controlled Ignition
Final Drive	Chain
Front Brake	Hydraulic disc, 270mm
Rear Brake	Hydraulic disc, 245mm
Seat Height	37.6 in
Ground Clearance	12.8 in
Fuel Capacity	2.1 gal
Wet Weight	249 lb
Engine Type	Liquid-cooled DOHC 4-stroke
Transmission	Wide-ratio 6-speed; multiplate wet clutch
Front Suspension	KYB® spring-type fork, fully adjustable
Rear Suspension	KYB® single shock
L x W x H	32.5 in
Front Tire	90/90-21
Rear Tire	110/100-18
