Yamaha YZ250FX 2019 User Manual

KICKSTARTER KIT (OPTIONAL PARTS)
10-12
EAM30447

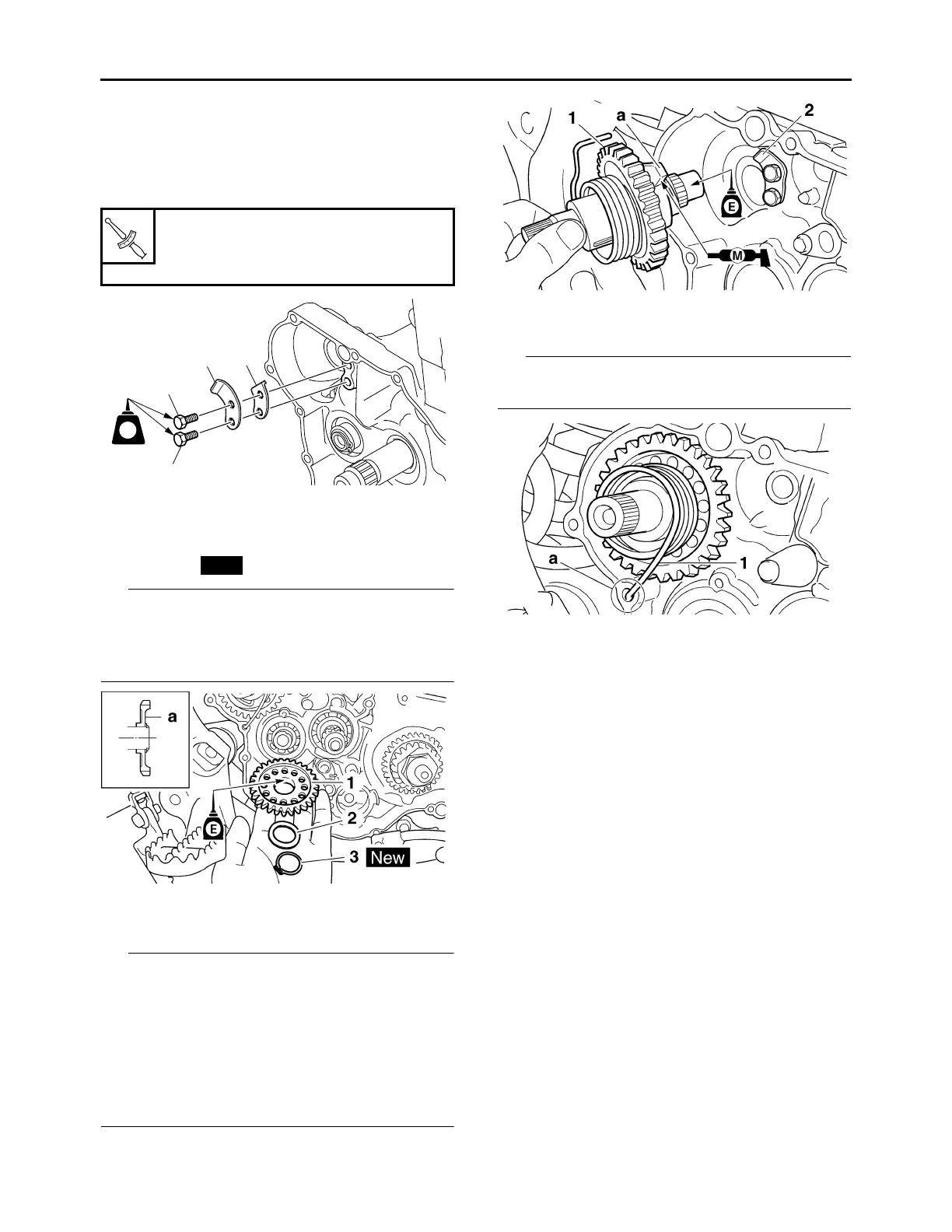

INSTALLING THE KICK SHAFT
1. Install:
• Stopper “1”
• Ratchet wheel guide “2”
• Bolt (ratchet wheel guide) “3”
2. Install:
• Kick idle gear “1”
• Washer “2”
• Circlip “3”
TIP
• Apply the engine oil on the kick idle gear inner
circumference.
• Install the kick idle gear with its depressed side
“a” toward you.
3. Install:
• Kick shaft assembly “1”
TIP
• Before installation, apply molybdenum disul-
fide grease to the contacting surfaces of the
kick shaft ratchet wheel guide “2” and the kick
shaft stopper “a”.
• Apply the engine oil on the kick shaft.
• Slide the kick shaft assembly into the crank-
case and make sure the kick shaft stopper “a”
fits into the kick shaft ratchet wheel guide.
4. Install:
• Torsion spring “1”
TIP
Turn the torsion spring clockwise and hook into
the proper hole “a” in the crankcase.
Bolt (ratchet wheel guide)
12 N·m (1.2 kgf·m, 8.9 lb·ft)
LOCTITE®
T
R
.
.
3
3
1
LT
2
New

Yamaha YZ250FX 2019 Specifications

General

Displacement	250cc
Bore x Stroke	77.0mm x 53.6mm
Fuel System	Yamaha Fuel Injection (YFI), Keihin® 44mm
Ignition	TCI: Transistor Controlled Ignition
Final Drive	Chain
Front Brake	Hydraulic disc, 270mm
Rear Brake	Hydraulic disc, 245mm
Seat Height	37.6 in
Ground Clearance	12.8 in
Fuel Capacity	2.1 gal
Wet Weight	249 lb
Engine Type	Liquid-cooled DOHC 4-stroke
Transmission	Wide-ratio 6-speed; multiplate wet clutch
Front Suspension	KYB® spring-type fork, fully adjustable
Rear Suspension	KYB® single shock
L x W x H	32.5 in
Front Tire	90/90-21
Rear Tire	110/100-18
