REAR BRAKE
4-26

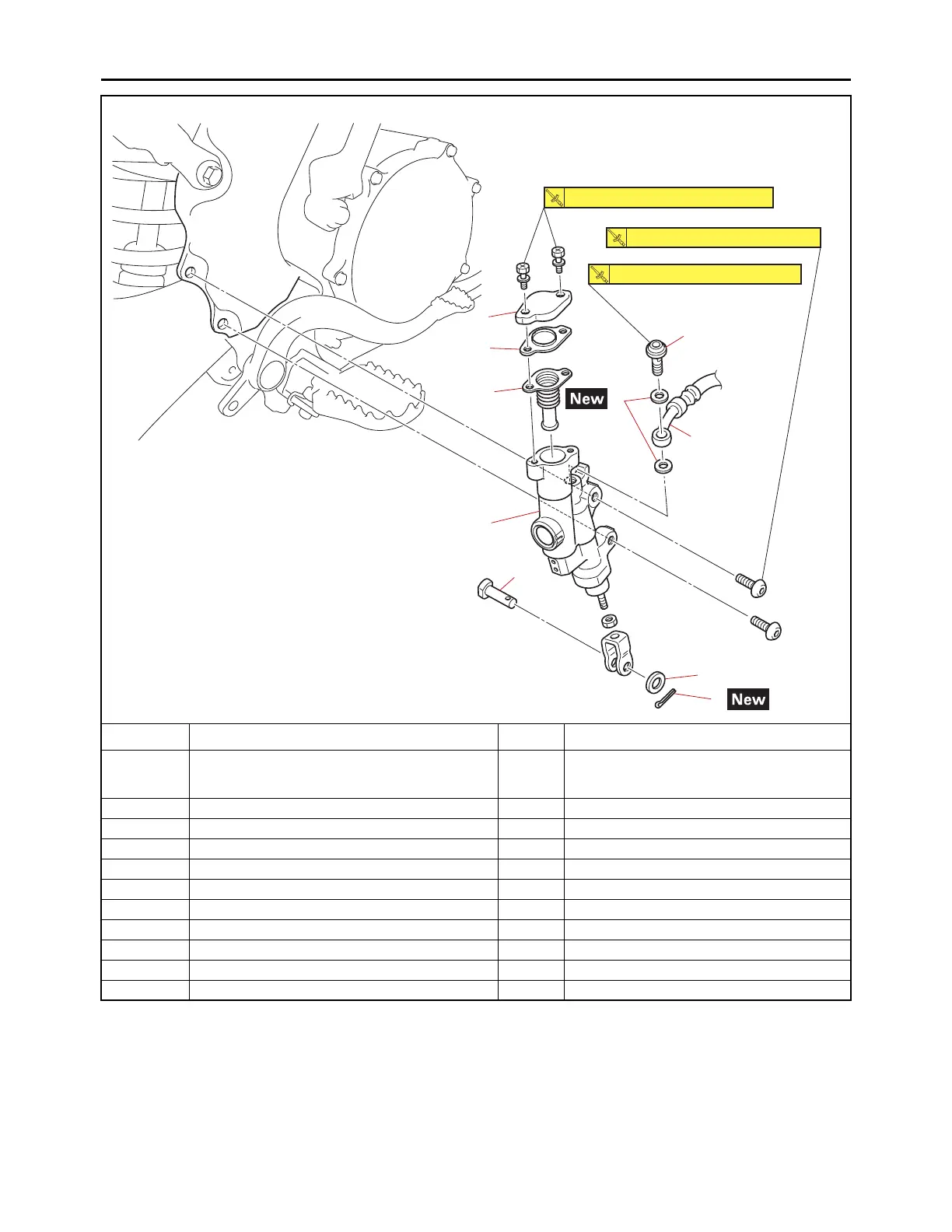

Removing the rear brake master cylinder
Order Job/Parts to remove Q’ty Remarks
Brake fluid
Drain.
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM” on page 3-25.
1 Union bolt 1
2 Copper washer 2
3 Brake hose 1
4 Split pin 1
5 Washer 1
6Pin 1
7 Brake master cylinder reservoir cap 1
8 Brake master cylinder reservoir diaphragm plate 1
9 Brake master cylinder reservoir diaphragm 1
10 Rear brake master cylinder 1
1
2
3
4
7
5
8
6
9
10
30 N・m (3.0 kgf・m, 22 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
1.5 N・m (0.15 kgf・m, 1.1 lb・ft)
To Next Page
