OIL PUMP
5-59
EAM20182
OIL PUMP

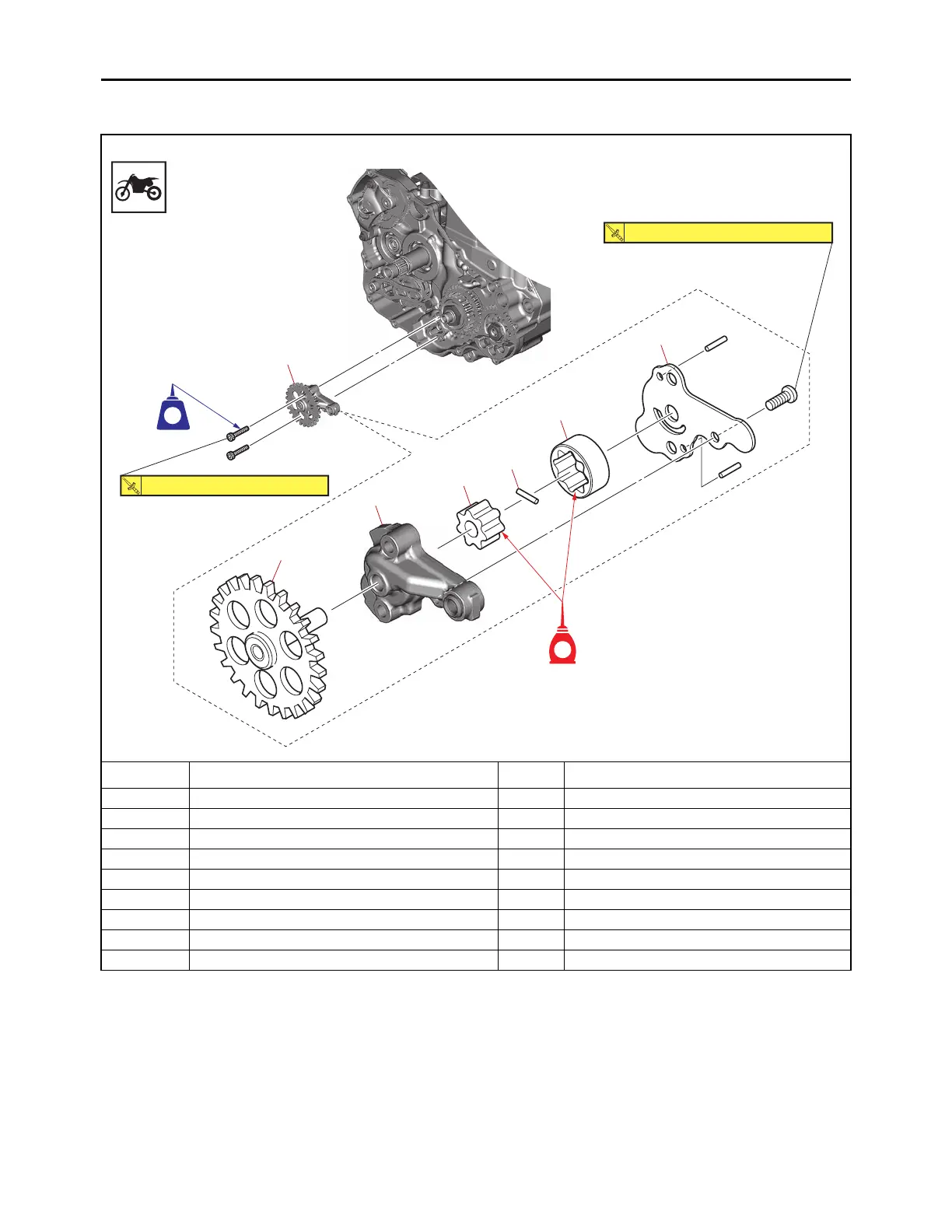

Removing the oil pump
Order Job/Parts to remove Q’ty Remarks
Primary driven gear Refer to “CLUTCH” on page 5-47.
Right crankcase cover Refer to “CLUTCH” on page 5-47.
1 Oil pump assembly 1
2 Oil pump cover 1
3 Outer rotor 1
4 Dowel pin 1
5 Inner rotor 1
6 Oil pump drive shaft 1
7 Oil pump housing 1
LT
E
3
2
1
4
5
7
6
5 N・m (0.5 kgf・m, 3.7 lb・ft)
2.0 N・m (0.20 kgf・m, 1.5 lb・ft)
To Next Page
