ENGINE REMOVAL
5-6
EAM20105
ENGINE REMOVAL

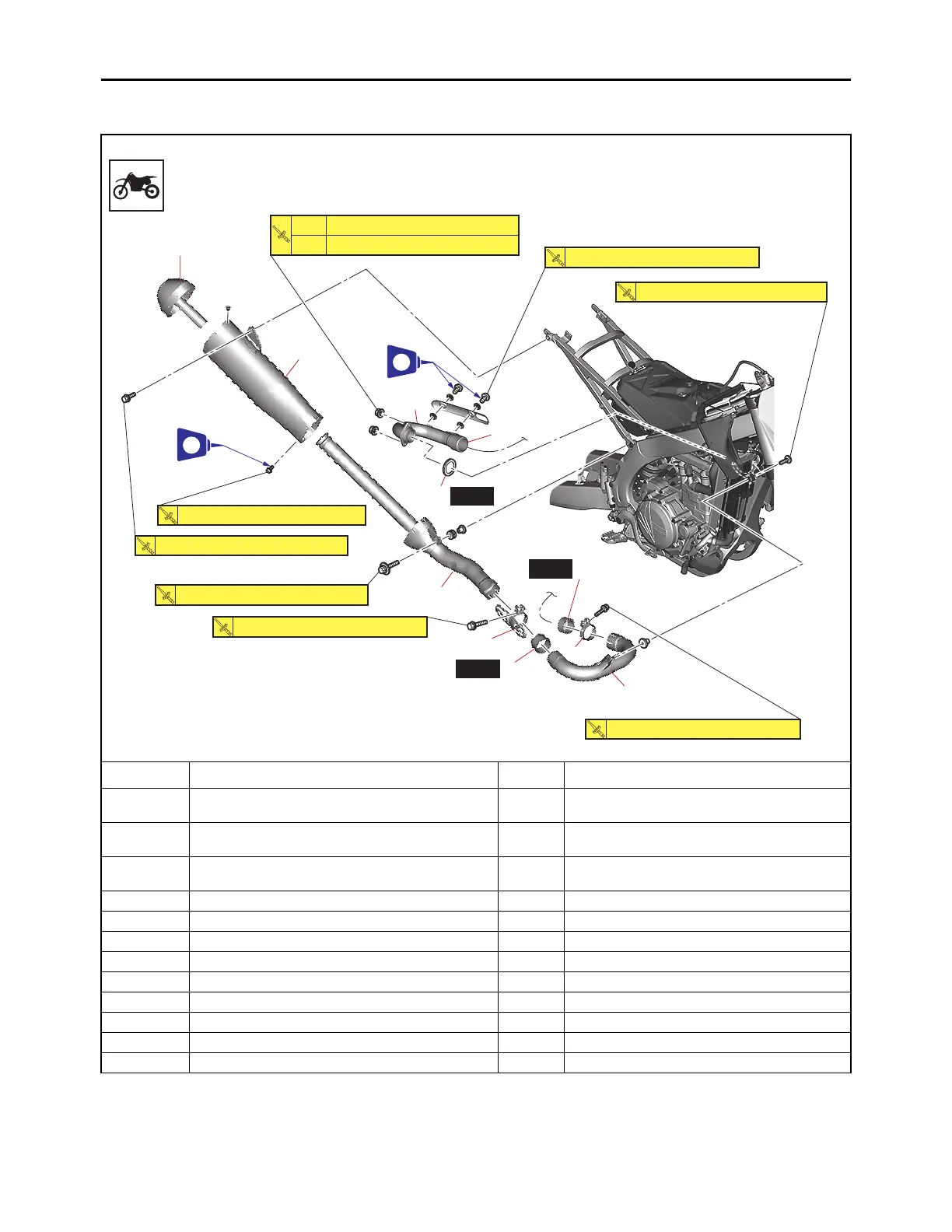

Removing the exhaust pipe
Order Job/Parts to remove Q’ty Remarks
Side cover (right)
Refer to “GENERAL CHASSIS” on page
4-1.
Rear shock absorber assembly lower bolt
Refer to “REAR SHOCK ABSORBER
ASSEMBLY” on page 4-59.
Connecting arm bolt (frame side)
Refer to “REAR SHOCK ABSORBER
ASSEMBLY” on page 4-59.
1 Silencer clamp 1 Loosen.
2 Silencer 1
3 Exhaust pipe 2 clamp 1 Loosen.
4 Exhaust pipe 2 1
5 Exhaust pipe 1 1
6Gasket 3
7 Exhaust pipe 1 protector 1
8 Silencer body 1
9 Silencer cap 1
9
5
8
2
6
1
6
6
3
4
7
(8)
(6)
New
New
New
LT
LT
1st
2nd
7 N・m (0.7 kgf・m, 5.2 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
30 N・m (3.0 kgf・m, 22 lb・ft)
30 N・m (3.0 kgf・m, 22 lb・ft)
30 N・m (3.0 kgf・m, 22 lb・ft)
20 N・m (2.0 kgf・m, 15 lb・ft)
12 N・m (1.2 kgf・m, 8.9 lb・ft)
12 N・m (1.2 kgf・m, 8.9 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
8 N・m (0.8 kgf・m, 5.9 lb・ft)
To Next Page
