THROTTLE BODY
7-4
EAM20141

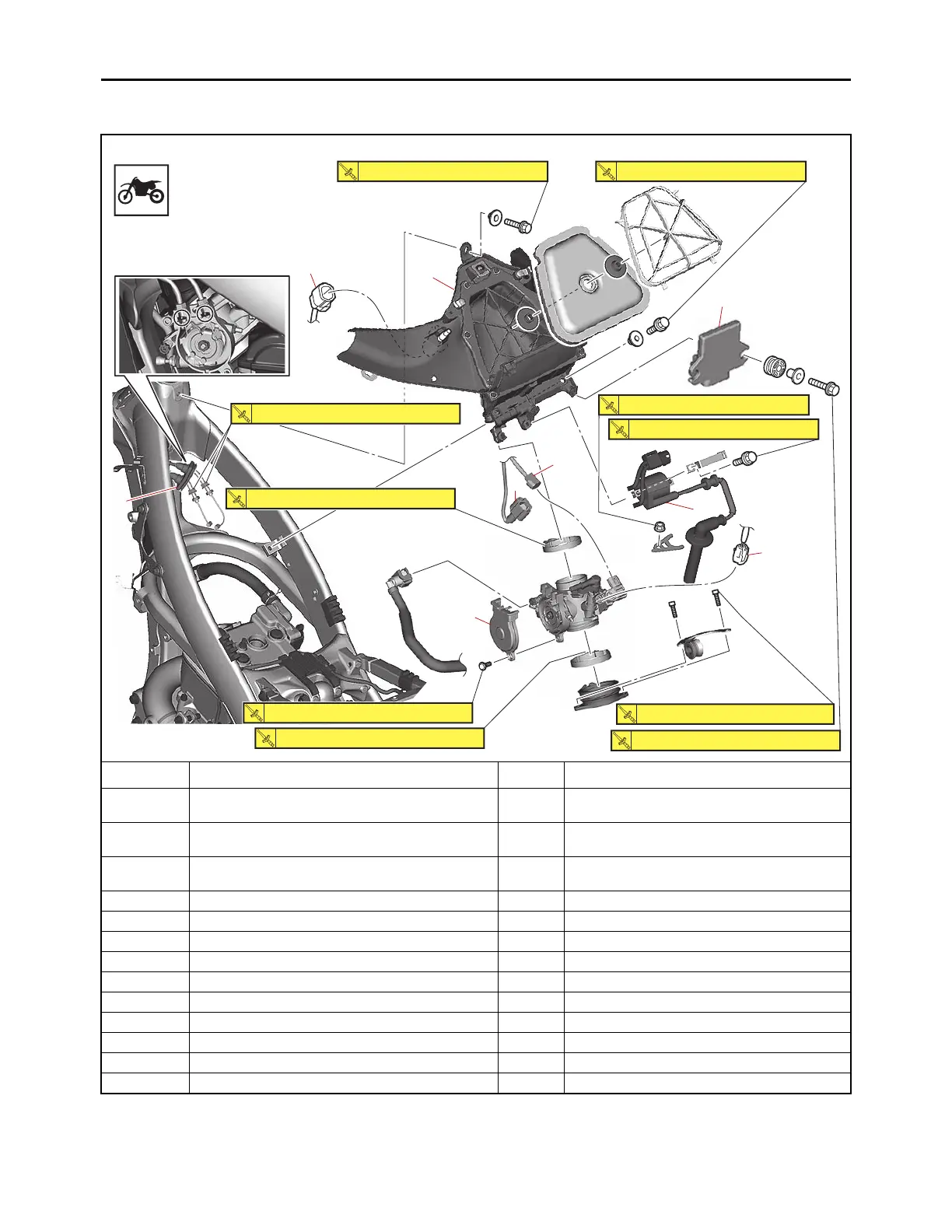

THROTTLE BODY
Removing the throttle body
Order Job/Parts to remove Q’ty Remarks
Seat/Air filter case cover
Refer to “GENERAL CHASSIS” on page
4-1.
Side cover (left/right)
Refer to “GENERAL CHASSIS” on page
4-1.
Air scoop (left/right)
Refer to “GENERAL CHASSIS” on page
4-1.
Fuel tank Refer to “FUEL TANK” on page 7-1.
1ECU 1
2 Ignition coil 1
3 Intake air temperature sensor coupler 1 Disconnect.
4 Air filter case 1
5 Fuel injector coupler 1 Disconnect.
6 Intake air pressure sensor coupler 1 Disconnect.
7 Throttle position sensor coupler 1 Disconnect.
8Cover 1
9 Throttle cable cover 1
3
2
1
7 N・m (0.7 kgf・m, 5.2 lb・ft)
3.8 N・m (0.38 kgf・m, 2.8 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft) 7 N・m (0.7 kgf・m, 5.2 lb・ft)
8 N・m (0.8 kgf・m, 5.9 lb・ft)
(2)
(2)
(2)
9
5
7
10 N・m (1.0 kgf・m, 7.4 lb・ft)
3.0 N・m (0.30 kgf・m, 2.2 lb・ft)
4.0 N・m (0.40 kgf・m, 3.0 lb・ft)
3.0 N・m (0.30 kgf・m, 2.2 lb・ft)
3.5 N・m (0.35 kgf・m, 2.6 lb・ft)
6
8
4
