HANDLEBAR
4-35
EAM20099

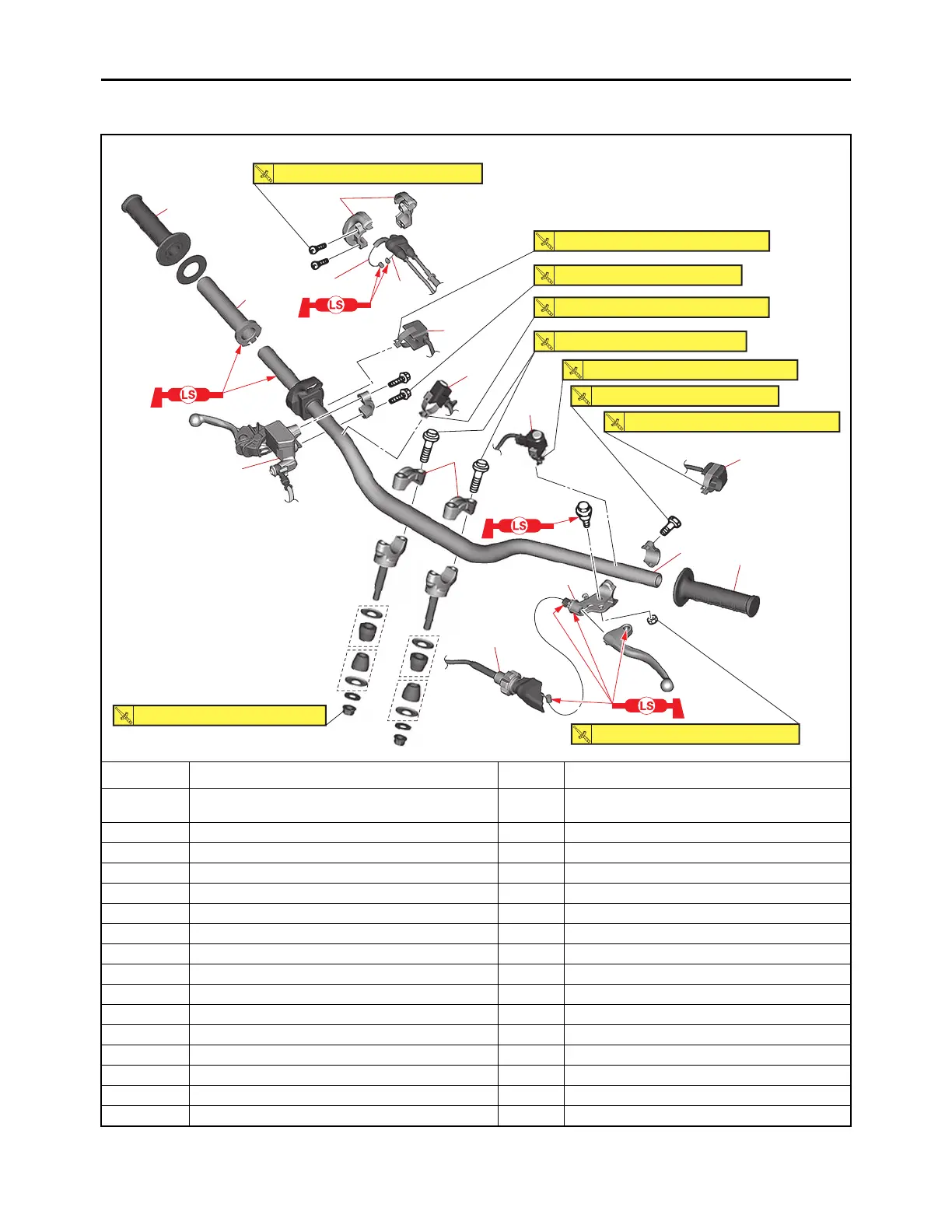

HANDLEBAR
Removing the handlebar
Order Job/Parts to remove Q’ty Remarks
Number plate
Refer to “GENERAL CHASSIS” on page
4-1.
1 Clutch cable 1 Disconnect.
2 Clutch lever holder 1
3 Engine stop switch 1
4 Mode switch 1
5 Brake master cylinder 1
6 Throttle cable cap 1
7 Throttle cable (pull) 1 Disconnect.
8 Throttle cable (return) 1 Disconnect.
9 Right grip 1
10 Tube guide 1
11 Start switch 1
12 Launch control switch 1
13 Left grip 1
14 Upper handlebar holder 2
15 Handlebar 1
13
3.8 N・m (0.38 kgf・m, 2.8 lb・ft)
1.3 N・m (0.13 kgf・m, 0.95 lb・ft)
5 N・m (0.5 kgf・m, 3.7 lb・ft)
0.5 N・m (0.05 kgf・m, 0.37 lb・ft)
0.5 N・m (0.05 kgf・m, 0.37 lb・ft)
28 N・m (2.8 kgf・m, 21 lb・ft)
4.0 N・m (0.40 kgf・m, 3.0 lb・ft)
40 N・m (4.0 kgf・m, 30 lb・ft)
9
8
7
5
4
1
2
3
10
11
14
15
6
9 N・m (0.9 kgf・m, 6.6 lb・ft)
1.3 N・m (0.13 kgf・m, 0.95 lb・ft)
12
