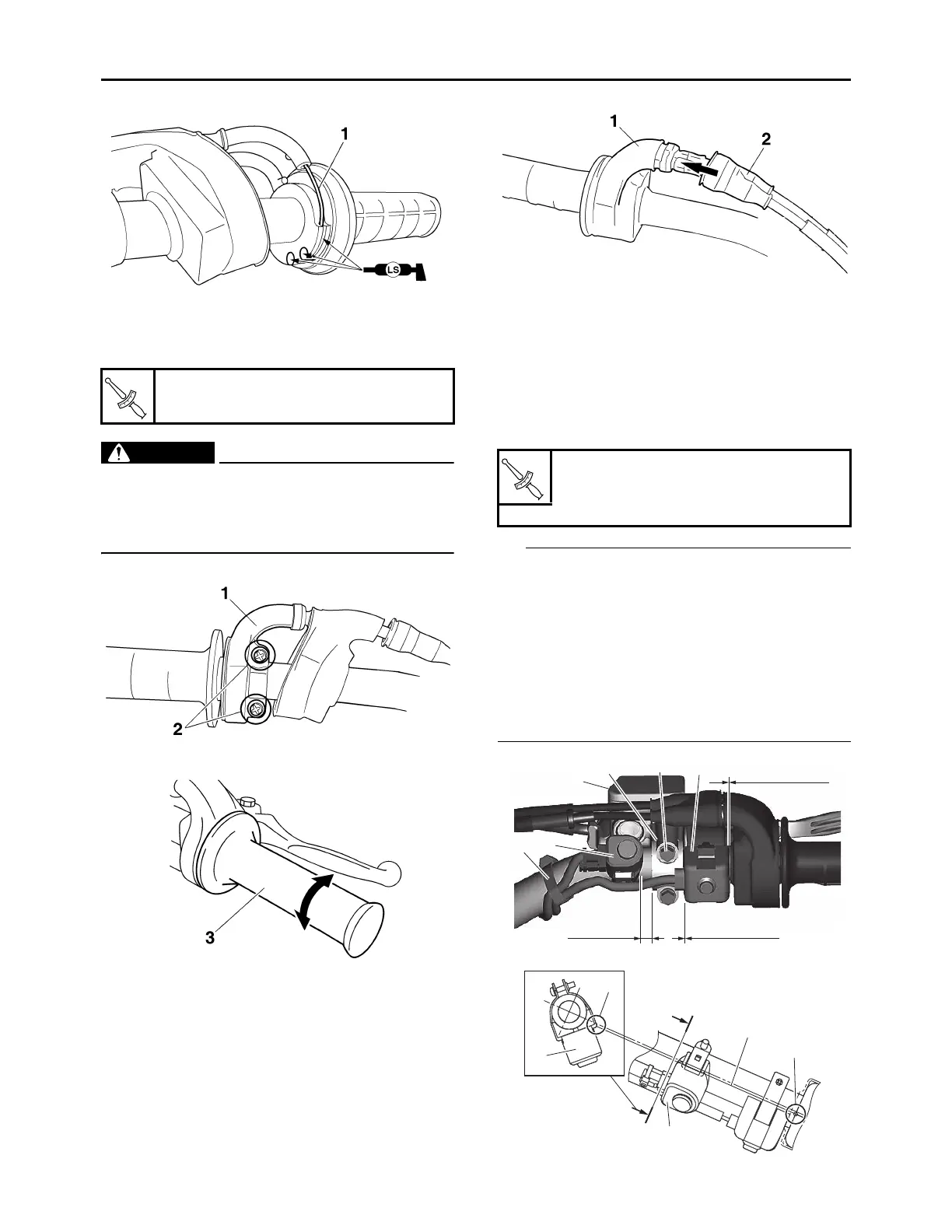

12.Install:
• Throttle cable housing “1”
• Screw (throttle cable housings) “2”
EWA19310
After tightening the throttle cable housing
screws, check that the throttle grip “3”
moves smoothly. If it does not, retighten the
screws for adjustment.
13.Install:
• Rubber cover “1”
• Cover (throttle cable housings) “2”
14.Install:
• Start switch “1”
• Front brake master cylinder assembly “2”
• Front brake master cylinder holder “3”
• Bolt (brake master cylinder holder) “4”
• Launch control switch “5”
• Clamp “6”
• Install the brake master cylinder holder with the
“UP” mark facing up.
• Install in order for the top of the front brake
master cylinder assembly to be level.
• First, tighten the upper bolt, then the lower bolt.
• Align the installation portion “a” of the clamp
with the line “c” on the painted portion “b” of the
handlebar, and then install the launch control
switch “5”.
Screw (throttle cable housings)
3.8 N·m (0.38 kgf·m, 2.8 lb·ft)
Front brake master cylinder hold-
er bolt
9 N·m (0.9 kgf·m, 6.6 lb·ft)
6mm
(0.24in)
0mm (0in)
0mm (0in)
2
6
1
5
3 4
5
5
a
b
c
