Yamaha YZ450F 2021 - Page 232

ELECTRIC STARTER
5-46
• Starter motor yoke “2”
TIP

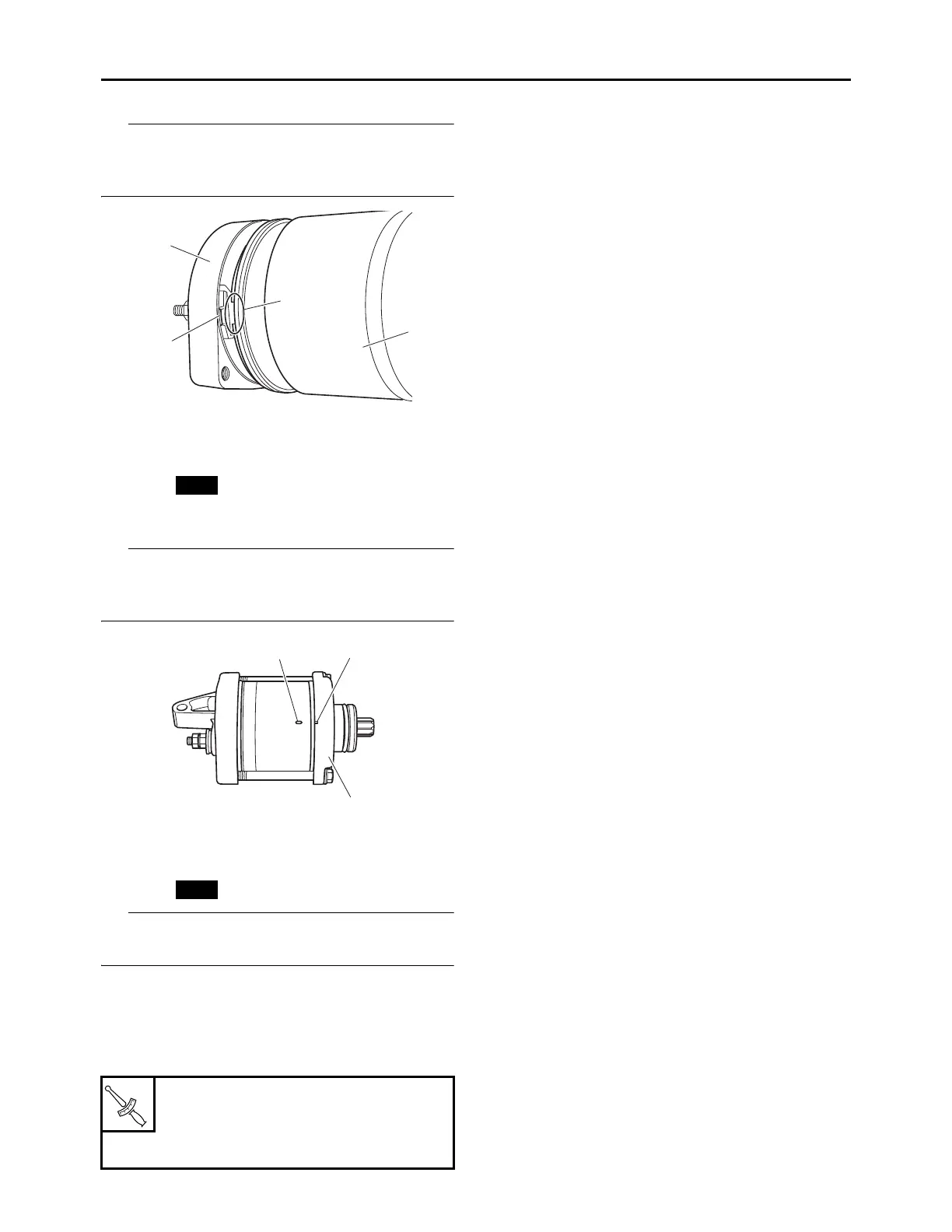

Install the starter motor rear cover with its projec-
tion “a” facing the groove “b” of the starter motor
yoke.
3. Install:
• Circlip
• Plain washer
• O-ring
• Washer (starter motor front cover)
• Starter motor front cover “1”
TIP
Align the match mark “a” on the starter motor
yoke with the match mark “b” on the starter mo-
tor front cover.
4. Install:
• Bolt
• O-ring
TIP
Apply the lithium-soap-based grease on the O-
ring.
5. Install:
• Starter motor
• Starter motor cover
• Starter motor bolt
• Starter motor cover bolt
Starter motor bolt
10 N·m (1.0 kgf·m, 7.4 lb·ft)
Starter motor cover bolt
10 N·m (1.0 kgf·m, 7.4 lb·ft)
a
b
2
1
New
1
ab
New
