12. Electrical System
171
12. Electrical System

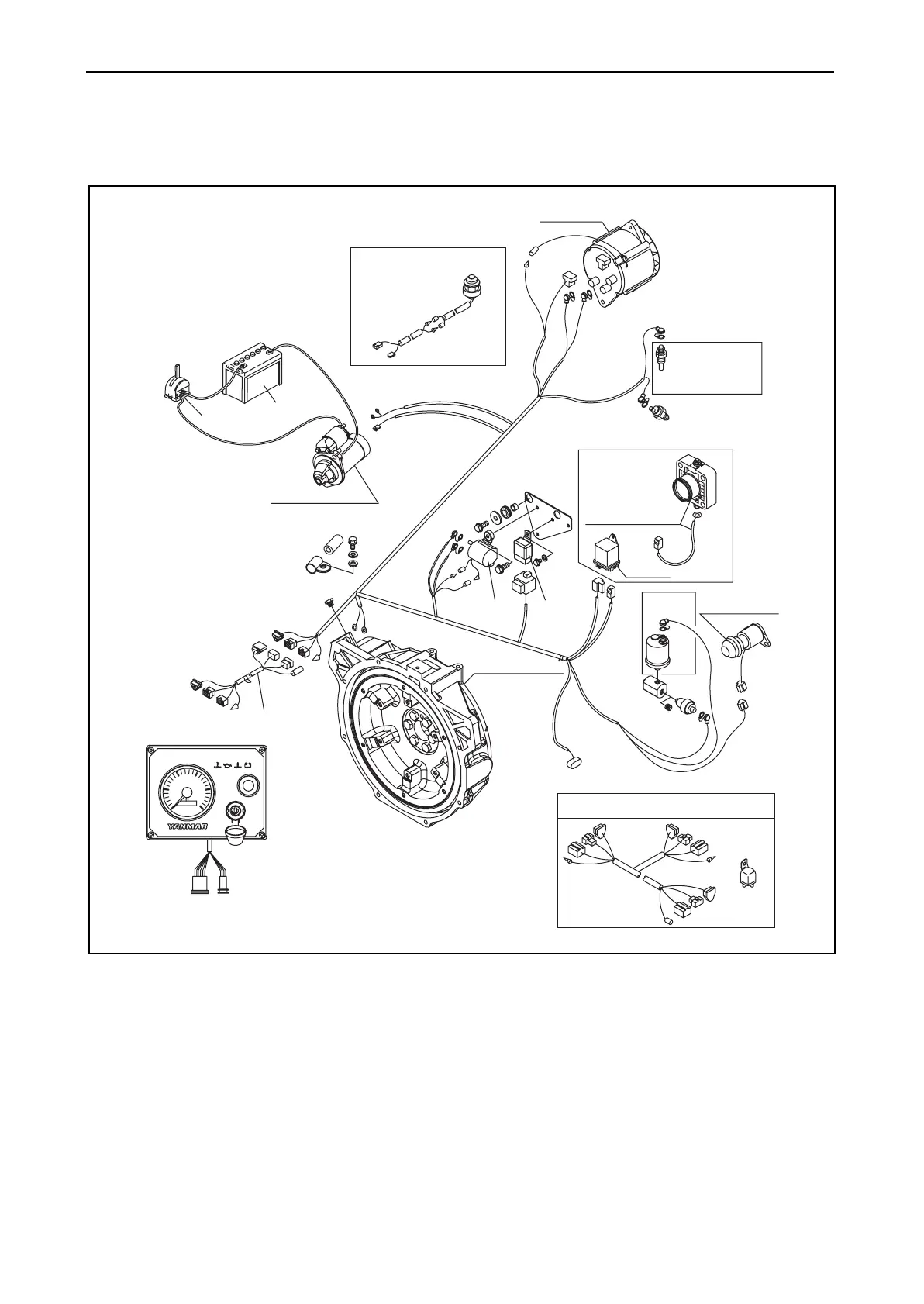

12.1 Electrical System
Neutral safety switch
2 place expression (optional)
Sail drive
Flywheel housing
Starting motor
Optional
Starter S terminal
Starter B terminal
(Fitting to
marine gear)
Battery switch
Battery
STOP
START
ON
OFF
20 30
4010
500
GLOW
Alternator
Optional
Optional
Optional
Air heater
(Intake manifold)
C.W. temp. sensor
C.W. temp. switch
Relay
Stop solenoid
Earth bolt
Extension wire harness
Magnetic relay Safety relay
