12. Electrical System
187
12.7.2 Sender unit for lube oil pressure
gauge
The sender unit for the lube oil pressure gauge has a
mounting seat for mounting on the lube oil filter bracket.
Oil pressure is measured when the oil enters into the
main gallery after being fed from the lube oil cooler and
passing through the oil pressure control valve Be sure
to mount a vibration damper when mounting the oil
pressure sender unit.

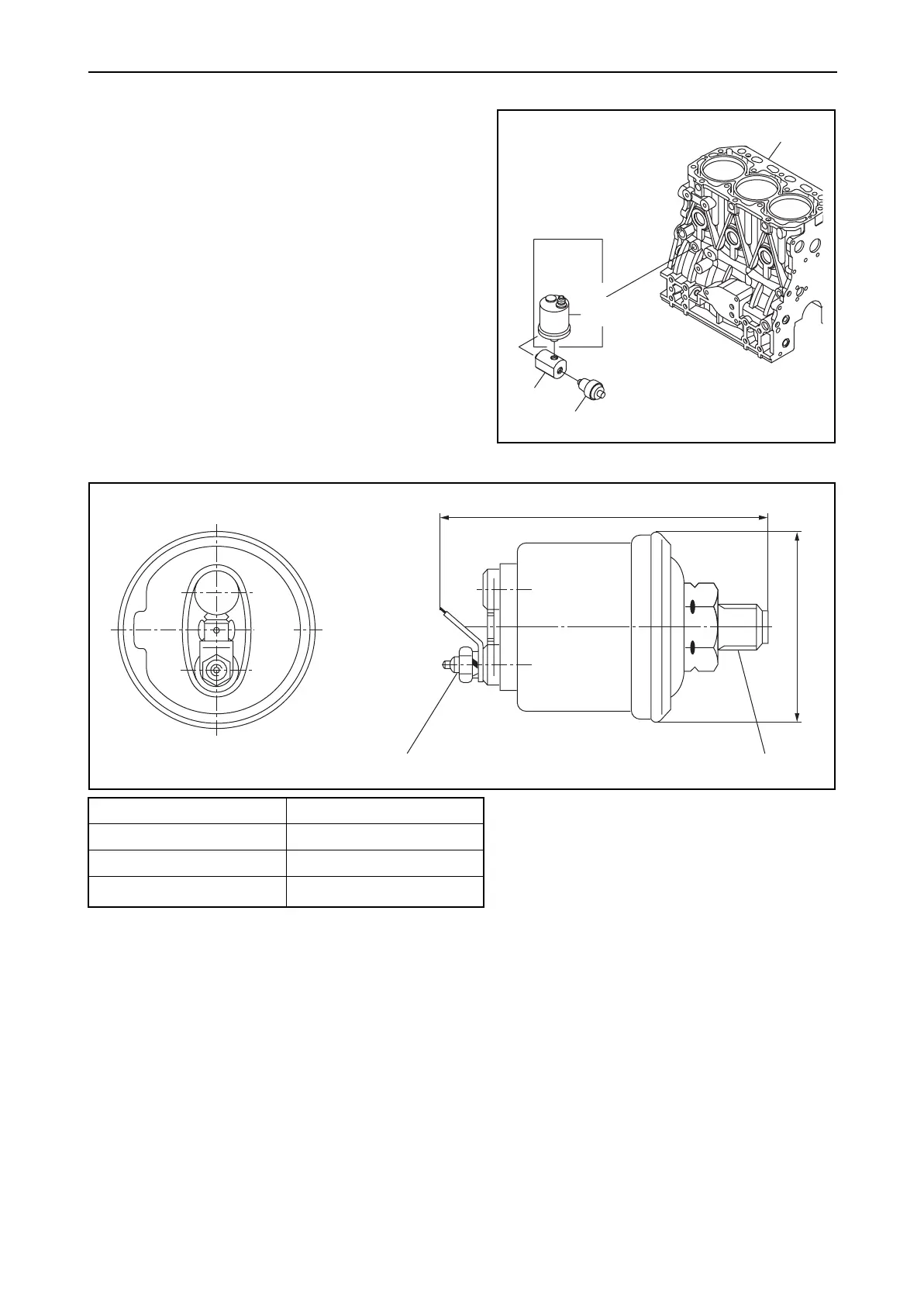

Lube oil pressure sender unit
Part code No. 119773-91650
Type Resistance switch
Rated voltage DC 12V
Max. operating pressure
0.98MPa(10kgf/cm
2
)
Cylinder block
OPTIONAL
Oil pressure
sender
Damper
Oil pressure switch
VDO
Made in
Germany
77
46
M4
ISO R1/8 Tape
