4. Disassembly and Reassembly
78
(22) Turning the engine over
1) Place a wood block of appropriate size on the floor,
and stand up the engine on the flywheel housing.
2) Remove the engine mounting feet.
(23) Removing the crankshaft V-pulley
Loosen the bolt tightening the crankshaft V-pulley and
remove the crankshaft V-pulley with an extraction tool.
(24) Removing the oil pan
Remove the oil pan and spacer..
(25) Removing the lube oil inlet pipe
Remove the lube oil inlet pipe and gasket.
(26) Removing the gear case
Loosen the gear case bolts, and remove the gear case
from the gear case flange.
(27) Removing the lube oil pump
Remove the lube oil pump from the gear case.

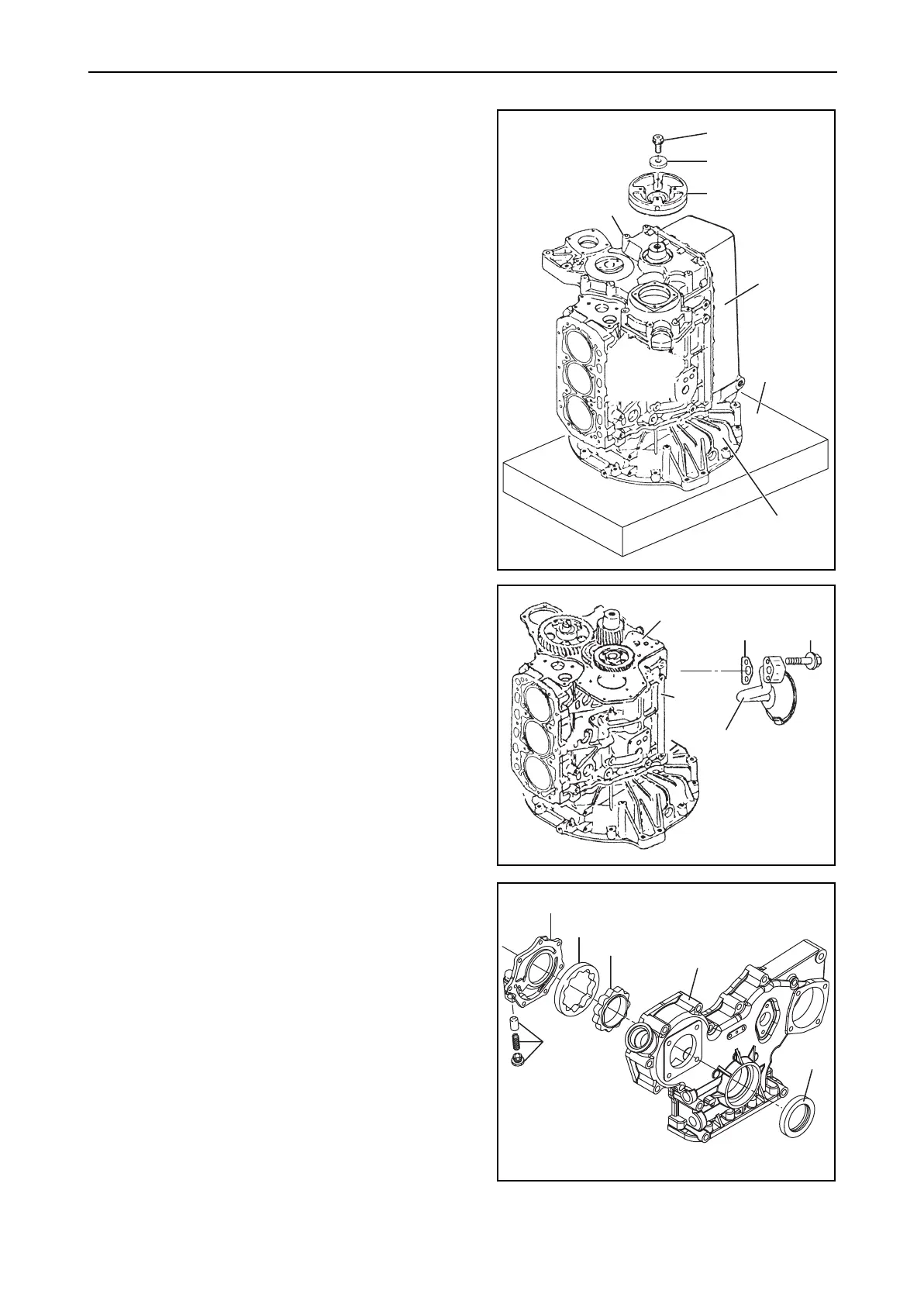

Bolt
