COMPONENT
IDENTIFICATION
Service Side - 3JH4E

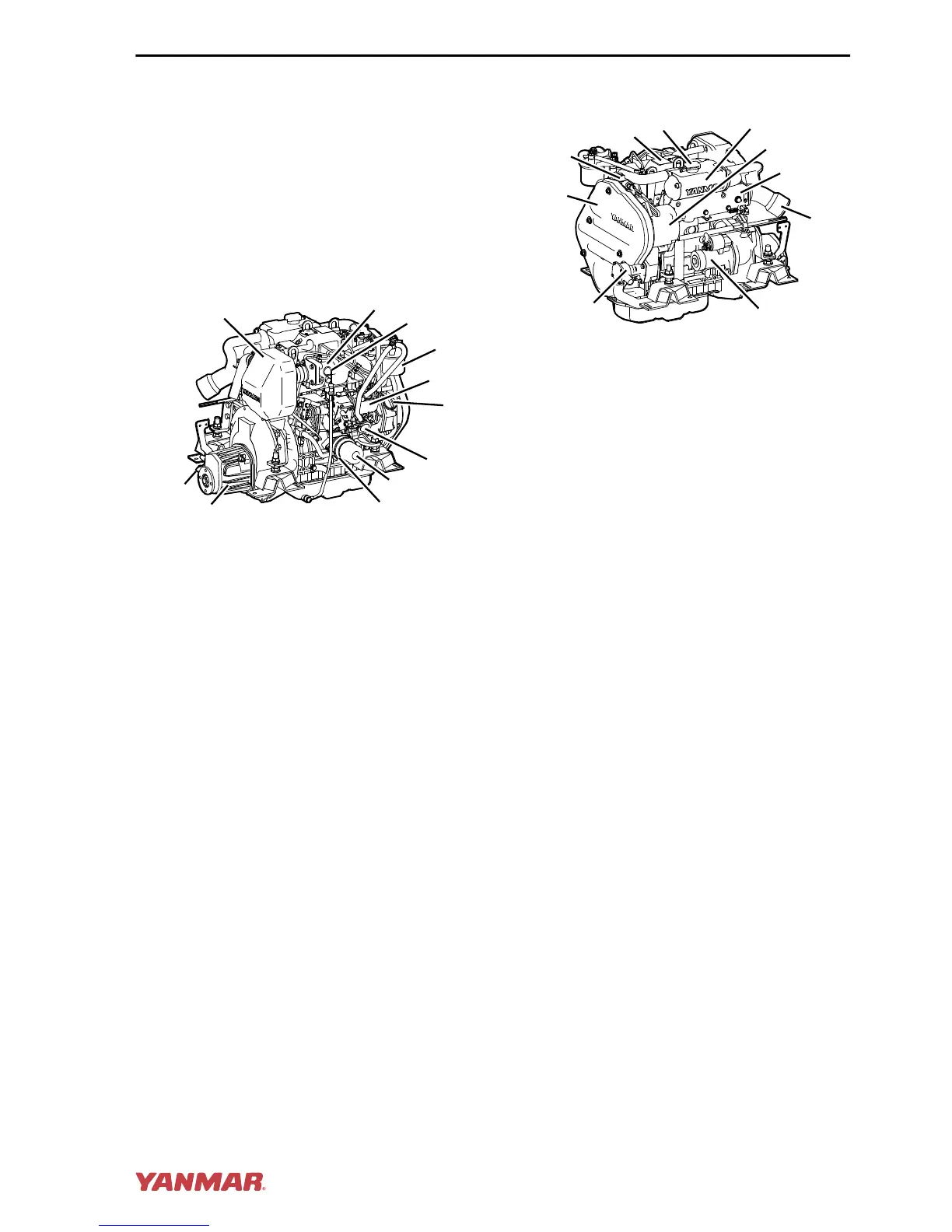

Figure 1 and Figure 2 illustrate a typical
version of a 3JH4E engine. Your engine may
have different equipment from that
illustrated.
(1)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(2)
(3)
0004543
Figure 1
1 – Intake Silencer (Air Cleaner)
2 – Shift Lever
3 – Marine Gear
4 – Oil Cooler
5 – Engine Oil Filter
6 – Fuel Feed Pump
7 – Engine Oil Filler Cap
8 – Fuel Injection Pump
9 – Fuel Filter
10 – Engine Oil Dipstick
11 – Intake Manifold
Non-Service Side - 3JH4E
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
0004544
Figure 2
1 – Coolant Filler Cap
2 – Engine Nameplate (on rocker arm
cover)
3 – Fresh Water Pump
4 – Belt Cover
5 – Seawater Pump
6 – Starter Motor
7 – Mixing Elbow
8 – Exhaust Manifold
9 – Alternator
10 – Coolant Tank / Heat Exchanger
PRODUCT OVERVIEW
JH4 Series Operation Manual 15
