CONTROL EQUIPMENT
The equipment in the control room makes remote control operation possible. It consists of
the instrument panel, which is connected to the engine by a wire harness, and the remote
control handle, which is connected by control cables to the engine control lever and marine
gear.
Instrument Panel (Optional)
Equipment and Functions
The instrument panel is located in the cockpit. The following instruments enable you to start
or stop the engine and to monitor its condition during operation.

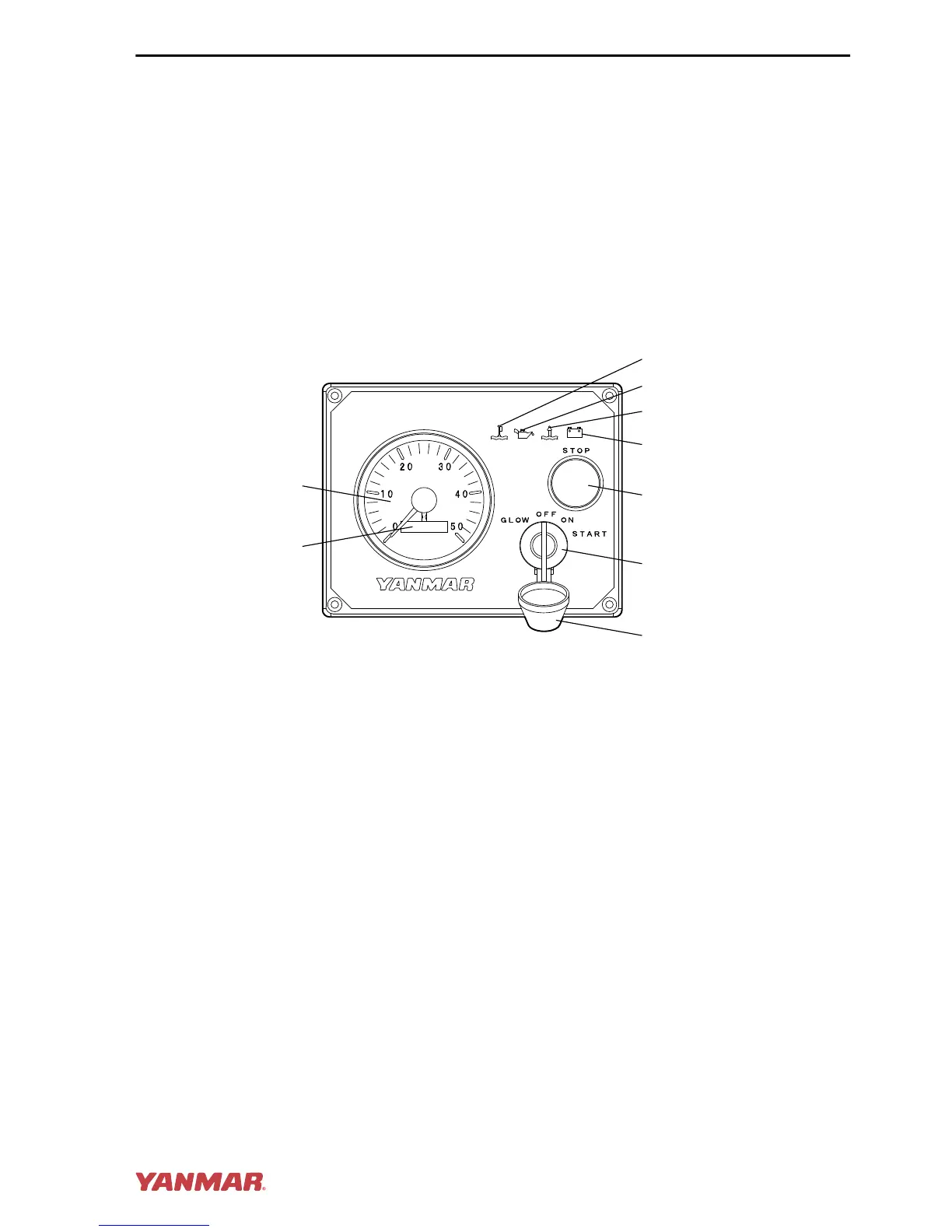

B-Type
0004486
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
Figure 13
1 – Tachometer
2 – Hourmeter
3 – Moisture Cap for Key Switch
4 – Key Switch
5 – Stop Button
6 – Battery Low Charge Indicator
7 – Water in Sail Drive Seal Indicator
8 – Engine Oil Low Pressure Indicator
9 – Coolant High Temperature Indicator
PRODUCT OVERVIEW
JH4 Series Operation Manual 21
