Checking Marine Gear Oil
(1)
(2)
(3)
(4)
0004491

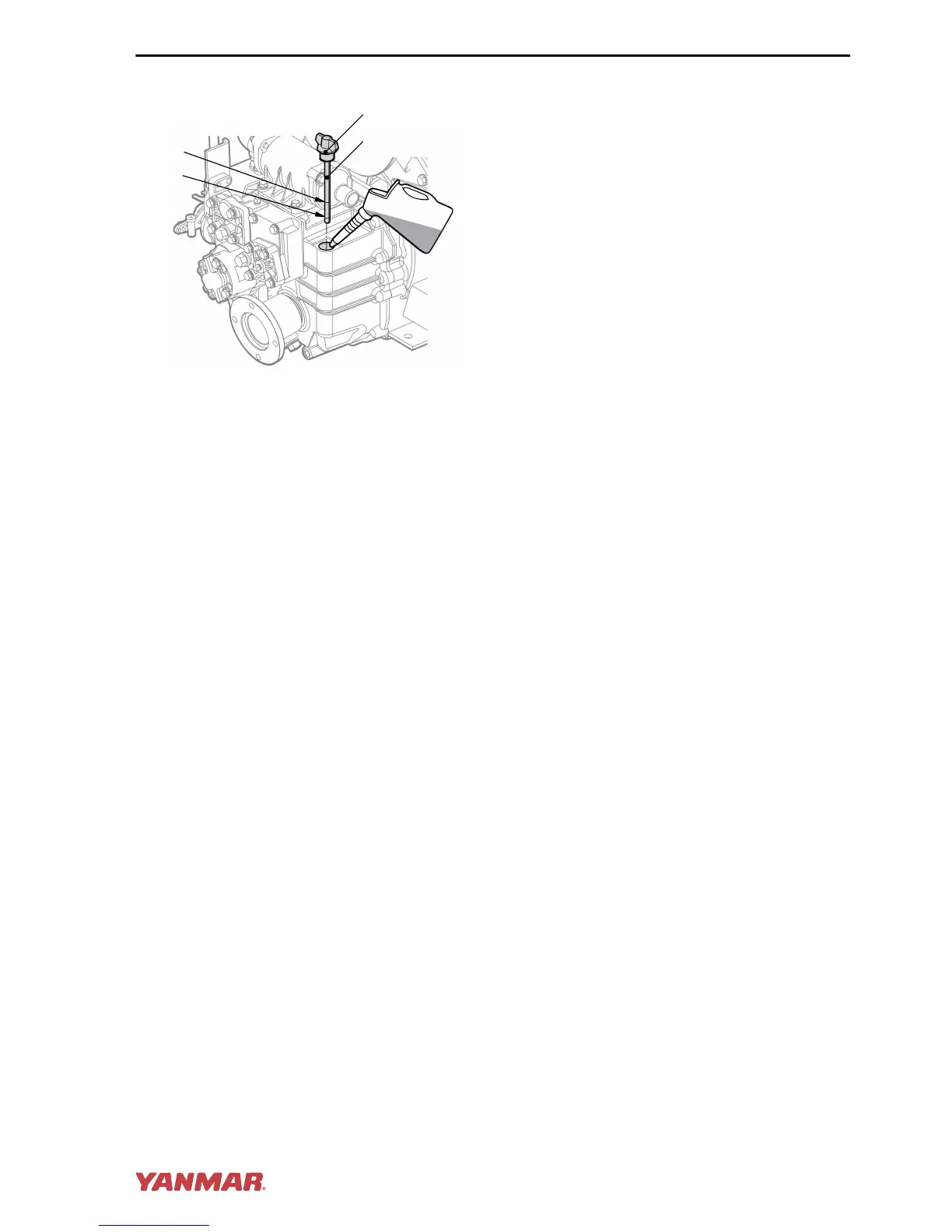

Figure 10
Note: 4JH4-TE with KMH4A marine gear
shown.
1. Make sure engine is level.
2. Remove the filler cap (Figure 10, (1))
at the top of the housing.
3. Remove dipstick (Figure 10, (2)) and
wipe with clean cloth.
4. Fully reinsert dipstick.
5. Remove dipstick. The oil level should
be between upper (Figure 10, (3)) and
lower (Figure 10, (4)) lines on the
dipstick.
6. Fully reinsert dipstick.
Adding Marine Gear Oil
1. Make sure the engine is level.
2. Remove the filler cap at the top of the
housing (Figure 10, (1)).
3. Fill with oil to the upper limit on the
dipstick (Figure 10, (3)). See Marine
Gear Oil Specifications on page 34.
NOTICE: NEVER overfill the marine
gear with oil.
4. Fully reinsert dipstick.
5. Tighten the filler port cap by hand.
Checking and Adding Sail Drive
Oil
Refer to the operation manual for SD50-T for
the procedure to check and fill the sail drive
oil.
BEFORE YOU OPERATE
JH4 Series Operation Manual 35
