Service Side - 4JH4-TE

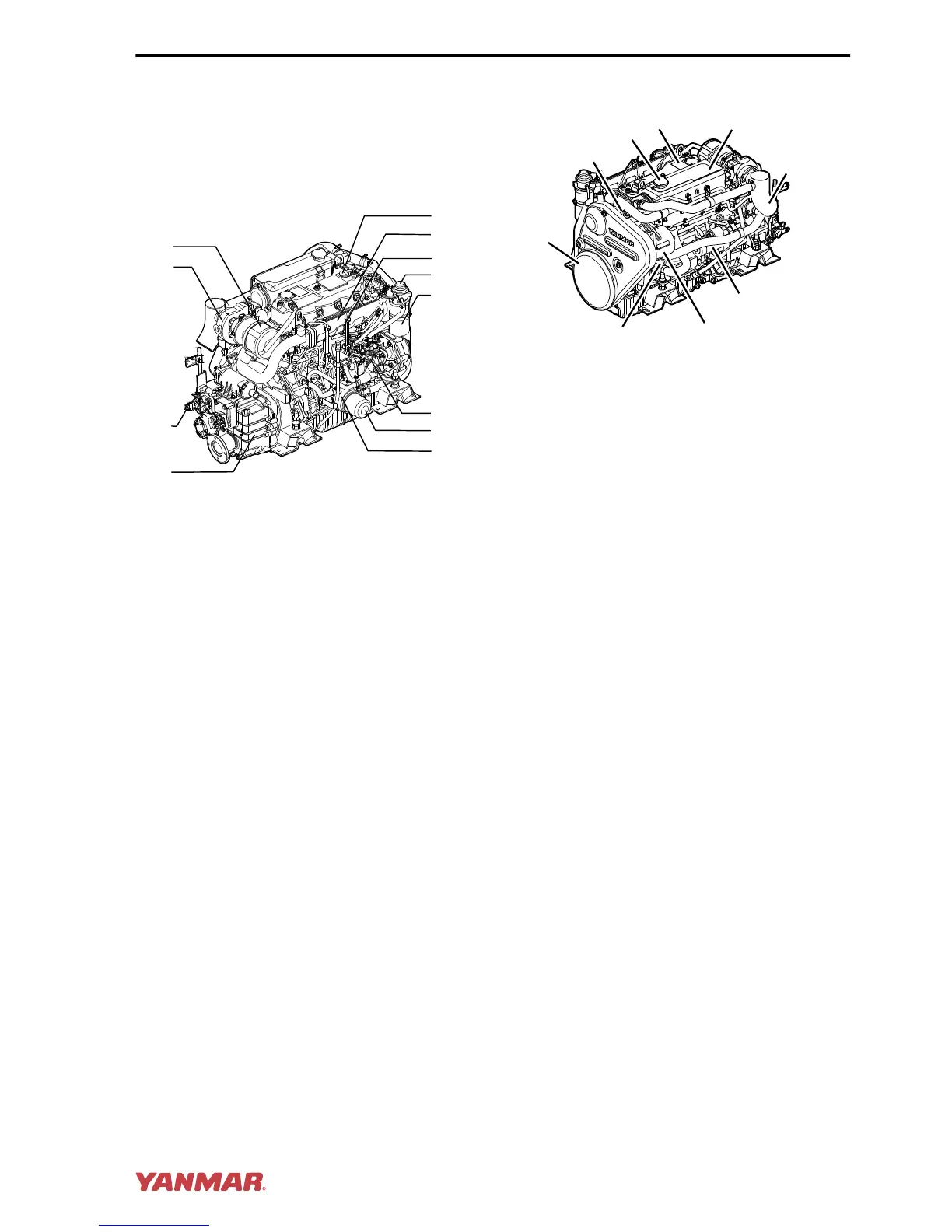

Figure 5 and Figure 6 illustrate a typical
version of a 4JH4-TE engine. Your engine
may have different equipment from that
illustrated.
(12)
(11)
(9)
(10)
(8)
(7)
(6)
(5)
(4)
(3)
(2)
(1)
0004516
Figure 5
1 – Intake Silencer (Air Cleaner)
2 – Turbocharger
3 – Shift Lever
4 – Marine Gear (KMH4A shown)
5 – Engine Oil Cooler
6 – Engine Oil Filter
7 – Fuel Injection Pump
8 – Fuel Filter
9 – Fuel Priming Pump
10 – Engine Oil Dipstick
11 – Intake Manifold
12 – Engine Oil Filler Cap
Non-Service Side - 4JH4-TE
(1)
(2)
(3)
(9)
(6)
(8)
(7)
(5)
(4)
0004547
Figure 6
1 – Engine Nameplate (on rocker arm
cover)
2 – Coolant Filler Cap
3 – Fresh Water Pump
4 – Belt Cover
5 – Seawater Pump
6 – Alternator
7 – Starter Motor
8 – Exhaust / Water Mixing Elbow
9 – Coolant Tank / Heat Exchanger
PRODUCT OVERVIEW
JH4 Series Operation Manual 17
