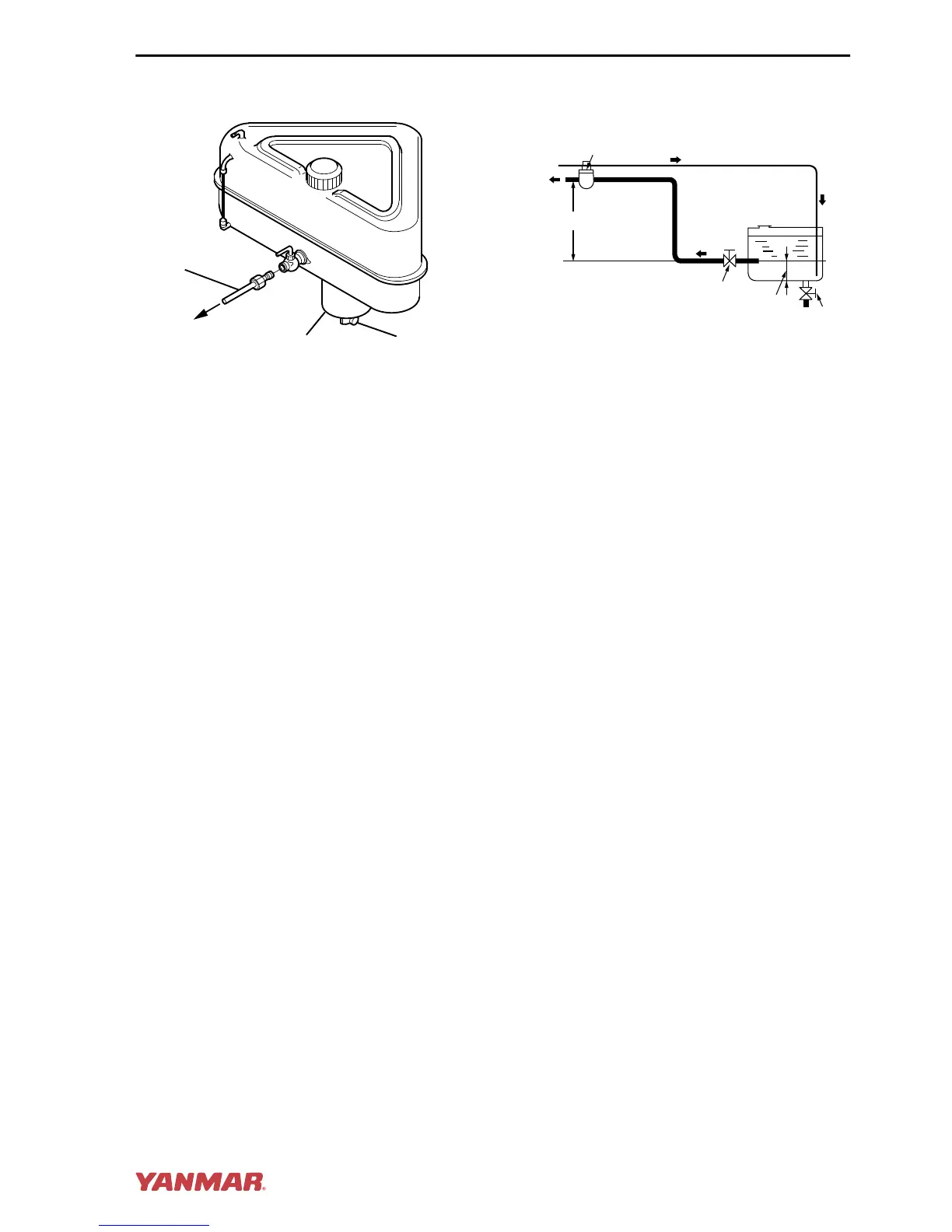

Fuel Tank (Optional)
0004542
(3)
(4)
(1)
(2)
Figure 2
1 – Sediment Bowl
2 – Drain Cock
3 – To Engine
4 – Fuel Line
Install a drain cock (Figure 2, (2)) at the
bottom of the fuel tank to remove water and
contaminants from the sediment bowl
(Figure 2, (1)).
The fuel outlet should be positioned 20 - 30
mm (0.75 - 1.125 in.) above the bottom of
the tank so that only clean fuel is distributed
to the engine.
Fuel System - 3JH4E, 4JH4-TE and
4JH4-HTE
0004489
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
Figure 3
1 – Fuel Filter
2 – To Fuel Injection Pump
3 – Less than 500 mm (20.0 in.)
4 – Fuel Cock
5 – 20 - 30 mm (0.75 - 1.125 in.)
approximate
6 – Drain Cock
7 – Fuel Tank
8 – Fuel Return Line
Install the fuel line from the fuel tank to the
fuel injection pump as shown in Figure 3.
The recommended fuel / water separator
(optional) is installed at the center section of
that line.
BEFORE YOU OPERATE
JH4 Series Operation Manual 29
