4JH4AE
0004569
(3)
(4)
(5)
(6)
(1)
(2)

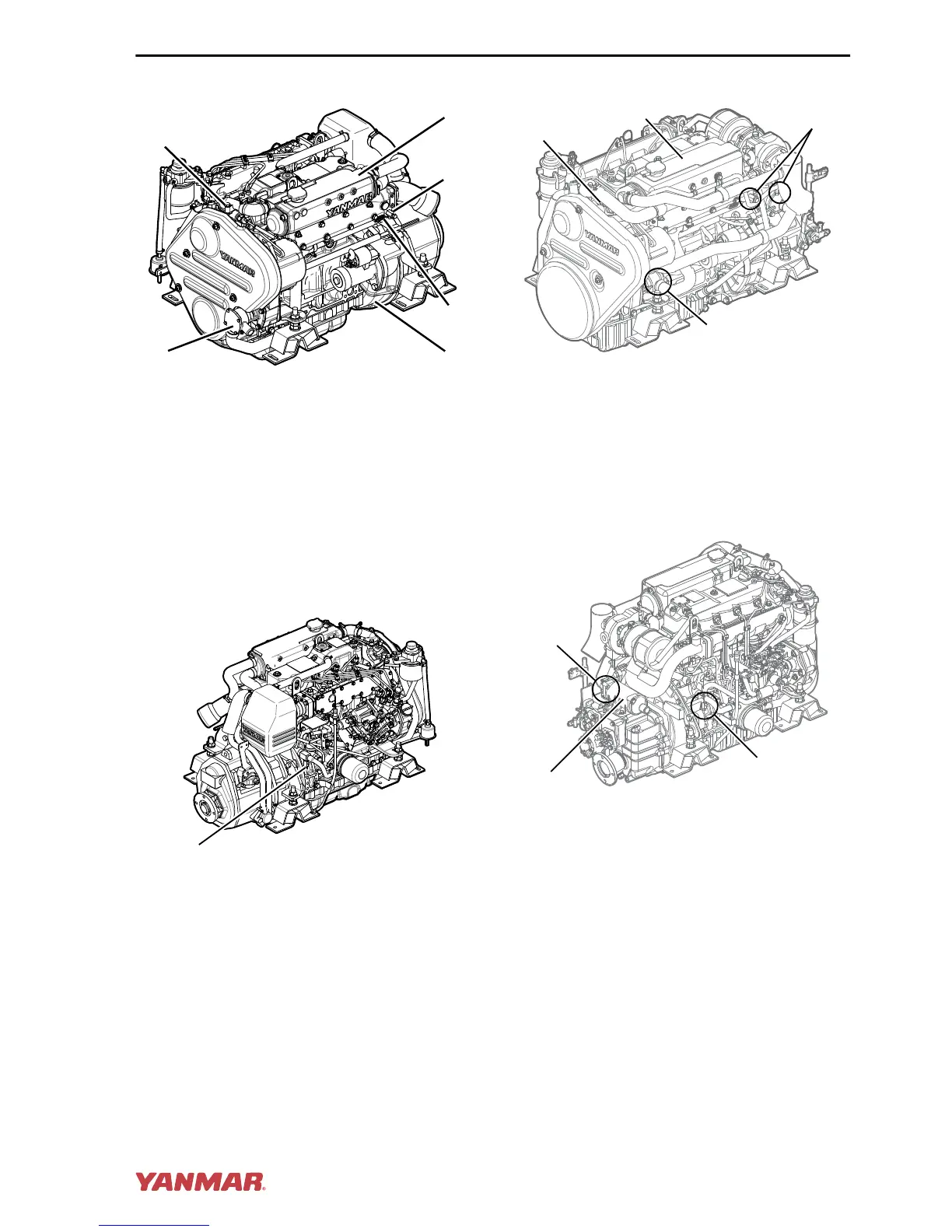

Figure 13
1 – Coolant Pump (Fresh Water)
2 – Seawater Drain from Seawater
Pump Cover
3 – Coolant Tank (Heat Exchanger)
4 – Coolant Drain Cock
5 – Seawater Drain Cock
6 – Flywheel Housing
4JH4AE
(1)
0004558
Figure 14
1 – Coolant Drain Cock
4JH4-TE
(4)
(3)
(2)
(1)
0004514
Figure 15
1 – Coolant Tank (Heat Exchanger)
2 – Coolant Pump (Fresh Water)
3 – Seawater Drain from Seawater
Pump Cover
4 – Coolant Drain Cock (2 used)
4JH4-TE
(1)
0004559
(2)
(3)
Figure 16
1 – Coolant Drain Cock
2 – Seawater Drain Cock
3 – Marine Gear Cooler
BEFORE YOU OPERATE
JH4 Series Operation Manual 37
